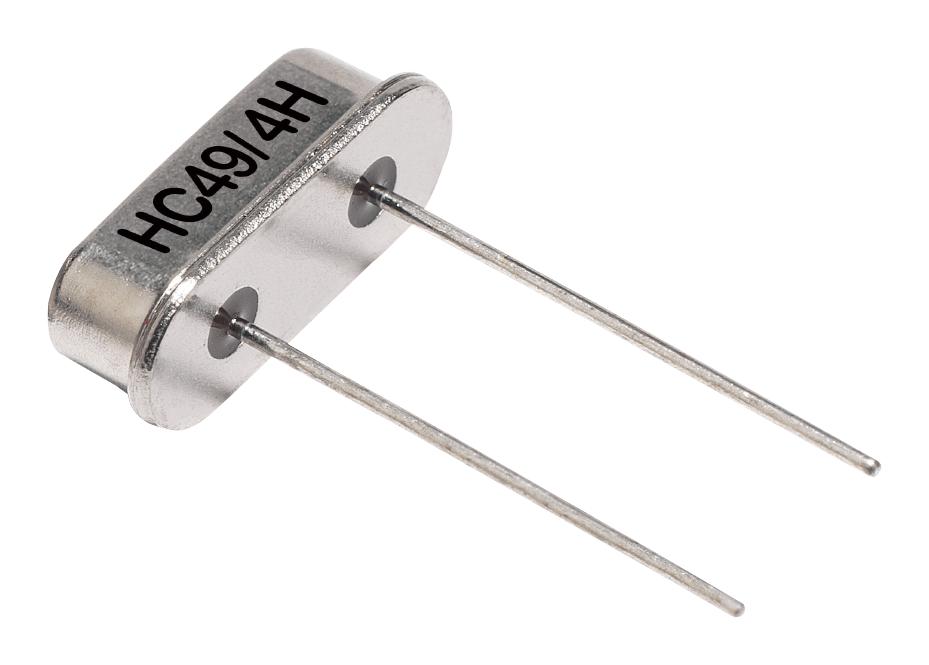

IQD-Frequency-Products LFXTAL063197 Quartz Crystal
This quartz crystal features industry-standard leaded packaging, resistance welded and hermetically sealed in an inert atmosphere with glass-to-metal seals on leads. It operates at a frequency of 25.0MHz with a tolerance of +20.00ppm and a stability of +50.00ppm, suitable for a broad temperature range from -20°C to 70°C. The crystal has a load capacitance of 18.00pF, shunt capacitance max 7pF, and a drive level of up to 500uW. Designed for reliable performance, it’s packaged on a reel of 1,000 units, compliant with RoHS, REACh, and JDEC standards, ensuring suitability for industrial and electronic applications.
IQD-Frequency-Products LFXTAL063197 Quartz Crystal Specifications:
- Frequency: 25.0MHz
- Frequency Tolerance: +20.00ppm
- Frequency Stability: +50.00ppm
- Operating Temperature Range: -20°C to 70°C
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500uW max
- ESR: 40.000 max
- Storage Temperature Range: -55 to 125°C
- Shock Resistance: 981m/s², 6ms, in three mutually perpendicular planes
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz, 98.1m/s², 30mins in three mutually perpendicular planes
- Pack Style: Reel
- Pack Size: 1,000 units
- Packaging: Tape & reel according to ElA-468-C
- Outline Dimensions: Max 4mm, B min 12.7mm, y max 11.05mm
- RoHS Compliant
- REACH Compliant
- MSL Rating: Not Applicable
Buy the Quartz Crystal 25.0MHz – Reliable Oscillator for Industrial Applications
Upgrade your electronic devices with our high-precision quartz crystal designed for durability and stability. With a 25.0MHz frequency, +20.00ppm tolerance, and a stable operating temperature range, it ensures reliable performance even in demanding applications. Packaged on a reel of 1000 units, this crystal meets all RoHS, REACh, and JDEC standards for quality assurance. Perfect for industrial use and electronics manufacturing, it offers excellent shock and vibration resistance, making it a versatile choice for engineers and technicians seeking dependable components.
Get IQD Frequency Products quartz crystal 25.0MHz today—built for precision and long-lasting durability in industrial environments.
