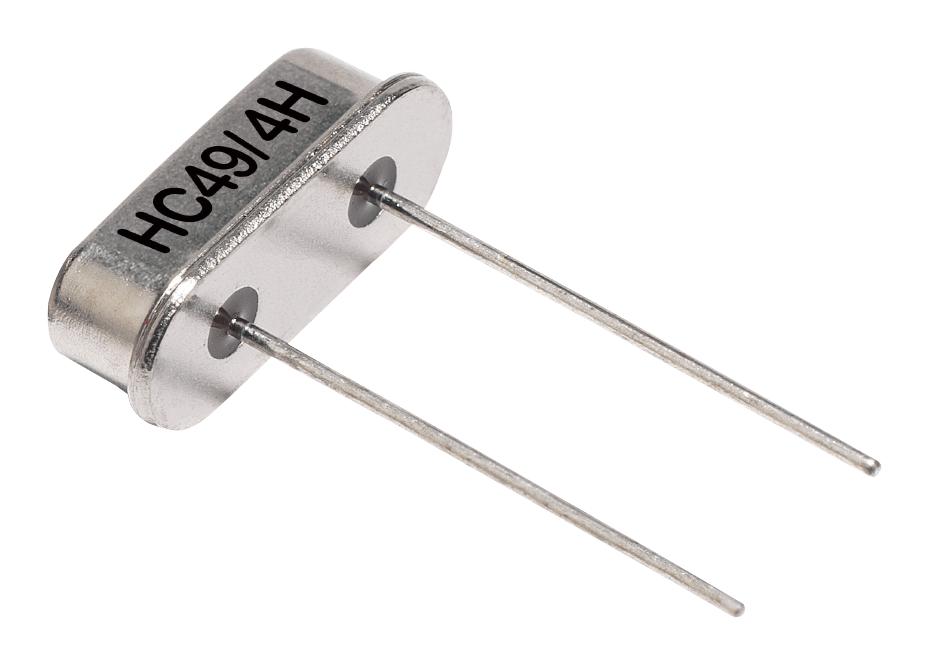

IQD FREQUENCY PRODUCTS LFXTAL063944 Quartz Crystal
This quartz crystal features an industry-standard leaded package, hermetically sealed in an inert atmosphere with glass to metal seals on leads. It operates at 24.0MHz with a frequency tolerance of +20.00ppm and stability of +50.00ppm at 25°C. Designed for reliable use, it withstands temperatures from -20°C to 70°C with low aging effects of about 5ppm annually. Suitable for various electronic applications, it offers excellent environmental resilience, including shock, vibration, and wide temperature ranges, and is compliant with RoHS and REACH standards, packaged in a 1,000-piece reel.
IQD FREQUENCY PRODUCTS LFXTAL063944 Quartz Crystal Specifications:
- Frequency: 24.0MHz
- Frequency Tolerance: +20.00ppm @25°C
- Frequency Stability: +50.00ppm
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500uW max
- ESR: 40.000 max
- Operating Temperature Range: -20°C to 70°C
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 981m/s², 6ms, 3 times in each of 3 mutually perpendicular planes
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz, 98.1m/s², 30mins in 3 mutually perpendicular planes
- Size Outline: Max 4mm, B min 12.7mm, y max 11.05mm
- Packaging: Reel, 1,000 pieces, compliant with EIA-468-C, RoHS and REACh compliant
- Mounting: Hermetically sealed, glass to metal seal on leads
Buy the IQD Series Quartz Crystal: LFXTAL063944
Secure your electronic projects with IQD quartz crystal LFXTAL063944. Its hermetically sealed design ensures reliable performance across wide temperature ranges and challenging environmental conditions. Packaged in a 1,000-piece reel, this 24MHz crystal offers exceptional frequency tolerance and stability, ideal for precision timing applications. Easy to integrate, RoHS and REACh compliant, it guarantees durability and high-quality operation. Purchase online today to enhance your device’s performance and ensure long-term reliability in demanding industrial and consumer electronics.
Buy IQD quartz crystal LFXTAL063944 now and experience unmatched reliability and precise frequency stability for your high-performance electronic circuits.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL063944?
You can click on the BUY or RFQ button to purchase LFXTAL063944 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL063944?
You can download the LFXTAL063944 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL063944?
IQD FREQUENCY PRODUCTS
