IQD-Frequency-Products LFXTAL063945 Quartz Crystal

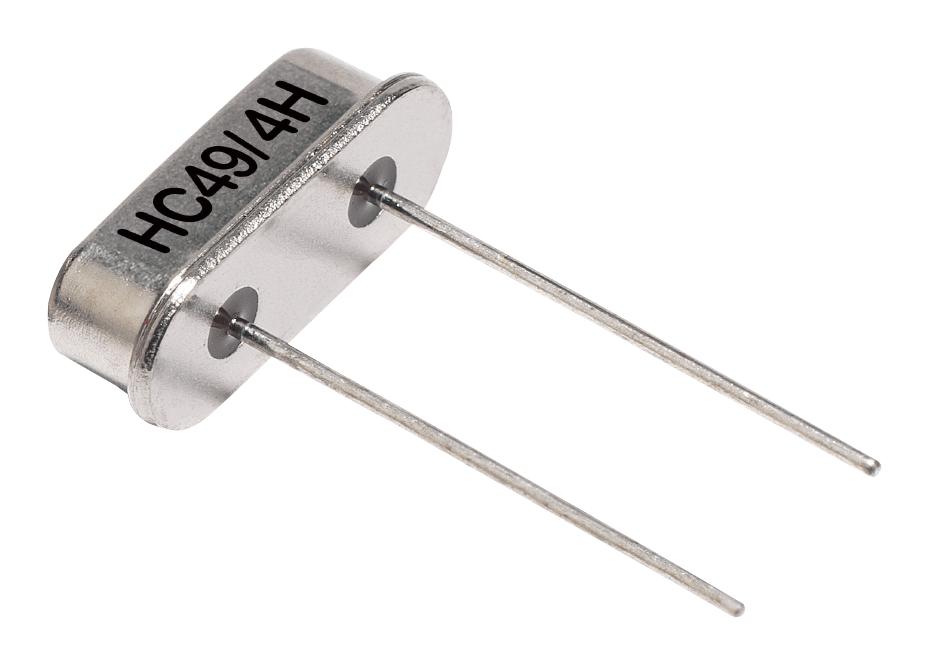

This quartz crystal features an industry-standard leaded package, hermetically sealed in an inert atmosphere with glass-to-metal seals on leads. It operates at a frequency of 27.0MHz with a tolerance of +20.00ppm and stability of +50.00ppm at 25°C. Designed for reliable use in various electronic applications, it withstands temperatures from -20°C to 70°C, with a maximum drive level of 500uW. The crystal offers a long service life with minimal aging and complies with RoHS and REACh standards, making it suitable for precision timing and control systems.
IQD-Frequency-Products LFXTAL063945 Quartz Crystal Specifications:
- Frequency: 27.0MHz
- Frequency Tolerance: +20.00ppm
- Frequency Stability: +50.00ppm @ 25°C
- Operating Temperature Range: -20°C to 70°C
- Load Capacitance: 18.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 500uW max
- ESR: 40.000 max
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 981m/s², 6ms in 3 planes
- Vibration Resistance: 10Hz-60Hz, 0.75mm amplitude; 60Hz-500Hz, 98.1m/s² for 30 mins
- Packaging: Reel, size 1,000 units, compliant with EIA-468-C
- RoHS and REACh compliant
- MSL Rating: Not applicable
Buy the Buy IQD Frequency Products Quartz Crystal Part Number LFXTAL063945 Online
Purchase the high-performance quartz crystal LFXTAL063945 online for reliable frequency stability at 27.0MHz. Suitable for industrial and electronic timing applications, it features hermetic sealing, RoHS compliance, and an operating temperature range of -20°C to 70°C. This crystal offers a load capacitance of 18pF, minimal aging, and durable glass-to-metal seals, ensuring long-term accuracy and dependability. Ideal for oscillators, communication devices, and control systems, available in reel packaging of 1,000 units for easy bulk procurement.
Get IQD Frequency Products quartz crystal LFXTAL063945 today—designed for precision timing and long-lasting durability.
Frequently Asked Questions
Where can I buy IQD-Frequency-Products LFXTAL063945?
You can click on the BUY or RFQ button to purchase LFXTAL063945 from an authorized IQD-Frequency-Products distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL063945?
You can download the LFXTAL063945 datasheet or visit the IQD-Frequency-Products website for support.
Who is the manufacturer of LFXTAL063945?
IQD-Frequency-Products
