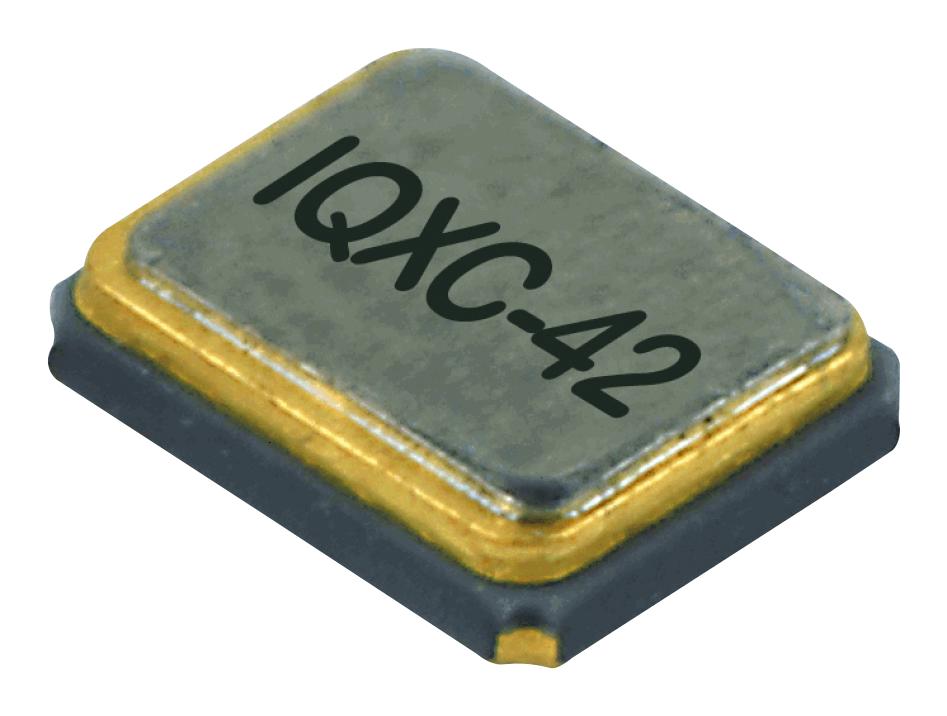

IQD FREQUENCY PRODUCTS LFXTAL066138 Hermetic Quartz Crystal
This quartz crystal oscillates at 20.0MHz with tight frequency tolerance of +20.00ppm and stability of +3ppm per year at 25°C. Encased in a hermetic ceramic package with seam-sealed metal lid, it ensures reliability in harsh environments, operating from -40°C to 85°C. Designed for surface-mount applications, it features low ESR of 120Ω maximum and load capacitance of 10pF, making it ideal for precise timing in communication and industrial systems. The crystal is RoHS compliant, tested for shock and vibration, and comes in a reel packaging suitable for automated placement.
IQD FREQUENCY PRODUCTS LFXTAL066138 Hermetic Quartz Crystal Specifications:
- Frequency: 20.0MHz
- Frequency Tolerance: +20.00ppm
- Frequency Stability: +3ppm per year @ 25°C
- Operating Temperature Range: -40°C to 85°C
- Overtone: Fundamental
- Ageing: +3ppm max per year
- Load Capacitance: 10pF
- Shunt Capacitance: 3pF max
- Drive Level: 1004W max
- ESR: 120Ω max
- Shock Resistance: IEC 60068-2-27, 1000G, 1ms, 3 times in each plane
- Vibration Resistance: IEC 60068-2-6, 1.5mm amplitude, 10Hz-55Hz, 2hrs per plane
- Storage Temperature Range: -55°C to 125°C
- Packaging: Reel, 1000 units per reel
- RoHS Status: Compliant
- REACH Status: Compliant
- MSL Rating: Not Applicable
Buy the Buy IQD Frequency Products LFXTAL066138 Part Number 1 Online
Purchase the IQD SeriesLFXTAL066138 quartz crystal online today for high-precision timing in industrial, communication, and automation systems. This 20.0MHz SMD crystal features a hermetic ceramic package with a seam-sealed metal lid, providing excellent reliability in harsh environments. Its low ESR, 10pF load capacitance, and outstanding stability make it ideal for precise frequency references. RoHS compliant and tested for shock and vibration, this reel-packaged crystal is perfect for automated assembly and demanding applications, ensuring your projects operate accurately and dependably.
Order your IQD SeriesLFXTAL066138 quartz crystal today and ensure precise timing for your high-performance projects with reliable ceramic hermetic encapsulation.
