IQD FREQUENCY PRODUCTS LFXTAL069387 Quartz Crystal

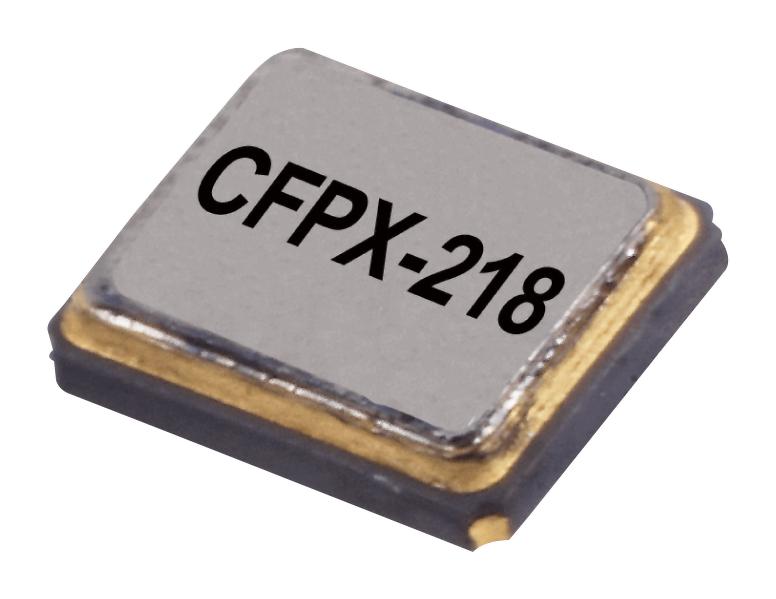

The CFPX-218 is a standard 2.5 x 2mm SMD quartz crystal housed in a hermetically sealed ceramic package with a metal lid, suitable for frequencies from 12.0 MHz to 50.0 MHz. It features low aging, with a maximum of 3ppm per year, and offers various stability and temperature options ranging from -40°C to 85°C. Designed for high reliability, it complies with RoHS and REACh standards, and withstands mechanical drops of 100cm. Ideal for precise frequency control in electronic applications.
IQD FREQUENCY PRODUCTS LFXTAL069387 Quartz Crystal Specifications:
- Frequency Range: 12.0MHz to 50.0MHz
- Tolerance: +10.00ppm to -50.00ppm at 25°C
- Stability: +10.00ppm to +100.00ppm over temperature
- Aging: Max 3ppm per year at 25°C
- Package: 2.5 x 2mm hermetic ceramic with metal lid
- Temperature Range: -40°C to 85°C
- Storage Temperature: -55°C to 125°C
- Vibration Resistance: MIL-STD-883F, Method 2007.3, 20Hz-2000Hz, 1.52mm amplitude
- Drop Test: 100cm onto hard wood three times
- Drive Level: Max 100uW, Load Capacitance: 8.0pF to 30.0pF
- RoHS and REACh Compliant
- Packaging: Reel, bulk, or tape; in accordance with EIA-481-D
Buy the IQD Series CFPX Quartz Crystal: 12-50MHz, 2.5x2mm, CFPX-218
Experience the reliability and precision of the IQD CFPX-218 quartz crystal, designed for high-performance timing in electronic circuits. Encased in a hermetically sealed ceramic package measuring 2.5x2mm, it supports frequencies from 12.0MHz to 50.0MHz with excellent stability and minimal aging of 3ppm per year. Suitable for temperature ranges from -40°C to 85°C, it withstands mechanical shocks and vibrations, ensuring long-term durability. Perfect for designers seeking high accuracy and environmental resilience in their electronic devices.
Get IQD CFPX-218 today—built for precision, low aging, and durable hermetic sealing in high-reliability electronic applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL069387?
You can click on the BUY or RFQ button to purchase LFXTAL069387 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL069387?
You can download the LFXTAL069387 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL069387?
IQD FREQUENCY PRODUCTS
