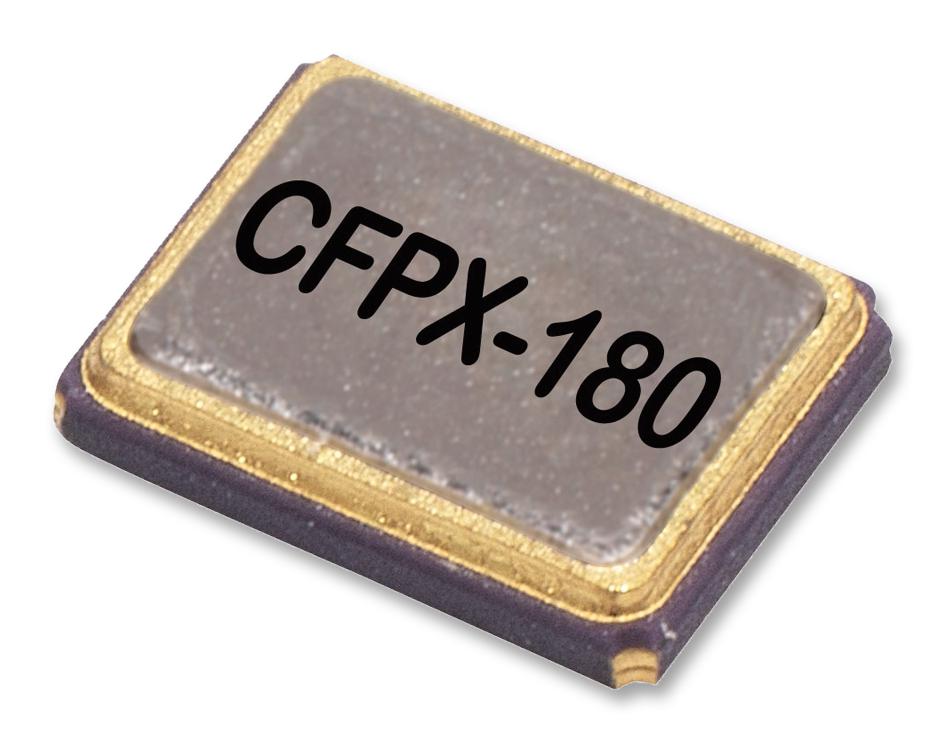

IQD FREQUENCY PRODUCTS LFXTAL070065 Quartz Crystal
This quartz crystal features a 24.0MHz frequency with an exceptional accuracy of ±10ppm, making it suitable for high-precision timing applications. Encased in a 3.2 x 2.5mm hermetically sealed SMD ceramic package, it offers excellent environmental resilience, including operating temperature from -40°C to 85°C, and compliance with RoHS standards. It boasts a low ESR of 50 ohms and a drive level of 1004W, ensuring stable performance in various electronic devices. Suitable for use in a range of industrial and communication systems, this crystal ensures reliable operation in challenging conditions.
IQD FREQUENCY PRODUCTS LFXTAL070065 Quartz Crystal Specifications:
- Frequency: 24.0MHz
- Frequency Tolerance: ±10.00ppm @25°C
- Frequency Stability: ±15.00ppm over temperature -40°C to 85°C
- Operating Temperature Range: -40°C to 85°C
- Overtone Order: Fundamental
- Ageing: +5ppm max per year @ 25°C
- Load Capacitance (CL): 9.00pF
- Shunt Capacitance (CO): 7pF max
- Drive Level: 1004W max
- ESR: 50.000 ohms max
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 1000G, 0.5ms
- Vibration Resistance: 20G, 10Hz-2000Hz, 12hrs
- RoHS Compliance: Yes
- Reflow Temp: 260°C for 10s
- Packaging: Reel, Pack Size: 1000 units
- Outline (mm): 3.2 x 2.5
- Solder Pad Layout: Bottom side connection, GND & Lid
Buy the ElaD Series Quartz Crystal: 24MHz LFXTAL070065
Purchase the ElaD quartz crystal model LFXTAL070065 online today to ensure your electronic projects integrate reliable and precise timing components. This 24MHz SMD crystal offers excellent frequency tolerance of ±10ppm, making it ideal for high-accuracy applications such as communication, industrial automation, and timing modules. Encased in a hermetic ceramic package with RoHS compliance, it guarantees durability and stable performance across a broad temperature range from -40°C to 85°C. Enjoy fast, hassle-free online ordering and get your components delivered quickly to meet project deadlines.
Buy ElaD quartz crystal model LFXTAL070065 now and experience unmatched stability and reliability in your high-precision electronic designs.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL070065?
You can click on the BUY or RFQ button to purchase LFXTAL070065 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL070065?
You can download the LFXTAL070065 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL070065?
IQD FREQUENCY PRODUCTS
