IQD FREQUENCY PRODUCTS LFXTAL073264 SMD Crystal Oscillator

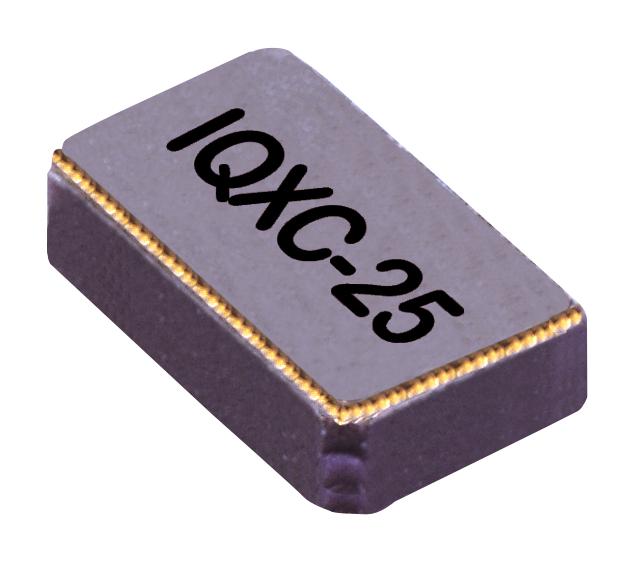

This is a 2.0 x 1.2mm SMD crystal in a hermetically sealed ceramic package with an electron beam sealed metal lid, suitable for real-time clock applications. It operates at 32.7680kHz with a frequency tolerance of +20.00ppm at 25°C, and features a stable temperature range from -40°C to 85°C. The crystal exhibits minimal aging, with a maximum of +3ppm annually, and has electrical parameters such as load capacitance of 4.00pF. Designed for precision timing in electronic devices, it complies with RoHS and REACh standards, with maximum reflow temperature of 260°C for 5 seconds.
IQD FREQUENCY PRODUCTS LFXTAL073264 SMD Crystal Oscillator Specifications:
- Frequency: 32.7680kHz
- Tolerance: +20.00ppm at 25°C
- Operating Temperature Range: -40°C to 85°C
- Aging: Max +3ppm/year
- Drive Level: 0.1μW recommended
- Load Capacitance: 4.00pF
- Shunt Capacitance: 1.3pF typical, 1.7pF max
- ESR: Max 80k Ohms
- Maximum Reflow Temperature: 260°C for 5 seconds
- Package: Hermetic ceramic with metal lid
- RoHS & REACh Compliant
- Shock Resistance: 1000G, 1ms in each of 3 perpendicular planes
- Vibration Resistance: 1.5mm amplitude, 10Hz-55Hz, 2hrs each plane
- Reel Pack Size: 3,000 pieces, compliant with ElA-481-D
Buy the Buy High-Precision SMD Crystal Part Number LFXTAL073264 Online
Purchase the high-precision SMD crystal oscillator LFXTAL073264 online today for your electronic projects. Designed for real-time clock applications, it offers excellent frequency stability, low aging, and a hermetic ceramic package. Its small size (2.0 x 1.2mm) makes it perfect for space-constrained devices. The crystal operates efficiently over a wide temperature range, up to 85°C, with maximum reflow temperature of 260°C. Certified RoHS and REACh compliant, it's ideal for reliable, long-term performance in demanding environments.
Buy IQD Frequency Products high-stability SMD crystal LFXTAL073264 now and enhance your real-time clock designs with reliable and precise timing.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL073264?
You can click on the BUY or RFQ button to purchase LFXTAL073264 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL073264?
You can download the LFXTAL073264 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL073264?
IQD FREQUENCY PRODUCTS
