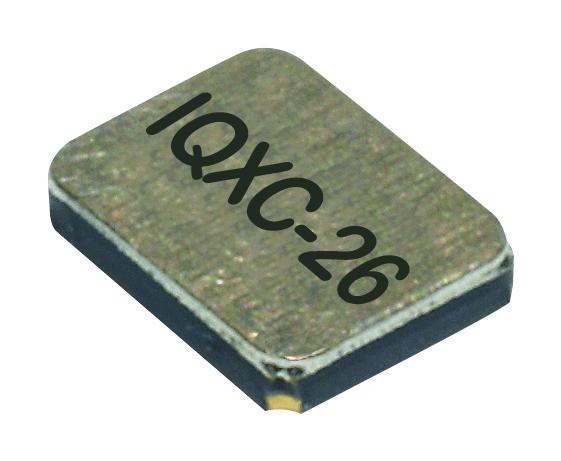

IQD FREQUENCY PRODUCTS LFXTAL081609 Quartz Crystal
This 25.0MHz hermetically sealed SMD crystal measures 1.6 x 1.2mm and is packaged in a sealed ceramic with a metal lid. It features excellent frequency stability, low aging of 5ppm annually at 25°C, and is suitable for a wide temperature range from -40°C to 85°C. With low ESR of 200Ω max and load capacitance of 8.00pF, it is ideal for high-reliability electronic applications. Compliant with RoHS and REACh standards, it is supplied in cut tape packaging for efficient surface-mount assembly in high-volume production.
IQD FREQUENCY PRODUCTS LFXTAL081609 Quartz Crystal Specifications:
- Frequency: 25.0MHz
- Frequency Tolerance: ±10.00ppm @25°C
- Frequency Stability: ±20.00ppm over -40°C to 85°C
- Operating Temperature Range: -40°C to 85°C
- Overtone Order: Fundamental
- Ageing: +5ppm max per year @ 25°C
- Load Capacitance (CL): 8.00pF
- Shunt Capacitance (CO): 7pF max
- Drive Level: 1004W max
- Equivalent Series Resistance (ESR): 200Ω max
- Storage Temperature Range: -40°C to 85°C
- Shock Resistance: IEC 60068-2-27: 1000G, 1ms, 3 planes
- Vibration Resistance: IEC 60068-2-6: 10Hz-55Hz, 1min, 3 planes, 2hrs each
- RoHS Status: Compliant
- REACH Status: Compliant
- Packaging: Cut tape, pack size 100, suitable for SMT mounting
Buy the ElaD Series Quartz Crystal: LFXTAL081609
Order the ElaD Series quartz crystal LFXTAL081609 online today and ensure your electronic devices operate with precision and stability. Designed for high-reliability applications, this 25.0MHz crystal features a hermetically sealed ceramic package with a metal lid, ensuring durability across temperature ranges from -40°C to 85°C. The low ESR of 200Ω max and load capacitance of 8.00pF contribute to stable oscillations. Suitable for surface-mount assembly, it is RoHS and REACh compliant, making it ideal for advanced manufacturing environments. Shop now for fast delivery and technical support!
Buy ElaD quartz crystal LFXTAL081609 now and experience unmatched frequency stability and reliability in your high-precision designs.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL081609?
You can click on the BUY or RFQ button to purchase LFXTAL081609 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL081609?
You can download the LFXTAL081609 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL081609?
IQD FREQUENCY PRODUCTS
