IQD FREQUENCY PRODUCTS LFXTAL081616 Quartz Crystal Oscillator

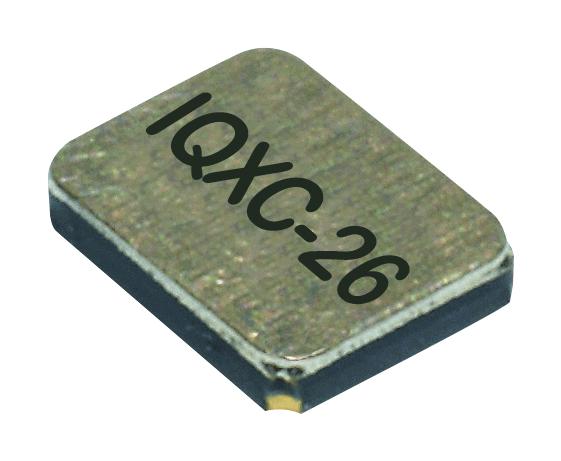

This high-quality 37.40MHz quartz crystal is a standard 1.6 x 1.2mm SMD device in a hermetically sealed ceramic package with a sealed metal lid, designed for reliable oscillation stability. It features a frequency tolerance of ±10ppm at 25°C, and a stability of ±20ppm over a temperature range of -40°C to +85°C. With a fundamental overtone, it offers excellent aging characteristics of max 5ppm per year. Electrical parameters include 8.00pF load capacitance, 7pF shunt, maximum ESR of 1004 ohms, and a drive level of 100uW, making it suitable for precise timing applications in a variety of environmental conditions.
IQD FREQUENCY PRODUCTS LFXTAL081616 Quartz Crystal Oscillator Specifications:
- Frequency: 37.40MHz
- Tolerance: ±10.00ppm @25°C
- Frequency Stability: ±20.00ppm over -40°C to 85°C
- Temperature Range: -40°C to 85°C
- Overtone: Fundamental
- Aging: Max 5ppm per year @25°C
- Load Capacitance: 8.00pF
- Shunt Capacitance: 7pF max
- Maximum ESR: 1004 ohms
- Drive Level: 100uW max
- Storage Temperature: -40°C to 85°C
- Shock Resistance: IEC 60068-2-27, 1000G, 1ms, 3 times
- Vibration Resistance: IEC 60068-2-6, 10Hz-55Hz, 1min, 3 planes, 2hrs each
- Packaging: Cutt style, reel from tape, 100 pcs per pack
- RoHS and REACh Compliant, MSL Rating: Not Applicable
Buy the ElaD LFXTAL081616 – Reliable Quartz Crystal for Industrial Applications
Order the ElaD quartz crystal oscillator LFXTAL081616 now to ensure reliable frequency stability in your industrial and electronic projects. This 37.40MHz SMD device features a hermetically sealed ceramic package for durability, with a tolerance of ±10ppm and temperature stability over -40°C to +85°C. Its fundamental overtone guarantees optimal performance, while its electrical parameters—8pF load, 7pF shunt, and maximum ESR of 1004 ohms—make it ideal for precise timing. Purchase online today for quick delivery and dependable operation in challenging environments.
Get ElaD LFXTAL081616 today—built for precision and long-lasting durability in oscillators and timing circuits.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL081616?
You can click on the BUY or RFQ button to purchase LFXTAL081616 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL081616?
You can download the LFXTAL081616 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL081616?
IQD FREQUENCY PRODUCTS
