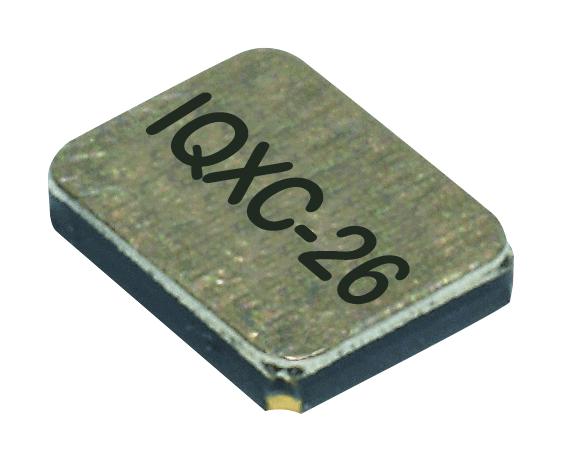

IQD FREQUENCY PRODUCTS LFXTAL081619 Quartz Crystal
The LFXTAL081619 is a 40.0MHz fundamental SMD quartz crystal in a hermetically sealed ceramic package with a metal lid, designed for high stability and reliability in electronic circuits. It features a frequency tolerance of ±10.00ppm at 25°C, temperature stability of ±20.00ppm, and an operating temperature range from -40°C to 85°C. The crystal offers load capacitance of 8.00pF, shunt capacitance of 7pF max, drive level up to 1004W, and ESR maximum of 100Ω. It complies with RoHS and REACh standards and is delivered in tape packaging for easy automation. Suitable for precise timing applications, it withstands shock and vibration per IEC standards.
IQD FREQUENCY PRODUCTS LFXTAL081619 Quartz Crystal Specifications:
- Frequency: 40.0MHz
- Frequency Tolerance: ±10.00ppm @25°C
- Frequency Stability: ±20.00ppm
- Operating Temperature Range: -40°C to 85°C
- Overtone: Fundamental
- Ageing: ±5ppm max per year @25°C
- Load Capacitance (CL): 8.00pF
- Shunt Capacitance (CO): 7pF max
- Drive Level: 1004W max
- ESR: 100Ω max
- Storage Temperature Range: -40°C to 85°C
- Shock Resistance: IEC 60068-2-27: 1000G, 1ms, 3 times in each of 3 directions
- Vibration Resistance: IEC 60068-2-6: 10Hz-55Hz, 0.5mm amplitude, 2hrs each in 3 planes
- Package Style: Cutt reel
- Pack Size: 100
- RoHS Status: Compliant
- REACH Status: Compliant
- MSL Rating: Not Applicable
- Outline Dimensions: 1.6 x 1.2mm
- Packaging: In tape, cut from reel, alternative options available
Buy the Buy Quartz Crystal Part Number LFXTAL081619 Online
Experience the reliability of the Quartz Crystal LFXTAL081619, offering 40.0MHz fundamental frequency in a hermetically sealed package. Its low aging, high temperature stability, and compliance with RoHS and REACh standards make it perfect for precise timing, oscillators, and communication devices. Delivered in easy-to-automate tape packaging, this crystal withstands shock and vibration per IEC standards, ensuring consistent performance in demanding environments. Buy online today for superior oscillation accuracy and long-term reliability for your electronic projects.
Buy Quartz Crystal LFXTAL081619 now and ensure high stability and precise frequency for your electronic applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL081619?
You can click on the BUY or RFQ button to purchase LFXTAL081619 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL081619?
You can download the LFXTAL081619 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL081619?
IQD FREQUENCY PRODUCTS
