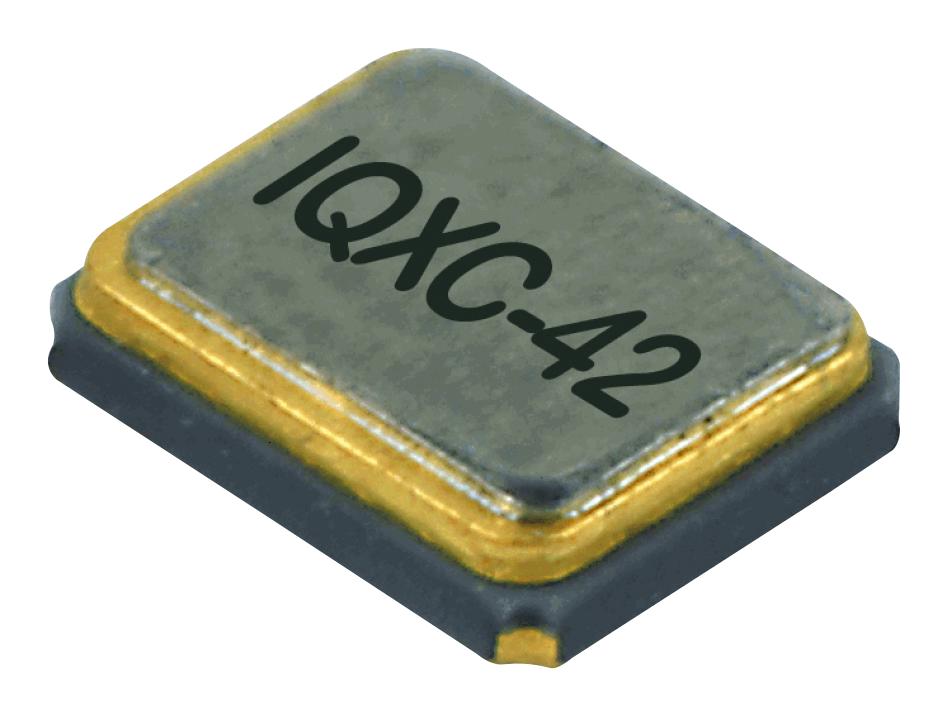

IQD FREQUENCY PRODUCTS LFXTAL081781 Crystal Oscillator
High-precision 16.0MHz crystal oscillator offering high stability and reliability for industrial, telecommunications, and electronic applications. Encased in a hermetically sealed ceramic package with a metal lid, it withstands harsh environments with operating temperatures ranging from -40°C to 85°C. Features include low load capacitance, strict frequency tolerance of ±10ppm, and environmental resistance to shock and vibration. Suitable for critical timing and synchronization tasks in industrial and communication systems, this crystal provides consistent performance with RoHS compliance, making it an ideal choice for demanding applications.
IQD FREQUENCY PRODUCTS LFXTAL081781 Crystal Oscillator Specifications:
- Frequency: 16.0MHz
- Frequency Tolerance: ±10.00ppm
- Frequency Stability: +20.00ppm
- Operating Temperature Range: -40°C to 85°C
- Overtone: Fundamental
- Ageing: +3ppm max per year @ 25°C
- Load Capacitance (CL): 8.00pF
- Shunt Capacitance (CO): 3pF max
- Drive Level: 200.00µW max
- ESR: 3Ω max
- Shock Resistance: IEC 60068-2-27: 1000G, 1ms, 3 times in each of 3 mutually perpendicular planes
- Vibration Resistance: IEC 60068, 1.5mm amplitude, 10Hz-55Hz, 1min in 3 mutually perpendicular planes for 6hrs total
- Storage Temperature Range: -55°C to 125°C
- Termination: RoHS compliant NiAu
- Reflow Temperature: 260°C for 10 seconds
- Packaging: Reel with 1000 pieces
Buy the IQD Crystal Oscillators – Reliable 16.0MHz for Industrial Applications
Purchase the IQD SeriesLFXTAL081781 16.0MHz crystal oscillator online today. Its hermetically sealed ceramic package guarantees high stability, accuracy, and durability in harsh industrial environments. Designed to meet strict RoHS standards and capable of withstanding shock and vibration, this crystal is ideal for critical timing, synchronization, and communication systems. With a wide operating temperature range from -40°C to 85°C, it ensures consistent performance across diverse applications. Order now for fast delivery and dependable quality online.
Order your IQD SeriesLFXTAL081781 crystal oscillator today and ensure your projects have reliable, precise timing in demanding industrial environments.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL081781?
You can click on the BUY or RFQ button to purchase LFXTAL081781 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL081781?
You can download the LFXTAL081781 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL081781?
IQD FREQUENCY PRODUCTS
