IQD FREQUENCY PRODUCTS LFXTAL082070 Quartz Crystal Oscillator
The LFXTAL082070 is a standard 3.2 x 2.5mm SMD quartz crystal in a hermetically sealed ceramic package with a seam sealed metal lid, designed for high reliability in electronic circuits. It operates at a frequency of 13.560MHz with a tolerance of ±10.00ppm @ 25°C, and a frequency stability of +20.00ppm over temperature. It features load capacitance of 8.00pF, shunt capacitance of 7pF max, drive level up to 1.004W, and ESR up to 120.000Ω. Suitable for applications requiring Precise Frequency References, it withstands harsh environmental conditions including temperature ranges from -40°C to 85°C, shock, and vibration resistance, and complies with RoHS, REACh standards, making it ideal for reliable operation in various electronic devices.
IQD FREQUENCY PRODUCTS LFXTAL082070 Quartz Crystal Oscillator Specifications:
- Frequency: 13.560MHz
- Frequency Tolerance: ±10.00ppm @ 25°C
- Frequency Stability: +20.00ppm over temperature
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -55°C to 125°C
- Load Capacitance (CL): 8.00pF
- Shunt Capacitance (CO): 7pF max
- Drive Level: 1.004W max
- ESR: 120.000Ω max
- Shock Resistance: 1000G, 0.5ms, 1/2 sine wave
- Vibration Resistance: 20G (10Hz-2000Hz), 12hrs in 3 planes
- Packaging: Reel, Pack Size 1,000
- Termination: NiAu, reflow temp 260°C for 10s
- Compliance: RoHS, REACh, MSL JDEC-STD-033
- Outline (mm): 34 max
- Sealing: Hermetically sealed ceramic with seam sealed metal lid

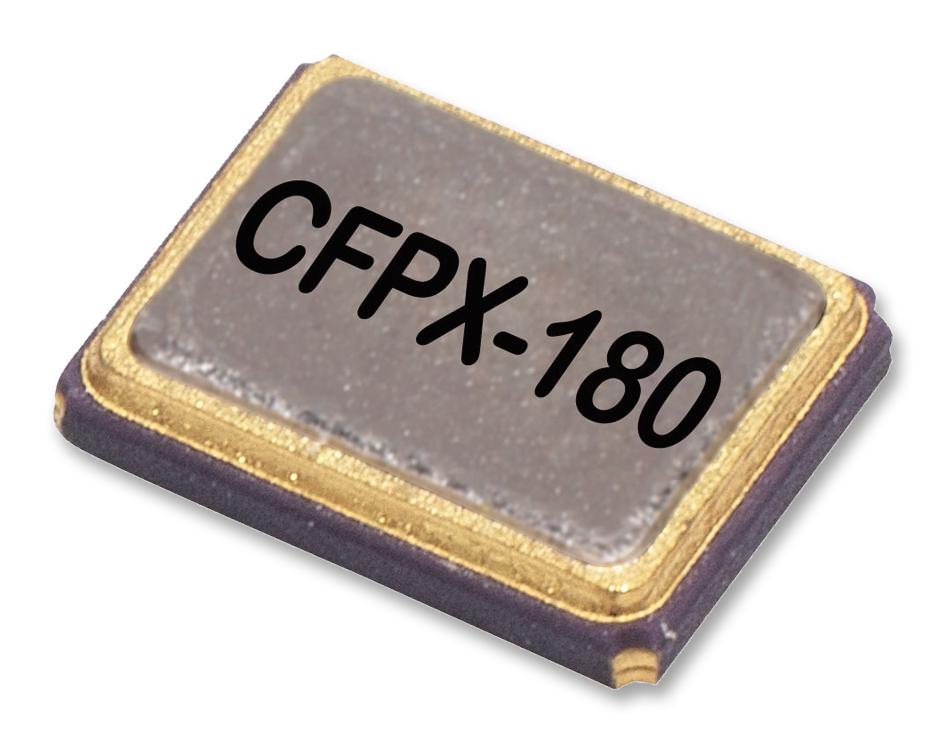

Buy the Buy IQD Frequency Products Quartz Crystal Part Number LFXTAL082070 Online
Purchase the IQD SeriesLFXTAL082070 quartz crystal online today and benefit from high-precision frequency stability, reliable hermetic sealing, and RoHS compliance. Ideal for timing circuits, oscillators, and high-reliability applications, this 13.560MHz crystal offers a tolerance of ±10.00ppm and a stability of +20ppm over temperature. Its robust design withstands shock and vibration, making it suitable for various industrial and consumer electronics. Order now for fast delivery and ensure your projects operate with dependable frequency references.
Order your IQD SeriesLFXTAL082070 quartz crystal today and ensure high reliability and precise timing for your electronic projects.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL082070?
You can click on the BUY or RFQ button to purchase LFXTAL082070 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL082070?
You can download the LFXTAL082070 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL082070?
IQD FREQUENCY PRODUCTS
