IQD FREQUENCY PRODUCTS LFXTAL082072 Quartz Crystal
This high-precision 20.0MHz quartz crystal features a compact 3.2 x 2.5mm SMD ceramic package with hermetically sealed metal lid, ensuring reliable hermetic sealing and stability. It offers excellent frequency tolerance of ±10.00ppm at 25°C, and a temperature stability of ±20.00ppm across -40°C to 85°C, making it suitable for diverse electronic applications. The crystal includes a low load capacitance of 8.00pF, shunt capacitance of 7pF max, and a drive level of 1004W max, with compliance to RoHS standards for eco-friendly manufacturing. Suitable for consumer electronics, communications, and industrial equipment, ensuring high performance and durability.
IQD FREQUENCY PRODUCTS LFXTAL082072 Quartz Crystal Specifications:
- Frequency: 20.0MHz
- Frequency Tolerance: ±10.00ppm @ 25°C
- Frequency Stability: ±20.00ppm over -40°C to 85°C
- Temperature Range: -40°C to 85°C
- Overtone: Fundamental
- Ageing: ±5ppm max per year @ 25°C
- Load Capacitance: 8.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 1004W max
- ESR: 50.000 max
- Storage Temperature: -55°C to 125°C
- Shock Resistance: 1000G, 0.5ms, 1/2 sine wave
- Vibration Resistance: 20G, 10Hz-2000Hz, 4 hours in 3 axes
- Packaging: Reel, pack size 1000 units
- Termination: NiAu, compliant with RoHS
- Reflow Temperature: 260°C for 10 seconds
- Outline Dimensions: 3.2mm x 2.5mm x 1.0mm approximately
- Compliance: RoHS, REACh, MSL Level 1
- Solder Pad Layout: standard, with underside view and connections described

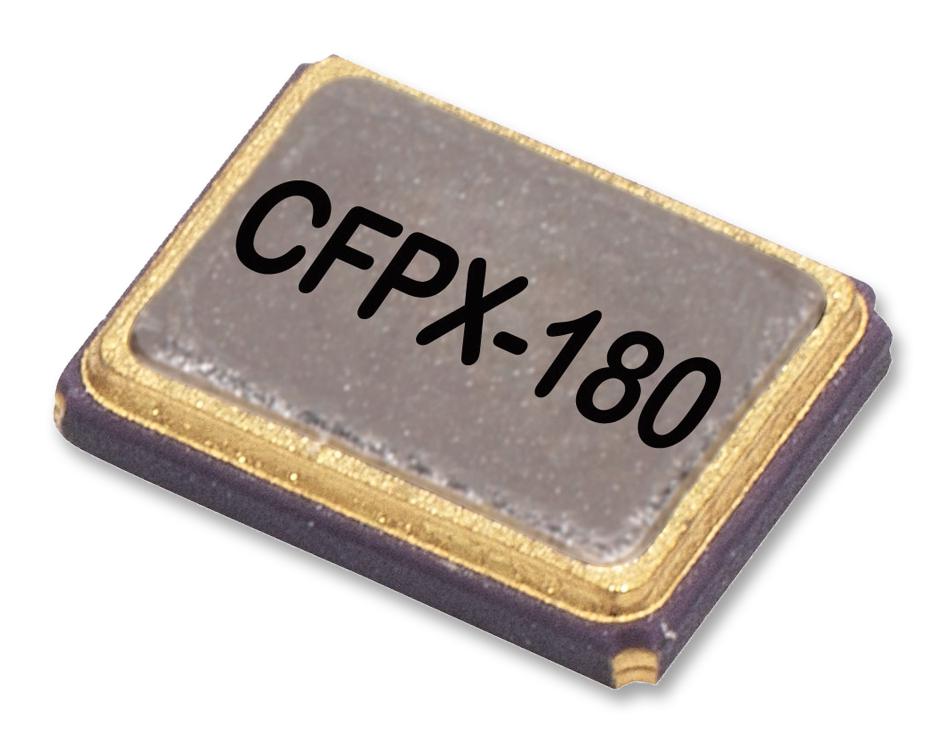

Buy the Buy IQD Frequency Products Quartz Crystal Part Number LFXTAL082072 Online
Purchase the high-precision 20.0MHz quartz crystal LFXTAL082072 online today to support your manufacturing and design projects with a reliable, hermetically sealed component. Its compact 3.2 x 2.5mm SMD form factor, ±10ppm tolerance, and stable temperature performance from -40°C to 85°C make it ideal for applications requiring high accuracy and durability. This RoHS-compliant crystal ensures eco-friendly manufacturing and comes in a reel pack of 1,000 units, offering excellent value and supply chain security for electronics producers and designers.
Order your IQD Frequency Products SeriesLFXTAL082072 quartz crystal today and ensure precise, reliable timing for your electronic projects.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL082072?
You can click on the BUY or RFQ button to purchase LFXTAL082072 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL082072?
You can download the LFXTAL082072 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL082072?
IQD FREQUENCY PRODUCTS
