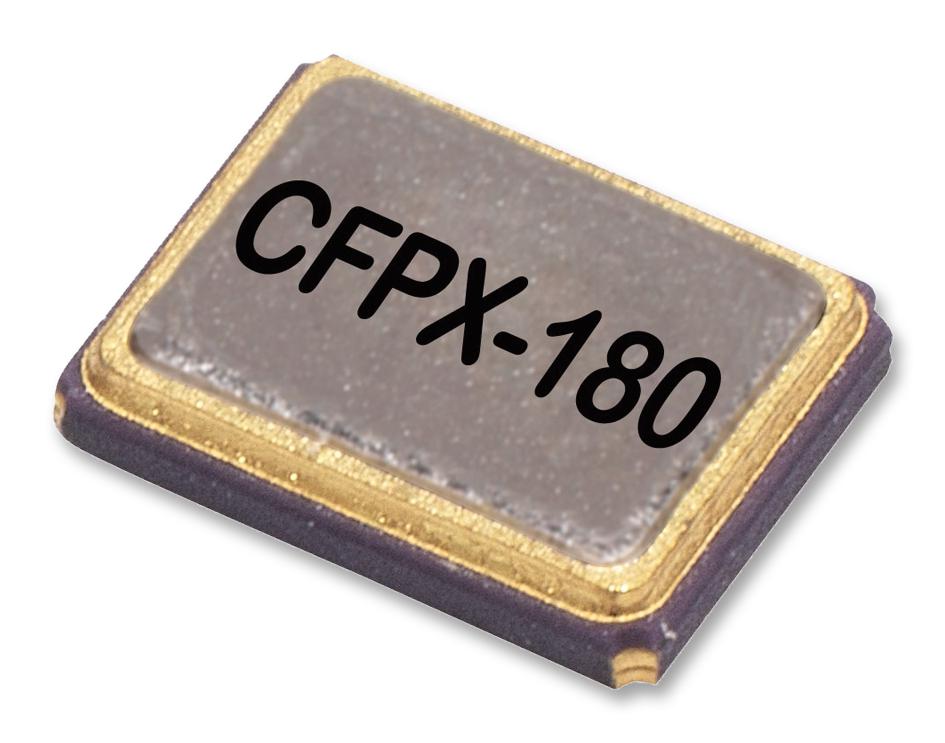

IQD FREQUENCY PRODUCTS LFXTAL082073 Quartz Crystal Oscillator
This quartz crystal is a standard 3.2 x 2.5mm surface-mount device in a hermetically sealed ceramic package with a seam-sealed metal lid, designed for high reliability in electronic circuits. Operating at 24.0MHz with a frequency tolerance of ±10.00ppm at 25°C, it exhibits excellent stability over a temperature range of -40°C to 85°C. The crystal has a load capacitance of 8.00pF, shunt capacitance of 7pF max, and drive level up to 1004W. It complies with RoHS and REACh standards, rated for shock, vibration, and storage, suitable for precise timing applications.
IQD FREQUENCY PRODUCTS LFXTAL082073 Quartz Crystal Oscillator Specifications:
- Frequency: 24.0MHz
- Frequency Tolerance: ±10.00ppm @ 25°C
- Frequency Stability: ±20.00ppm over -40°C to 85°C
- Operating Temperature Range: -40°C to 85°C
- Overtone: Fundamental
- Ageing: ±5ppm max per year at 25°C
- Load Capacitance: 8.00pF
- Shunt Capacitance: 7pF max
- Drive Level: 1004W max
- ESR: 50.000 max
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 1000G, 0.5ms, MIL-STD-202F, Method 213B
- Vibration Resistance: 20G, 10Hz-2000Hz, 12hrs total, MIL-STD-202F, Method 204D
- RoHS Terminations: NiAu
- Reflow Temperature: 260°C for 10s
- Packaging: Reel, Pack Size: 1,000 units
- Dimensions: 3.2 x 2.5mm (outline max 34mm)
Buy the ElA Series Crystal Oscillator: LFXTAL082073
Purchase the Quartz Crystal Oscillator LFXTAL082073 online for reliable, high-precision timing applications. This 24.0MHz SMD crystal features excellent stability, low aging, and robust environmental resistance. Perfect for electronic devices requiring precise frequency regulation, it meets RoHS and REACh standards, ensuring compliance and safety. Its hermetic ceramic package guarantees durability and reliability over extensive operational conditions, including shock and vibration. Order now to ensure your projects benefit from high-quality, easy-to-mount crystals, backed by prompt online service and global shipping options.
Get ElA series crystal oscillator LFXTAL082073 today—built for high precision and long-lasting durability.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL082073?
You can click on the BUY or RFQ button to purchase LFXTAL082073 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL082073?
You can download the LFXTAL082073 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL082073?
IQD FREQUENCY PRODUCTS
