IQD FREQUENCY PRODUCTS LFXTAL082075 Quartz Crystal

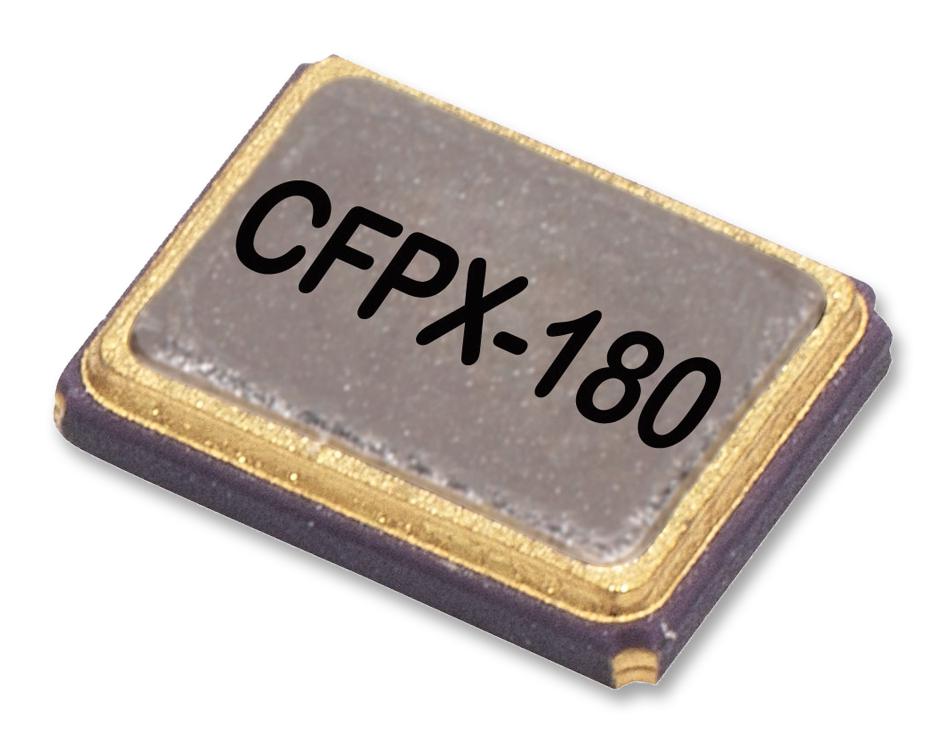

This quartz crystal is a standard 3.2 x 2.5mm SMD device housed in a hermetically sealed ceramic package with a seam sealed metal lid, ensuring durability and stability. It operates at a frequency of 30.0MHz with a frequency tolerance of ±10.00ppm at 25°C and a stability of ±20.00ppm. Designed for high performance, it supports a wide temperature range from -40°C to 85°C, with a lead load capacitance of 8.00pF, shunt capacitance of 7pF max, and an ESR of 1004W max. Suitable for various industrial applications requiring precise frequency stability and environmental resilience.
IQD FREQUENCY PRODUCTS LFXTAL082075 Quartz Crystal Specifications:
- Frequency: 30.0MHz
- Frequency Tolerance: ±10.00ppm @25°C
- Frequency Stability: ±20.00ppm
- Operating Temperature Range: -40°C to 85°C
- Overtone: Fundamental
- Ageing: +5ppm max per year @ 25°C
- Load Capacitance (CL): 8.00pF
- Shunt Capacitance (CO): 7pF max
- Drive Level: 1004W max
- Equivalent Series Resistance (ESR): 40.000 max
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: MIL-STD-202F, Method 213B, 1000G, 0.5ms, sine wave
- Vibration Resistance: MIL-STD-202F, Method 204D, 20G (10Hz-2000Hz), 12hrs total
- Packaging: Reel with 1,000 units, compliant with IEC-481-D, RoHS and REACh compliant
- Outline Dimensions: 34mm max length
Buy the Buy IQD Frequency Products Quartz Crystal Part Number LFXTAL082075 Online
Enhance your electronic designs with the high-stability quartz crystal in a hermetic ceramic package. Featuring 30MHz frequency, low ESR, wide temperature operation from -40°C to 85°C, and precision tolerance of ±10.00ppm, this SMD component guarantees reliable performance. Its robust construction meets military shock and vibration standards, making it ideal for industrial and high-performance applications. Available in a reel of 1,000 units, it ensures processed manufacturing efficiency. Trusted for stability, durability, and environmental resilience, order online today for fast delivery and technical support.
Order your IQD Frequency Products SeriesLFXTAL082075 crystal today and ensure stable and precise timing for your electronic projects.
