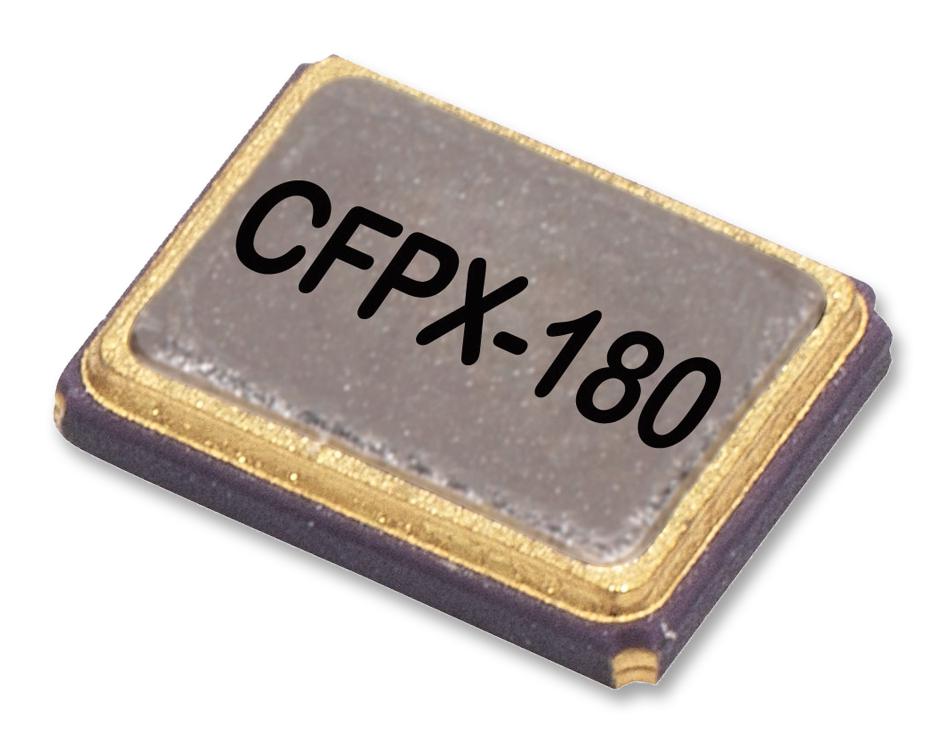

IQD FREQUENCY PRODUCTS LFXTAL082078 Quartz Crystal Oscillator
This high-precision 50.0MHz quartz crystal features a 3.2 x 2.5mm SMD ceramic package with hermetically sealed metal lid, ideal for frequency stability in electronic circuits. It operates over -40°C to 85°C, maintains a frequency tolerance of ±10ppm @25°C, and ageing of no more than ±5ppm per year. With low ESR, load capacitance of 8.00pF, and robust environmental and vibration resistance, it is suitable for demanding industrial and communications applications. RoHS compliant, it is supplied on a reel for efficient assembly processes.
IQD FREQUENCY PRODUCTS LFXTAL082078 Quartz Crystal Oscillator Specifications:
- Frequency: 50.0MHz
- Frequency Tolerance: ±10.00ppm @25°C
- Frequency Stability: ±20.00ppm
- Operating Temperature Range: -40°C to 85°C
- Ageing: +5ppm max per year @ 25°C
- Load Capacitance (CL): 8.00pF
- Shunt Capacitance (CO): 7pF max
- Drive Level: 1004W max
- ESR: 35.000 max
- Outline Size: 3.2 x 2.5mm
- Sealing: Hermetically sealed ceramic package with metal lid
- Storage Temperature Range: -55°C to 125°C
- Shock Resistance: 1000G, 0.5ms, MIL-STD-202F, Method 213B
- Vibration Resistance: 20G, 10Hz-2000Hz, 12hrs, MIL-STD-202F, Method 204D
- RoHS Status: Compliant
- Packaging: Reel, 1000 units
- Reflow Temp: 260°C for 10 seconds
Buy the ElaD Series Quartz Crystal: LFXTAL082078
Purchase the ElaD series quartz crystal LFXTAL082078 online for reliable frequency stability in your electronic projects. Designed for industrial and communication applications, this 50MHz crystal features a hermetically sealed ceramic package, low ESR, and excellent environmental resilience. With RoHS compliance and easy reel packaging for rapid assembly, it ensures optimal performance across a wide temperature range. Order now to benefit from high precision, durable build quality, and fast delivery, ensuring your electronic designs operate with stable frequencies and reliable accuracy.
Get ElaD quartz crystal LFXTAL082078 today—built for precision and long-lasting durability.
