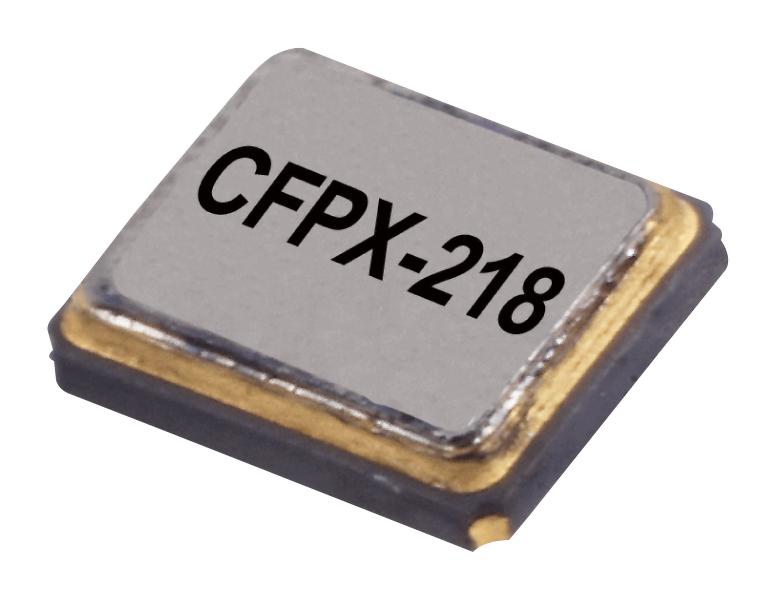

IQD FREQUENCY PRODUCTS LFXTAL082087 Quartz Crystal
This 40.0MHz fundamental SMD crystal features a hermetically sealed ceramic package with a seam sealed metal lid. It offers high frequency stability, low aging, and robust environmental resistance, making it ideal for precise timing applications. The crystal operates within a temperature range of -20°C to 70°C and is compliant with RoHS and REACh standards. Its compact 2.5 x 2mm size, with a tape packaging style of cut from reel, ensures easy surface-mount assembly on various electronic devices, offering reliable long-term performance.
IQD FREQUENCY PRODUCTS LFXTAL082087 Quartz Crystal Specifications:
- Frequency: 40.0MHz
- Frequency Tolerance: ±10.00ppm @25°C, max ±10ppm over operating temperature
- Frequency Stability: ±10ppm @25°C
- Operating Temperature Range: -20°C to 70°C
- Ageing: +3ppm max per year @25°C
- Load Capacitance: 10.00pF
- Shunt Capacitance: 5pF max
- Drive Level: 1004W max
- Equivalent Series Resistance (ESR): 70.000 max
- Storage Temperature Range: -55°C to 125°C
- Vibration: MIL-STD-883F, Method 2007.3, 20G (20Hz-2000Hz), 1.52mm amplitude, 4 hours in total
- Drop Test: 100cm drop onto hard wooden surface (3 times)
- Maximum Process Temperature: 260°C for 10 seconds
- Terminations: RoHS compliant NiAu, reflow temp 260°C max for 10 seconds
- Packaging: Tape, cut from reel, pack size 100
Buy the IQD Series 40MHz Quartz Crystal: LFXTAL082087
Upgrade your electronic devices with this high-precision 40MHz quartz crystal featuring a hermetically sealed ceramic package. It guarantees excellent frequency stability, minimal aging, and reliable performance under various environmental conditions. Perfect for timing and oscillator applications, its small 2.5 x 2mm surface-mount design facilitates easy integration into complex circuits. Compliant with RoHS and REACh standards, this crystal is ideal for demanding industrial, communication, and consumer electronics, providing long-term stability and superior quality to meet your project needs.
Order your IQD Series 40MHz Quartz Crystal LFXTAL082087 today and ensure your electronic projects benefit from dependable timing accuracy.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL082087?
You can click on the BUY or RFQ button to purchase LFXTAL082087 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL082087?
You can download the LFXTAL082087 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL082087?
IQD FREQUENCY PRODUCTS
