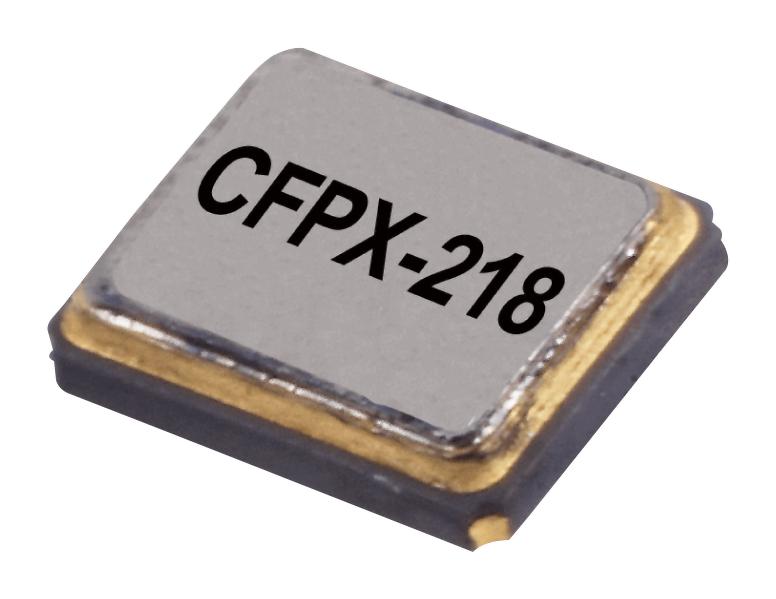

IQD FREQUENCY PRODUCTS LFXTAL082088 Quartz Crystal Oscillator
This 50MHz quartz crystal is designed for precise frequency stabilization in electronic circuits. Encased in a hermetically sealed ceramic package with a metal lid, it offers exceptional environmental resilience, including vibration and drop resistance. It features low ESR, stable operation across a temperature range of -20°C to 70°C, and low ageing rate of +3ppm annually at 25°C. Suitable for high-frequency applications, it complies with RoHS standards and is ideal for use in oscillators, clocks, and timing devices requiring high reliability and stability.
IQD FREQUENCY PRODUCTS LFXTAL082088 Quartz Crystal Oscillator Specifications:
- Frequency: 50.0MHz
- Tolerance: ±10.00ppm @25°C
- Frequency Stability: ±10.00ppm
- Operating Temperature Range: -20°C to 70°C
- Ageing: +3ppm max per year @ 25°C
- Load Capacitance: 10.00pF
- Shunt Capacitance: 5pF max
- Drive Level: 1004W max
- ESR: 70.000 max
- Storage Temperature Range: -55°C to 125°C
- Vibration Resistance: MIL-STD-883F, Method 2007.3: 20G (20Hz-2000Hz), 1.52mm amplitude, 20mins
- Drop Resistance: 100cm drop onto hard wooden surface (3 times)
- Maximum Process Temperature: 260°C for 10 seconds
- Packaging: Cutt tape, 100 pcs per reel
- RoHS Compliant: Yes
- Reflow Temp: 260°C max for 10 sec
- Outline Dimensions: 2.5 x 2 mm
- Bonding Pad Layout: 4-pad design with GND and crystal connections
Buy the IQD Series Crystal Oscillator: 50MHz LFXTAL082088
Buy the IQD Quartz Crystal Oscillator LFXTAL082088 online today. This 50MHz crystal provides exceptional accuracy, stability, and reliability for high-frequency applications. Encased in a hermetic ceramic package, it resists vibration and environmental stress, ensuring consistent performance in oscillators, clocks, and timing circuits. Compact and RoHS compliant, it is ideal for electronics requiring precise timing solutions. Order now to enhance your designs with a proven, durable crystal oscillator that meets industry standards and guarantees dependable operation.
Get IQD LFXTAL082088 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL082088?
You can click on the BUY or RFQ button to purchase LFXTAL082088 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL082088?
You can download the LFXTAL082088 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL082088?
IQD FREQUENCY PRODUCTS
