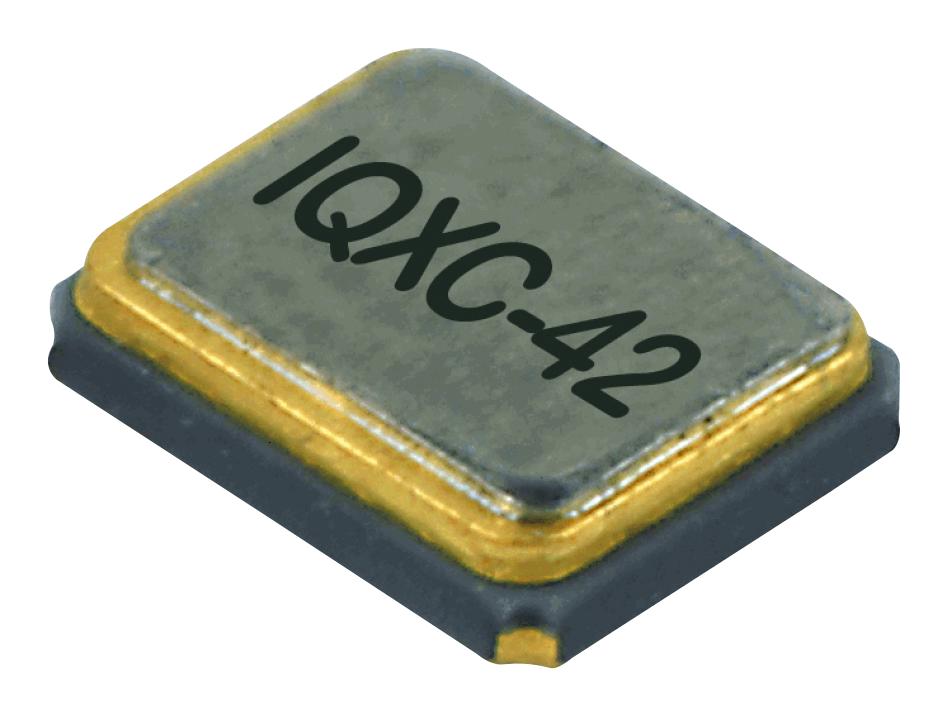

IQD FREQUENCY PRODUCTS LFXTAL082135 Quartz Crystal
The LFXTAL082135 is a 48.0MHz SMD crystal in a hermetically sealed ceramic package with a metal lid, suitable for high-reliability applications. Featuring a fundamental overtone, it has a frequency tolerance of ±10.00ppm and a stability of ±15.00ppm. Operating effectively between -40°C to 85°C, its low load capacitance of 8.00pF ensures stable performance. Designed for vibration and shock resistance per IEC standards, it boasts RoHS compliance and is packaged in tape for easy automated assembly, making it ideal for precise timing in modern electronic devices.
IQD FREQUENCY PRODUCTS LFXTAL082135 Quartz Crystal Specifications:
- Frequency: 48.0MHz
- Frequency Tolerance: ±10.00ppm
- Frequency Stability: ±15.00ppm
- Operating Temperature Range: -40°C to 85°C
- Overtone: Fundamental
- Ageing: +3ppm max per year at 25°C
- Load Capacitance (CL): 8.00pF
- Shunt Capacitance (CO): 3pF max
- Drive Level: 1004W max
- ESR: 60.000 max
- Shock Resistance: IEC 60068-2-27, 1000G, 1ms, 3 times in each of 3 planes
- Vibration Resistance: IEC 60068, 1.5mm amplitude, 10Hz-55Hz, 2hrs per plane
- Storage Temperature Range: -55°C to 125°C
- Termination: RoHS compliant NiAu
- Reflow Temperature: 260°C for 10s
- Packaging: Tape, cut from reel, pack size 100
- Part Number and Packaging: LFXTAL082135 in cut tape
- Outline Dimensions: 2.04mm x 0.1mm
- Pad Layout: 1, Crystal; 2, GND; 3, Crystal; 4, GND
Buy the Quantum Series 48MHz Crystal: LFXTAL082135
Order the Quartz Crystal LFXTAL082135 online today to ensure precise timing in your electronic devices. This hermetically sealed, RoHS-compliant crystal offers high stability, low load capacitance, and robust resistance to shock and vibration. Designed for demanding environments with a wide operating temperature range, it guarantees long-term reliability and consistent performance. Perfect for communication equipment, industrial applications, and advanced electronics needing accurate frequency control. Secure your supply now and benefit from fast delivery and excellent support.
Get Quantum Series 48MHz Crystal LFXTAL082135 today—built for precision and long-lasting durability in high-reliability applications.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL082135?
You can click on the BUY or RFQ button to purchase LFXTAL082135 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL082135?
You can download the LFXTAL082135 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL082135?
IQD FREQUENCY PRODUCTS
