IQD FREQUENCY PRODUCTS LFXTAL082468 Quartz Crystal

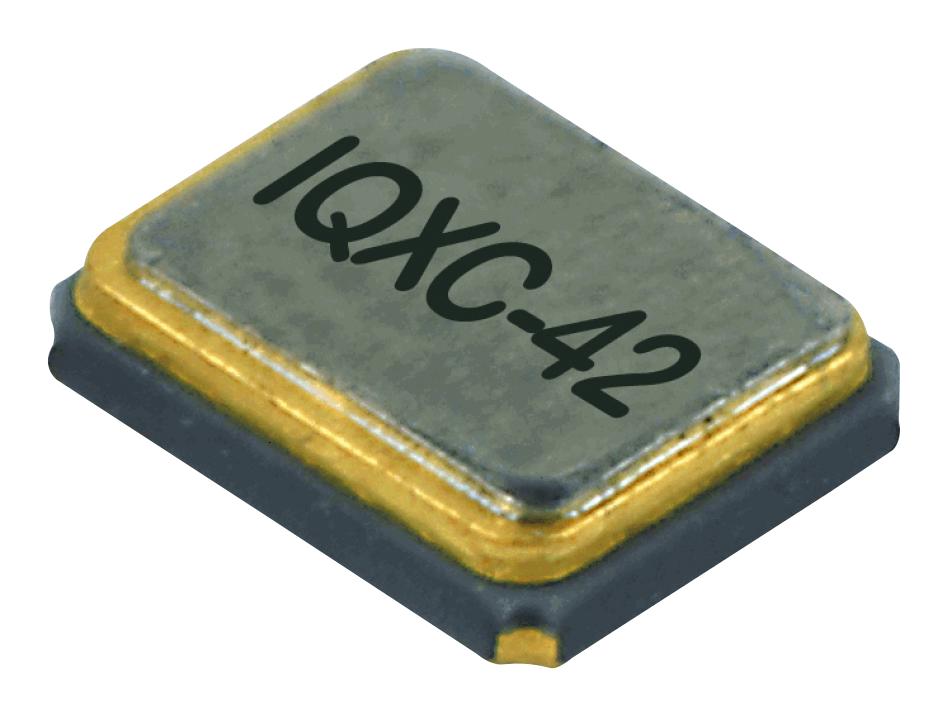

This 38.40MHz SMD quartz crystal features a ceramic package with a hermetically sealed metal lid, ensuring high reliability and stability for industrial applications. It operates within -40°C to 85°C, with a frequency tolerance of ±10 ppm and a stability of ±15 ppm. The crystal has a load capacitance of 10pF, shunt capacitance max 3pF, and a drive level of 100µW. It withstands shocks of 1000G and vibrations, making it suitable for harsh environments and precision timing in electronic circuits.
IQD FREQUENCY PRODUCTS LFXTAL082468 Quartz Crystal Specifications:
- Frequency: 38.40MHz
- Frequency Tolerance: ±10 ppm
- Frequency Stability: ±15 ppm
- Operating Temperature Range: -40°C to 85°C
- Load Capacitance: 10pF
- Shunt Capacitance: max 3pF
- Drive Level: 100µW
- ESR: max 60Ω
- Shock Resistance: IEC 60068-2-27: 1000G, 1ms, 3 times in each of 3 planes
- Vibration Resistance: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 2hrs each plane
- Storage Temperature Range: -55°C to 125°C
- Material: Ceramic with RoHS compliant NiAu terminations
- Reflow Temperature: 260°C for 10s
- Packaging: Tape and reel, 100 units per reel
Buy the IQD Frequency LFXTAL082468 U– Reliable Quartz Crystal for Industrial Applications
Discover the high-performance 38.40MHz quartz crystal, designed for industrial electronics requiring accurate timing and durability. Featuring a hermetically sealed ceramic package with NiAu terminations, it withstands shocks and vibrations, making it ideal for harsh environments. Its low ESR and stable frequency tolerance ensure reliable operation in precision applications. Packaged in tape and reel for easy automated assembly, this crystal provides long-term stability and compliance with RoHS regulations. Perfect for embedded systems, communication devices, and industrial control systems.
Order your IQD Frequency LFXTAL082468 today and ensure precise timing with this highly stable quartz crystal suitable for demanding industrial projects.
Frequently Asked Questions
Where can I buy IQD FREQUENCY PRODUCTS LFXTAL082468?
You can click on the BUY or RFQ button to purchase LFXTAL082468 from an authorized IQD FREQUENCY PRODUCTS distributor.
How do I troubleshoot issues or seek technical support for part LFXTAL082468?
You can download the LFXTAL082468 datasheet or visit the IQD FREQUENCY PRODUCTS website for support.
Who is the manufacturer of LFXTAL082468?
IQD FREQUENCY PRODUCTS
