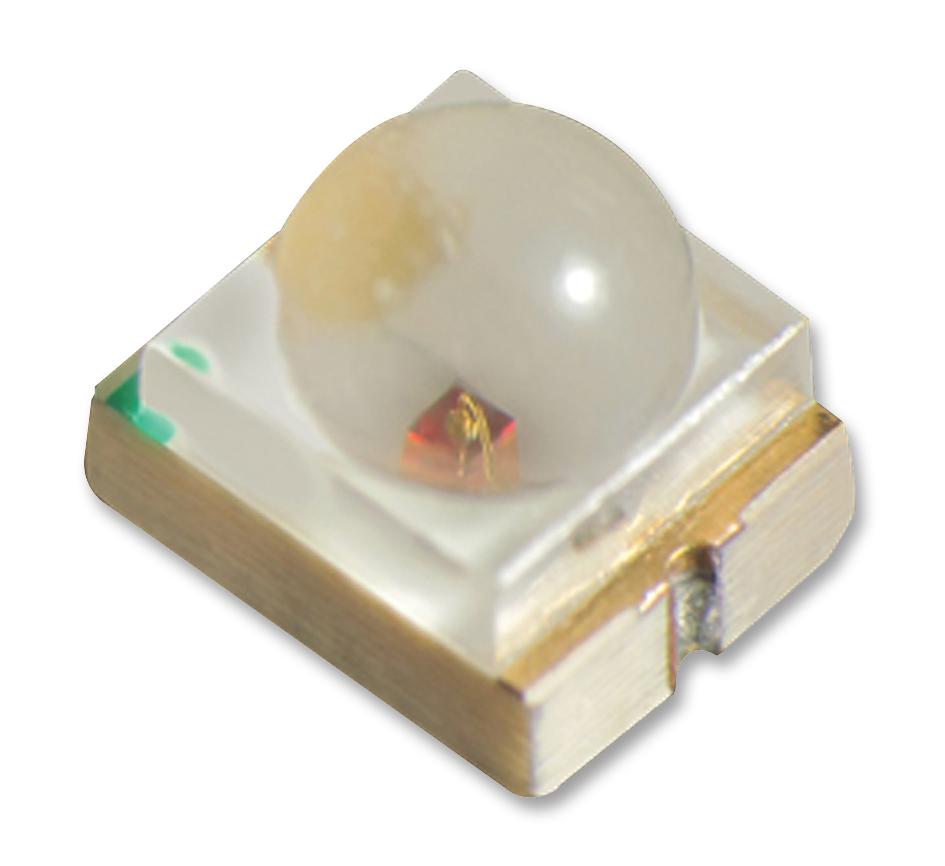

KINGBRIGHT KPED3528SURCK Red SMD LED
The KPED-3528SURCK is a high-brightness red surface-mount LED measuring 3.5 by 2.8 millimeters with a water-clear lens. It features AlGaInP on GaAs technology to produce a vivid red light, making it suitable for backlighting, signage, and industrial applications. Designed for all SMT assembly and solder processes, it ensures reliable performance in various environments. The device boasts a moisture sensitivity level 3 and complies with RoHS standards, providing durability and safety for diverse electronic and lighting solutions.
KINGBRIGHT KPED3528SURCK Red SMD LED Specifications:
- Dimensions: 3.5 x 2.8 mm
- Lens Type: Water Clear
- Color: Hyper Red (AlGaInP on GaAs)
- Peak Wavelength: 645 nm
- Dominant Wavelength: 630 nm
- Spectral Line Half-width: 28 nm
- Forward Voltage: 1.95 V at 20 mA
- Reverse Current: 10 μA at 5 V
- Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 185 mA
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Moisture Sensitivity Level: 3
- RoHS compliant
Buy the Buy Kingbright Hyper Red Part Number KPED3528SURCK Online
Purchase Kingbright Hyper Red SMD LED today for reliable performance in backlighting, signage, and industrial lighting. Designed for all SMT processes, this LED features a water-clear lens, high brightness, and durability. It is RoHS compliant, ensuring safety and environmental standards. Ideal for high-demand applications, this LED provides a luminous wavelength of 645 nm, with a forward voltage of 1.95 V at 20 mA. Fast delivery and secure ordering make it the perfect choice for your electronic projects.
Get Kingbright KPED3528SURCK today—built for high brightness, reliability, and efficient backlighting applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT KPED3528SURCK?
You can click on the BUY or RFQ button to purchase KPED3528SURCK from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part KPED3528SURCK?
You can download the KPED3528SURCK datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of KPED3528SURCK?
KINGBRIGHT
