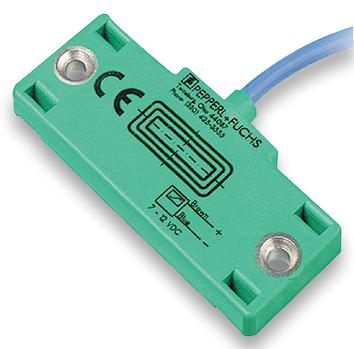

Pepperl+Fuchs CBN5F46E0 Capacitive Sensor
The capacitive sensor CBN5-F46-E0 by Pepperl Fuchs features a non-flush 5mm sensing face suitable for metal-free zones. It operates on 10-30 VDC with a switching distance of 5mm and an assured operating distance up to 35mm. The sensor boasts a compact flat housing with mounting slots for cable ties and thru-holes for screw mounting. Designed for industrial automation, it includes LED indicators for status, reverse polarity protection, and short-circuit protection. It is compliant with IEC 60947-5-2:2007 and UL, CSA approvals, making it ideal for precise proximity detection in harsh environments.
Pepperl+Fuchs CBN5F46E0 Capacitive Sensor Specifications:
- Switching element function: NPN NO
- Rated operating distance: Sp = 5mm
- Assured operating distance: Sa = 0... 35mm
- Installation: non-flush
- Output polarity: DC
- Installation conditions: Cc 10 mm, F 20 mm / 50 mm
- Operating voltage: Ug = 10...30 VDC
- Switching frequency: 0... 10 Hz
- Hysteresis: 4...10%, typ. 5%
- Reverse polarity protected
- Short-circuit protection: pulsing
- Voltage drop: Us < 2V
- Operating current: I0... 100 mA
- Lowest operating current: Im = 0mA
- Off-state current: Io = 0... 0.5 mA, typ. 0.01 mA
- No-load supply current: Ip < 15mA
- LED indicator: Yellow for switching state
- Ambient temperature: -25...70°C (43...158°F)
- Storage temperature: -40...85°C (-40...185°F)
- Connection: PVC cable, 2m length, 0.14 mm² cross-section
- Housing material: PBT
- Protection degree: IP67
- Standards: IEC 60947-5-2:2007, UL Listed, CSA Listed
Buy the Pepperl Fuchs Series Capacitive Sensor: CBN5-F46-E0
Discover the reliable capacitive sensor CBN5-F46-E0 from Pepperl Fuchs, designed for metal-free zone detection with a 5mm sensing distance. It features a non-flush installation with a flat housing that includes mounting slots for cable ties and thru-holes for screw mounting, making it perfect for industrial automation environments. The sensor operates on 10 to 30 VDC, providing consistent switching performance with LED status indicators. Its robust construction, IP67 protection, and compliance with international standards ensure durability and safety for precise proximity detection in demanding conditions.
Get Pepperl Fuchs CBN5-F46-E0 today—built for precision and long-lasting durability in industrial automation applications.
Frequently Asked Questions
Where can I buy Pepperl+Fuchs CBN5F46E0?
You can click on the BUY or RFQ button to purchase CBN5F46E0 from an authorized Pepperl+Fuchs distributor.
How do I troubleshoot issues or seek technical support for part CBN5F46E0?
You can download the CBN5F46E0 datasheet or visit the Pepperl+Fuchs website for support.
Who is the manufacturer of CBN5F46E0?
Pepperl+Fuchs
