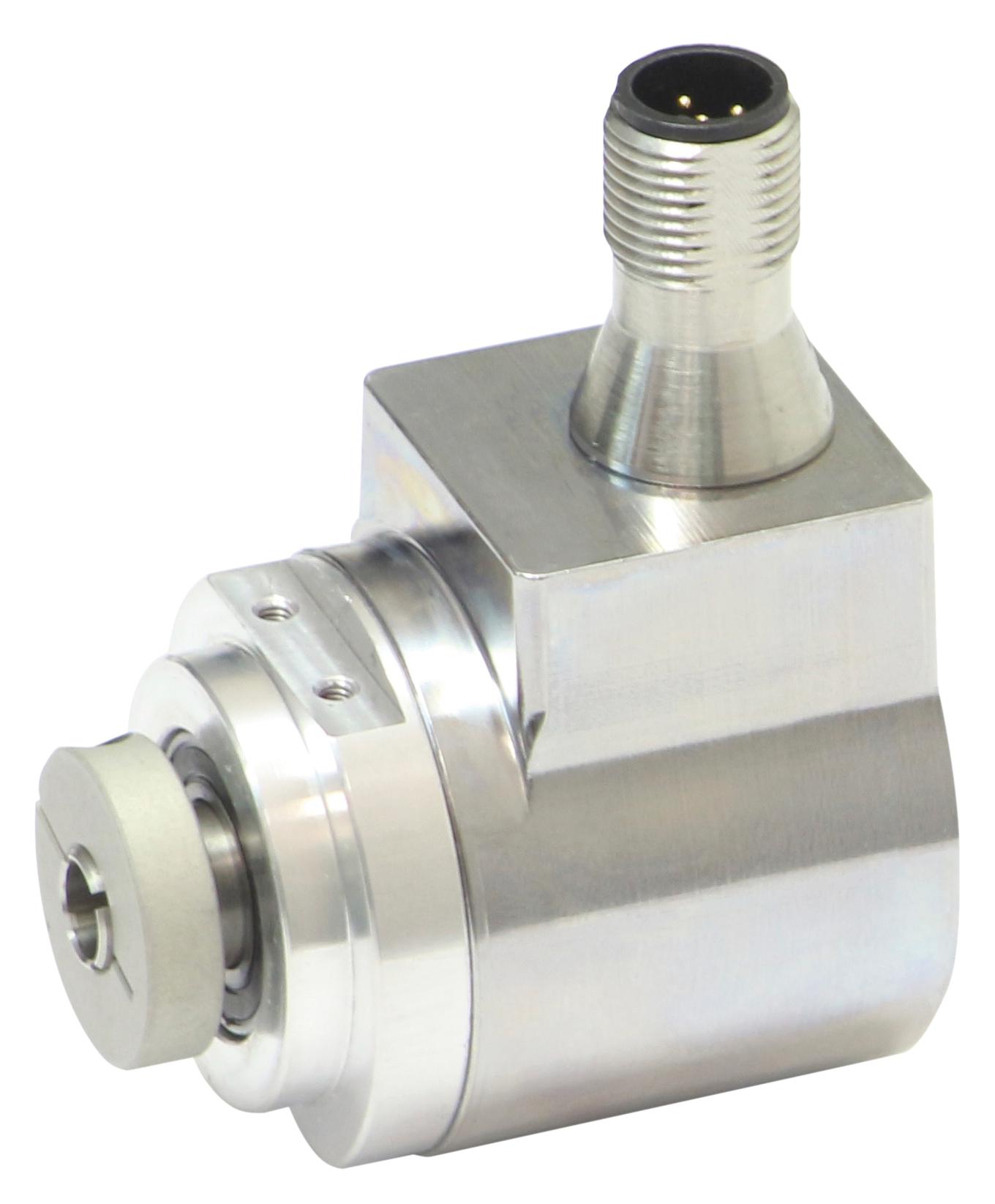

Pepperl+Fuchs ENA36TLR06DA51516IORBD01 Absolute Rotary Encoder
The ENA36TL-R***-IO-Link is a high-precision absolute rotary encoder featuring magnetic sampling, a recessed hollow shaft, and an IP65 rated enclosure. It supports IO-Link protocol for process data transfer, parameterization, and condition monitoring. This encoder offers a linearity error of less than 1° and up to 16-bit resolution, ensuring accurate measurement in industrial environments. Suitable for automation and monitoring, it operates within a temperature range of -40°C to 85°C, with stainless steel, aluminum, and zinc-plated steel housing options, and includes status LEDs for operational feedback.
Pepperl+Fuchs ENA36TLR06DA51516IORBD01 Absolute Rotary Encoder Specifications:
- Type: Absolute rotary encoder with magnetic sampling
- Protection: IP65
- Housing diameter: 36 mm
- Shaft type: Recessed hollow shaft
- Shaft diameter: 6 mm
- Linearity error: <+01°
- Resolution: Up to 16 Bit programmable
- Operating temperature: -40°C to 85°C
- Materials: Zinc plated steel, aluminum, stainless steel
- Supply voltage: 18-30 VDC
- No-load current: Max. 50 mA
- Speed: Max. 12,000 min⁻¹
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10-1000 Hz
- Degree of protection: IP65
- Communication: IO-Link V1.1.2, device profile 18D
- Dimensions: Housing diameter 36 mm, length varies by model
- Approvals: UL, cULus listed, CE compliance
Buy the Pepperl+Fuchs ENA36TL – Reliable Absolute Rotary Encoder for Industrial Applications
Enhance your industrial automation with the Pepperl+Fuchs ENA36TL-IO-Link absolute encoder. With magnetic sampling, IP65 protection, and 16-bit resolution, it ensures precise, reliable measurement in demanding environments. Its recessed hollow shaft design facilitates easy installation and durability. Supported by IO-Link for seamless process data transfer, configuration, and condition monitoring, this high-quality device is ideal for manufacturing and process control. Order online now to improve your system’s precision and operational efficiency today.
Order your Pepperl+Fuchs ENA36TL-IO-Link absolute encoder today and equip your automation system with precision measurement and reliable condition monitoring.
