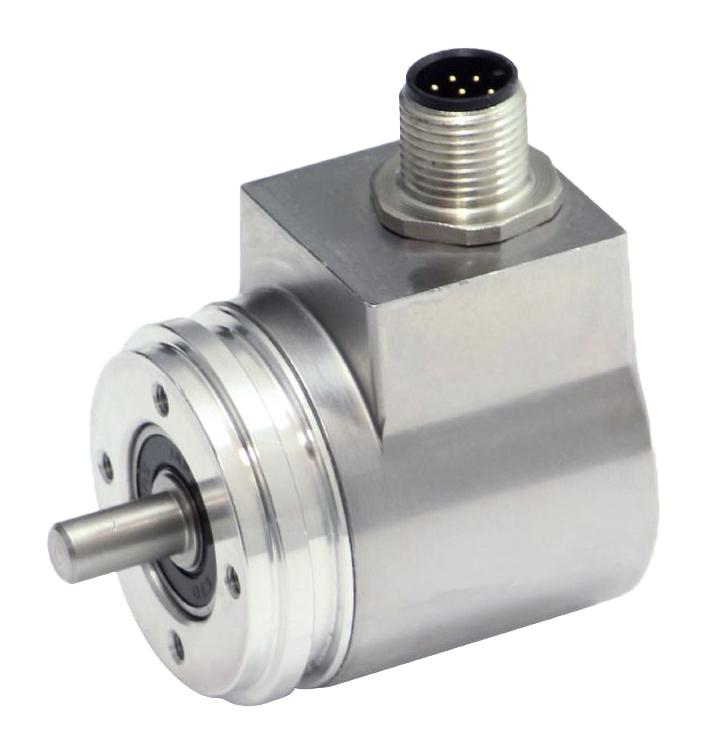

Pepperl+Fuchs ENA36TLS10SA51516IORBD01 Absolute Rotary Encoder
The ENA36TL-S***-IO-Link is an absolute rotary encoder from Pepperl+Fuchs' Pure Line, featuring magnetic sampling for high precision and reliability. It comes with a solid shaft and an IP65 protection rating, suitable for various industrial environments. The encoder offers customizable parameters including measuring range, rotation direction, and switching signals. Equipped with an IO-Link interface, it supports process data transfer and condition monitoring, making it ideal for automation tasks requiring detailed position feedback. Compact with high resolution, it enhances system accuracy and operational efficiency.
Pepperl+Fuchs ENA36TLS10SA51516IORBD01 Absolute Rotary Encoder Specifications:
- Housing Diameter: 36 mm
- Protection Class: IP65
- Output Type: Absolute rotary encoder
- Detection Method: Magnetic sampling
- Shaft Diameter: 6 mm or 10 mm, Solid shaft options
- Connection Type: M12x4, 5-pin A-coded
- Resolution: Programmable up to 16 bit, multiround up to 15 bit
- Flange: SA Servo flange
- Operating Voltage: 18-30 VDC
- Operating Temperature: -40°C to 85°C
- IP Protection: IP65, suitable for demanding environments
- Rotational Speed: Max 12,000 RPM
- Mass: Approx. 195 g
- Degree of Protection: IP65
- Shock Resistance: 100 g, 6 ms
- Vibration Resistance: 10 g, 10-1000 Hz
- UL Approval: Yes, for NFPA 79 applications if UL marked
- Certification: DIN EN 60068-2-78, IEC 61131-9, EN 61000-6-4/2
- Material: Zinc plated steel, aluminum, stainless steel
- Connection: M12 connector, 5-pin, A-coded
Buy the Pepperl+Fuchs Series Absolute Rotary Encoder: ENA36TLS10SA51516IORBD01
Order the Pepperl+Fuchs absolute rotary encoder ENA36TLS10SA51516IORBD01 online today to elevate your automation systems. This high-precision encoder features magnetic sampling technology, an IP65 rated protective housing, and customizable resolution up to 16 bits. Its solid shaft design ensures durability in demanding environments, while the internal magnetic sampling offers wear-free operation. Compatible with IO-Link for efficient process data transfer and condition monitoring, this encoder guarantees accurate positioning and seamless integration into modern industrial setups, enhancing overall operational reliability and productivity.
Buy Pepperl+Fuchs ENA36TLS10SA51516IORBD01 now and experience unmatched reliability and high-precision industrial automation performance.
