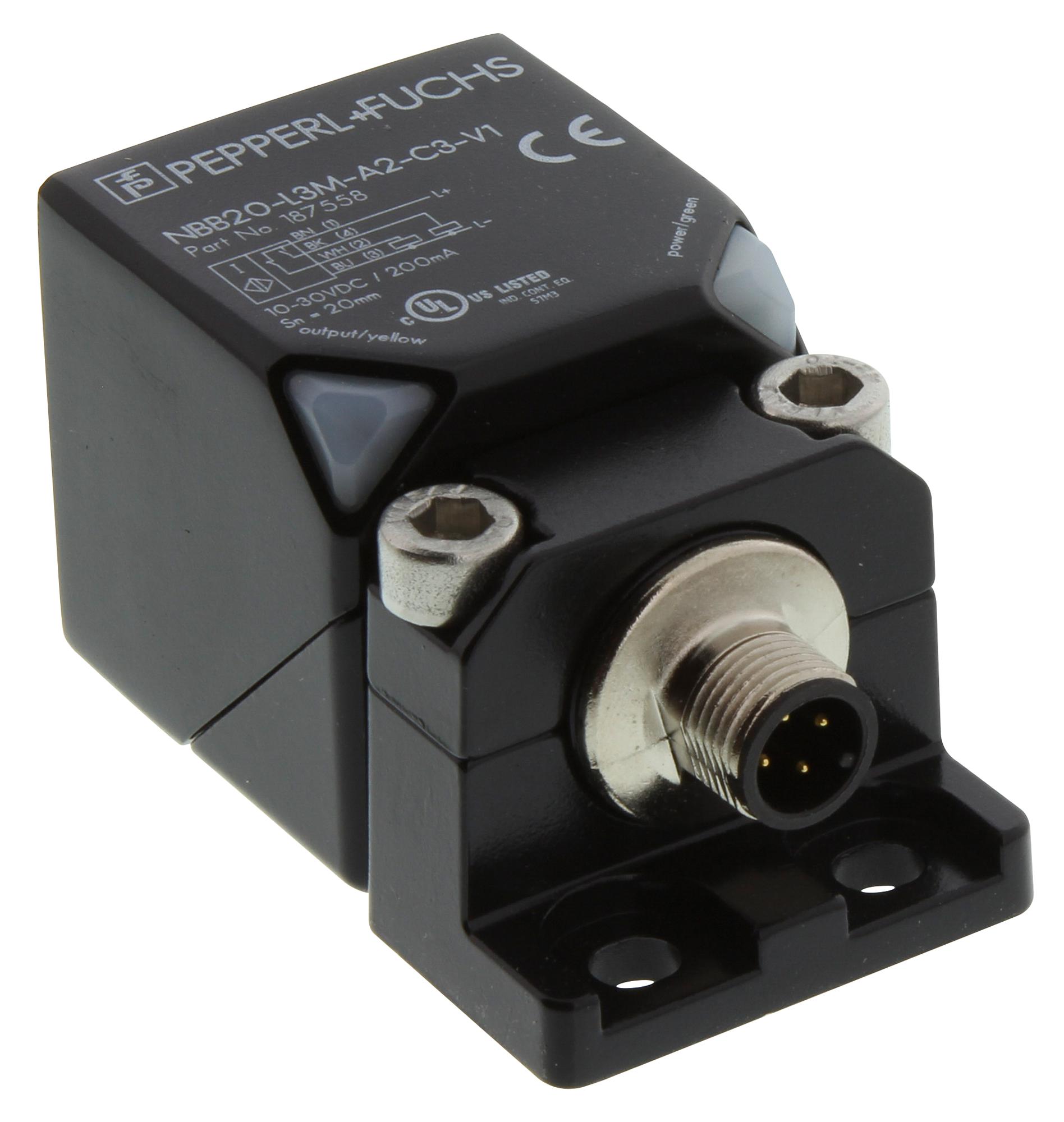

Pepperl+Fuchs NBB20L3MA2C3V1 Inductive Sensor
The NBB20L3MA2C3V1 is a 20mm flush inductive proximity sensor designed for reliable detection in industrial automation. Featuring a 4-wire DC output, active surface thermoset construction, and weld immunity, it ensures stable operation in harsh environments. The sensor includes dual LED indicators for status observation and supports a sensing distance of 0 to 16.2mm with a rated operating voltage of 10 to 30V DC. Suitable for applications requiring high durability and precise proximity detection, it conforms to IEC and EN standards for safety and quality.
Pepperl+Fuchs NBB20L3MA2C3V1 Inductive Sensor Specifications:
- Sensing Face: 20mm flush
- Output type: 4-wire DC
- Rated operating distance: 0-16.2mm
- Actual operating distance: 0-16.2mm
- Operating voltage: 10-30V DC
- Switching frequency: 0-5Hz
- Hysteresis: typ. 5%
- Short-circuit protection: yes
- Reverse polarity protection: yes
- LED indicators: green and yellow
- Connection: M12 x 1, 4-pin connector
- Housing material: GD-ZnAl4Cu1, coated
- Degree of protection: IP67
- Standards: EN 60947-5-2, IEC 60947-5-2
- Ambient temperature: -40°C to 85°C
- Storage temperature: -40°C to 85°C
Buy the Pepperl+Fuchs Series Inductive Sensor: NBB20L3MA2C3V1
Purchase the Pepperl+Fuchs Series inductive sensor NBB20L3MA2C3V1 online today and enhance your automation system with its dependable detection capabilities. Designed with a 20mm flush mount, active surface thermoset material, and weld immunity, it offers high performance in tough environments. With dual LED indicators for status monitoring, 0-16.2mm sensing distance, and robust IP67-rated housing, this sensor ensures consistent operation. Ideal for industrial applications, it's easy to install, protects against reverse polarity, and conforms to international safety standards for peace of mind.
Order your Pepperl+Fuchs Series NBB20L3MA2C3V1 inductive sensor today and experience reliable and durable proximity detection for your industrial automation needs.
Frequently Asked Questions
Where can I buy Pepperl+Fuchs NBB20L3MA2C3V1?
You can click on the BUY or RFQ button to purchase NBB20L3MA2C3V1 from an authorized Pepperl+Fuchs distributor.
How do I troubleshoot issues or seek technical support for part NBB20L3MA2C3V1?
You can download the NBB20L3MA2C3V1 datasheet or visit the Pepperl+Fuchs website for support.
Who is the manufacturer of NBB20L3MA2C3V1?
Pepperl+Fuchs
