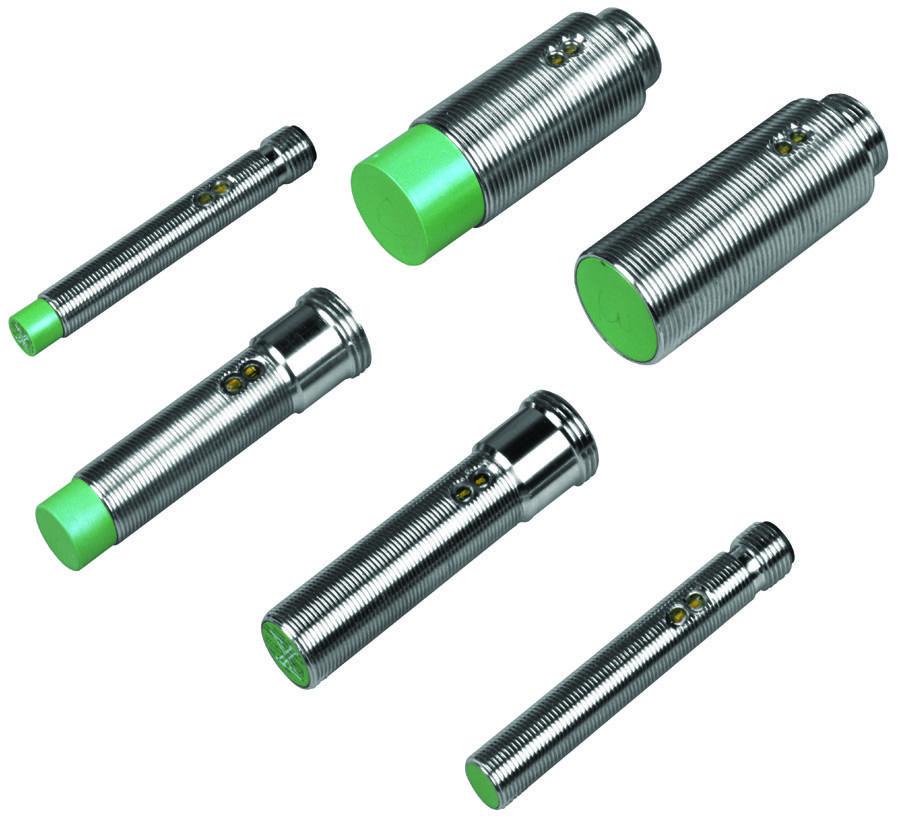

Pepperl+Fuchs NBB212GM40Z0 Inductive Proximity Sensor
The NBB2-12GM40-Z0 is an inductive proximity sensor offering accurate, contactless detection of metallic objects. It has a 2mm sensing distance, operates on DC voltage, and supports a switching frequency of 1000Hz. The sensor features reverse polarity and short-circuit protection, an LED indicator for status, and an IP67 housing rated for dust and water resistance. It connects via a 2-meter PVC cable, making it ideal for machinery, automation, and process control environments. Its robust construction ensures reliability in industrial settings.
Pepperl+Fuchs NBB212GM40Z0 Inductive Proximity Sensor Specifications:
- Switching element function: pe No
- Rated operating distance: 2mm
- Operation voltage: 5... 60V DC
- Switching frequency: 1000Hz
- Hysteresis: 1... 10% (typ. 5%)
- Reverse polarity protection: Yes
- Short-circuit protection: Pulsing
- Voltage drop: <5V
- Operating current: 2... 100mA
- Lowest operating current: 2mA
- Off-state current: 0... 0.5mA (typ.)
- Time delay before availability: Not specified
- LED indicator: Yes, yellow for switching status
- Ambient temperature: +25°C to +70°C (-13°F to 158°F)
- Connection type: PVC cable, 2m
- Core cross-section: 0.14mm²
- Housing material: Brass, nickel-plated
- Sensing face: PBT, flush-mount
- Degree of protection: IP67
- Standards: EN 60947-5-2:2007
- Certifications: UL, cULus, CSA, CCC
Buy the Pepperl+Fuchs Series Inductive Proximity Sensor: NBB2-12GM40-Z0
Purchase the Pepperl+Fuchs NBB2-12GM40-Z0 inductive proximity sensor online today and ensure precise metallic object detection in your automation systems. Its robust IP67 housing offers protection against dust and water, making it suitable for harsh industrial environments. Equipped with reverse polarity and short-circuit protection, along with a 2mm sensing distance and 1000Hz switching frequency, this sensor provides reliable operation and easy integration into machinery, instrumentation, and process control applications. Order now and enhance your system’s sensing capabilities with this high-performance sensor.
Buy Pepperl+Fuchs NBB2-12GM40-Z0 now and experience unmatched reliability and performance thanks to advanced inductive sensing technology.
Frequently Asked Questions
Where can I buy Pepperl+Fuchs NBB212GM40Z0?
You can click on the BUY or RFQ button to purchase NBB212GM40Z0 from an authorized Pepperl+Fuchs distributor.
How do I troubleshoot issues or seek technical support for part NBB212GM40Z0?
You can download the NBB212GM40Z0 datasheet or visit the Pepperl+Fuchs website for support.
Who is the manufacturer of NBB212GM40Z0?
Pepperl+Fuchs
