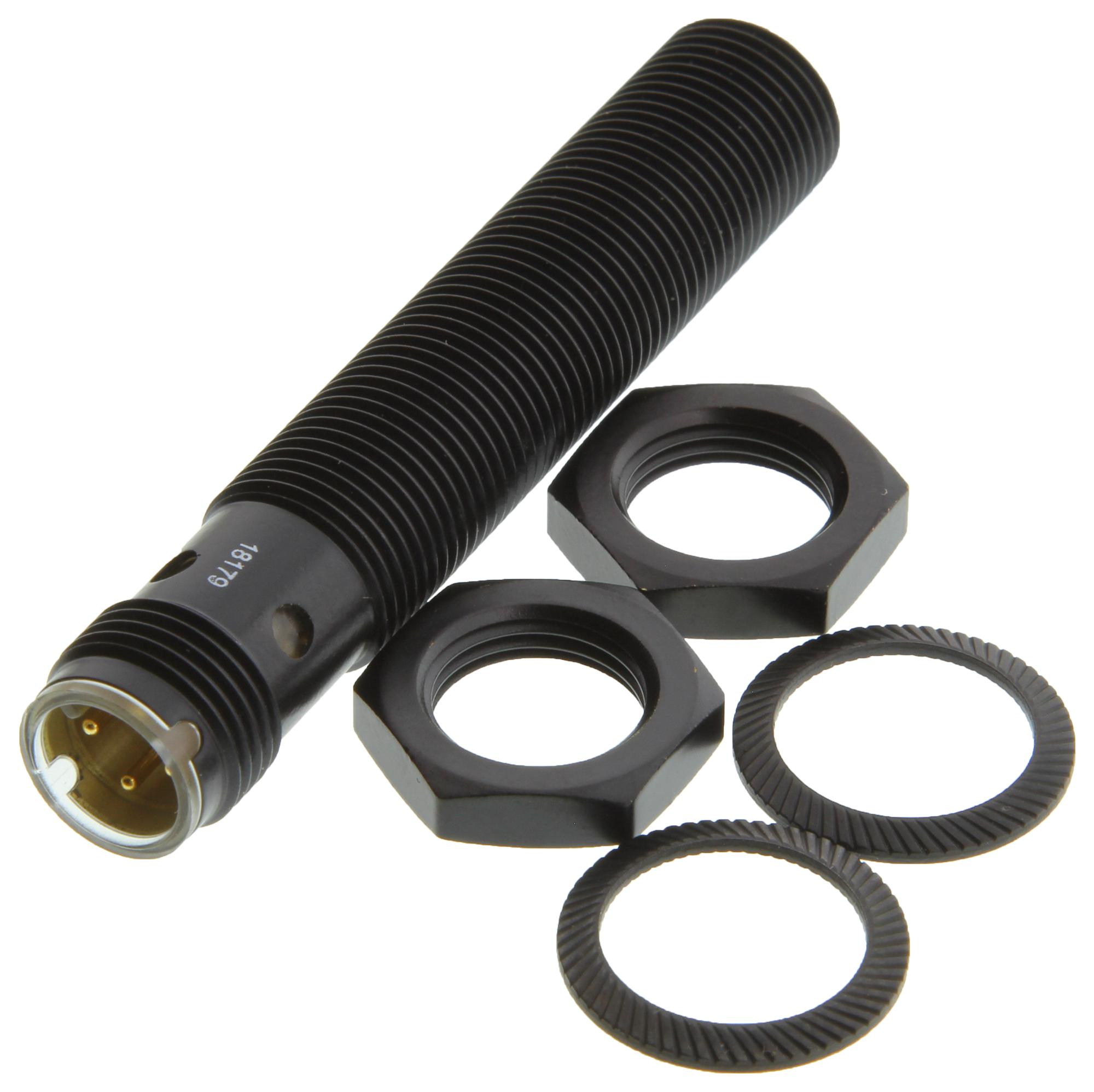

Pepperl+Fuchs NBB212GM50E2CV1 Inductive Sensor
The inductive sensor NBB2-12GM50-E2-C-V1 is a reliable, flush-mount PNP sensor designed for industrial applications. It offers a 2mm sensing distance with weld immunity, making it suitable for precise positioning and detection in harsh environments. Featuring a rugged construction with brass housing and PTFE coating, the sensor complies with IP67 standard, ensuring durability against dust and water. It operates within a voltage range of 10 to 30V DC, with a switching frequency of up to 1500 Hz, and includes reverse polarity protection for enhanced safety and longevity.
Pepperl+Fuchs NBB212GM50E2CV1 Inductive Sensor Specifications:
- Sensing Distance: 2 mm, flush mounting
- Switching Function: Normally Open (NO), PNP
- Operating Voltage: 10-30V DC
- Switching Frequency: up to 1500 Hz
- Hysteresis: approximately 5%
- Reverse Polarity Protection: Yes
- Voltage Drop: less than 3V
- Output Current: 0-200 mA
- Housing Material: Brass, PTFE coated
- Connection Type: M12x1, 4-pin connector
- Degree of Protection: IP67
- Ambient Temperature Range: -25°C to 70°C
- Standards and Certifications: EN 60947-5-2, IEC 60947-5-2
- UL, cULus, CSA approval
- Weld immune, durable in challenging environments
Buy the Pepperl+Fuchs NBB2-12GM50-E2-C-V1 – Reliable Inductive Sensor for Industrial Applications
Order the Pepperl+Fuchs inductive sensor NBB2-12GM50-E2-C-V1 online today and experience reliable, precise detection for industrial automation. Its flush-mount design with a 2mm sensing distance ensures accurate positioning even in challenging conditions. Featuring weld immunity and an IP67 rating, this durable sensor is protected against dust, water, and harsh environments. Designed for versatility, it operates within a 10 to 30V DC range with high switching frequency, reverse polarity protection, and robust brass housing with PTFE coating, making it ideal for demanding industrial applications.
Get Pepperl+Fuchs NBB2-12GM50-E2-C-V1 today—built for precision detection and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy Pepperl+Fuchs NBB212GM50E2CV1?
You can click on the BUY or RFQ button to purchase NBB212GM50E2CV1 from an authorized Pepperl+Fuchs distributor.
How do I troubleshoot issues or seek technical support for part NBB212GM50E2CV1?
You can download the NBB212GM50E2CV1 datasheet or visit the Pepperl+Fuchs website for support.
Who is the manufacturer of NBB212GM50E2CV1?
Pepperl+Fuchs
