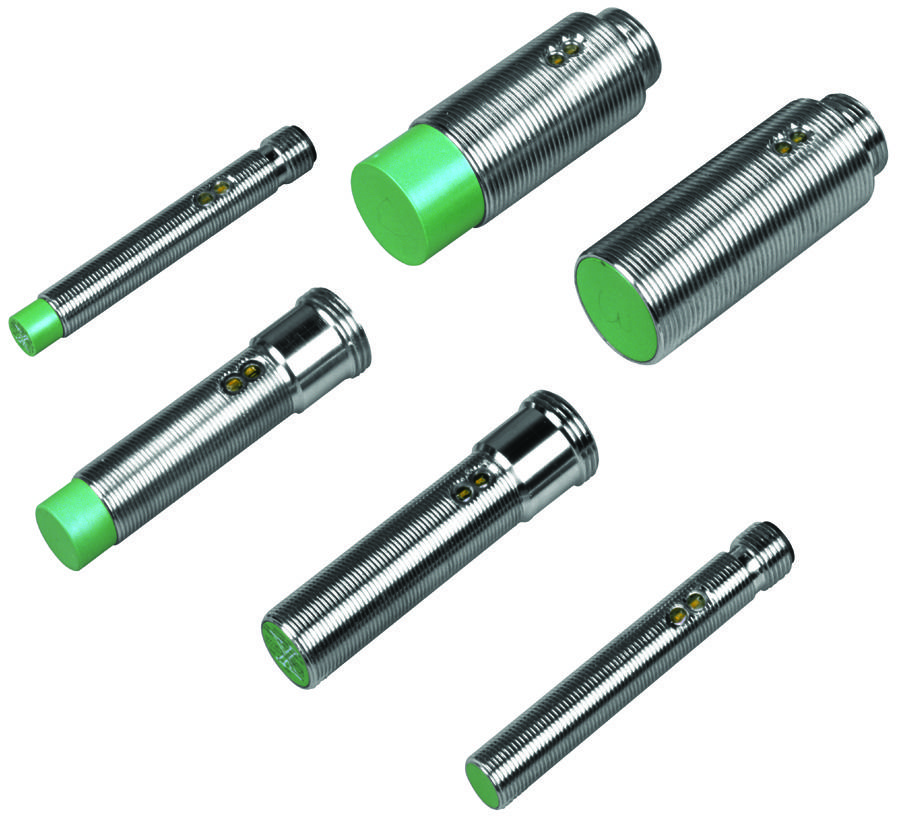

Pepperl+Fuchs NBB518GM50E2 inductive proximity sensor
The inductive proximity sensor features a PNP normally open switching output with DC polarity and an LED indicator for status. Its brass housing with nickel-plating ensures durability, while a PBT sensing face provides reliable detection. Designed for flush mounting with an 18mm diameter, it includes a 2-meter PVC cable and offers IP67 protection for harsh environments. Suitable for sensing and instrumentation, it protects against reverse polarity and short circuits, with specifications aligned for industrial automation and control systems, ensuring dependable operation in demanding applications.
Pepperl+Fuchs NBB518GM50E2 inductive proximity sensor Specifications:
- Switching element function: PNP NO
- Rated operating distance: 5mm
- Assured operating distance: 0... 4.05 mm
- Installation: flush mounting
- Output polarity: DC
- Housing material: brass, nickel-plated
- Sensing face: PBT
- Connection type: cable PVC, 2m
- Protection rating: IP67
- Operating voltage: unspecified, compatible with standard industrial voltage ranges
- Switching frequency: unspecified, suitable for standard automation applications
- Hysteresis: typ. 5%
- Reverse polarity protection: yes
- Short-circuit protection: pulsing
- Voltage drop: <3V
- Operating current: 0... 200mA
- Off-state current: 0... 0.5mA, typ. 0.1mA at 25°C
- No-load supply current: <20mA
- LED indicator: yellow for switching status
- Ambient temperature: -13°C to 70°C
- Degree of protection: IP67
- Standards and certifications: EN 60947-5-2:2007, UL, CSA, CCC
- Mounting flange: 18mm, IEC 60947-5-2:2007
Buy the Buy Pepperl+Fuchs NBB5-18GM50-E2 Inductive Sensor Part Number NBB518GM50E2 Online
Enhance your automation system with the durable inductive proximity sensor featuring PNP normally open output, brass housing, and IP67 protection. Its flush mount design, 2-meter PVC cable, and PBT sensing face make it ideal for sensing and instrumentation in harsh industrial environments. With reverse polarity and short circuit protections, it guarantees reliable operation. Suitable for factory automation, robotics, and safety systems, this sensor ensures precise detection and durability, making it a versatile choice for demanding applications.
Order your Pepperl+Fuchs NBB5-18GM50-E2 inductive sensor today and ensure reliable sensing with its durable brass housing and IP67 protection for tough environments.
