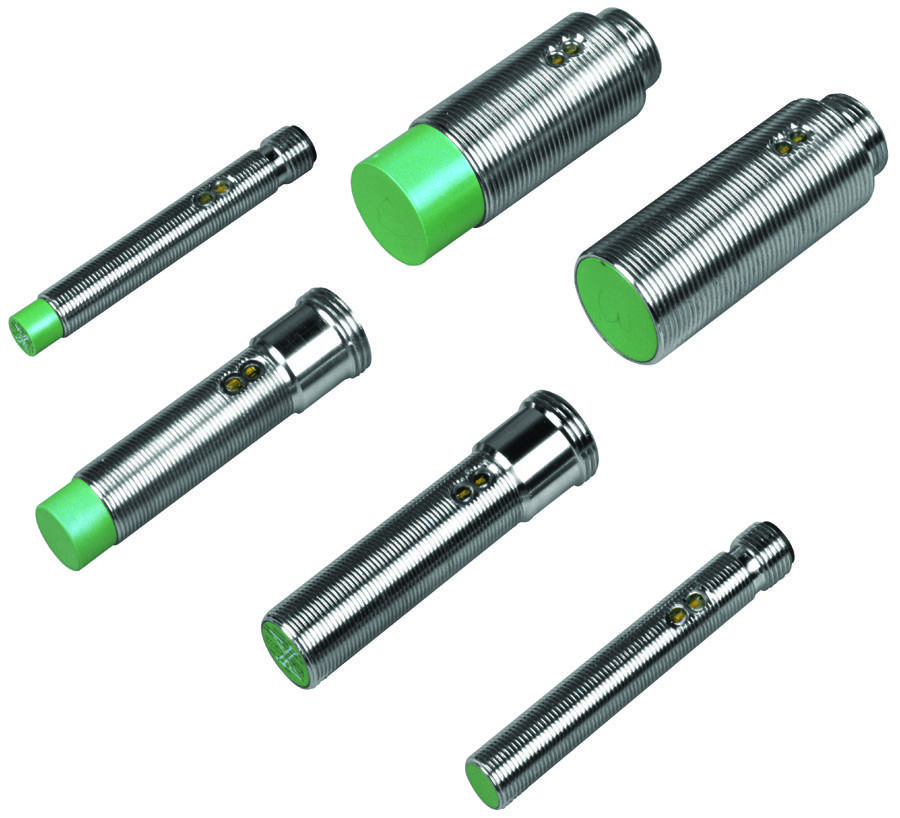

Pepperl+Fuchs NBB518GM50E2V1 Inductive Proximity Sensor
The NBB5-18GM50-E2-V1 is an inductive proximity sensor with a PNP normally open output, designed for reliable sensing in industrial environments. It features a compact 18mm diameter housing, suitable for flush mounting, and is constructed from durable brass with a nickel-plated surface. The sensor includes a yellow multihole LED indicator for status, a 4-pin M12 connector, and a PBT sensing face. It offers IP67 protection, reverse polarity and pulsing short-circuit protection, making it ideal for automation and machinery detection applications.
Pepperl+Fuchs NBB518GM50E2V1 Inductive Proximity Sensor Specifications:
- Detection Type: Inductive proximity sensor
- Switching Function: PNP normally open
- Sensing Distance: Typical 5 mm
- Housing Material: Brass, nickel-plated
- Connection Type: M12x 1, 4-pin connector
- Sensing Face: PBT
- Protection Rating: IP67
- Operating Voltage: Not specified
- Output Polarity: DC
- Reverse Polarity Protection: Yes
- Short-circuit Protection: Pulsing
- LED Indicator: Yellow multihole
- Ambient Temperature: -40°C to +70°C
- Standards: EN 60947-5-2:2007, IEC 60947-5-2:2007
- Rated Insulation Voltage: 800V
- Approvals: cULus Listed, cCSAus Listed
- Rated Impulse Withstand Voltage: 800V
Buy the Pepperl+Fuchs NBB5-18GM50-E2 – Reliable Sensing for Industrial Applications
Enhance your automation projects with the Pepperl+Fuchs NBB5-18GM50-E2 inductive proximity sensor. Featuring a compact 18mm brass housing, IP67-rated protection, reverse polarity and short-circuit pulsing protection, and a reliable sensing distance of 5mm, it is ideal for industrial sensing applications. Its durable construction ensures long-term performance, while the yellow LED indicator provides clear status indication. Easy to mount with a 4-pin M12 connector, this sensor delivers reliable operation in harsh environments—order online now to improve your automation systems.
Order your Pepperl+Fuchs NBB5-18GM50-E2 proximity sensor today and ensure dependable detection for your automation and machinery needs.
Frequently Asked Questions
Where can I buy Pepperl+Fuchs NBB518GM50E2V1?
You can click on the BUY or RFQ button to purchase NBB518GM50E2V1 from an authorized Pepperl+Fuchs distributor.
How do I troubleshoot issues or seek technical support for part NBB518GM50E2V1?
You can download the NBB518GM50E2V1 datasheet or visit the Pepperl+Fuchs website for support.
Who is the manufacturer of NBB518GM50E2V1?
Pepperl+Fuchs
