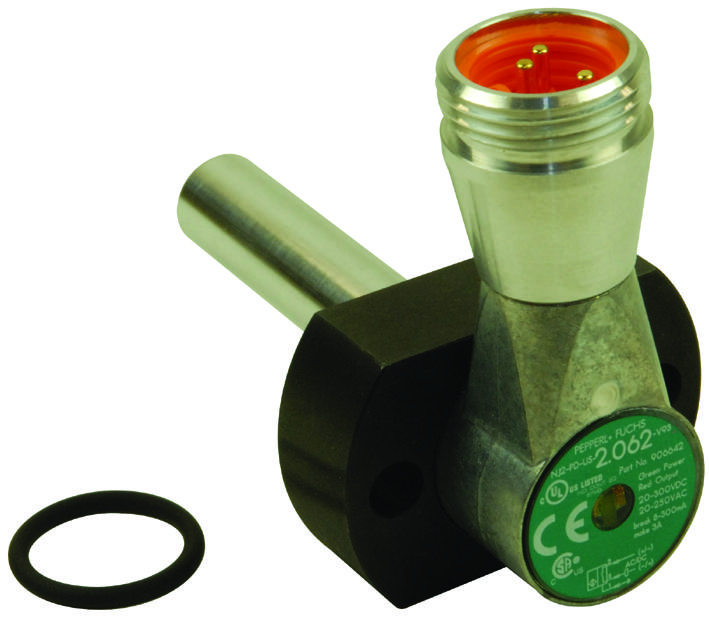

Pepperl+Fuchs NJ2PDUS2062V93 Cylinder Position Sensor
The NJ2-PD-US-2.062-V93 is an inductive cylinder position sensor with a robust zinc housing and aluminum probe, offering weld immunity, a sensing range of 2 mm, and NO contact switching. Designed for flush installation with a protection rating of IP67, it is suitable for sensing and instrumentation applications. Operating over 20 to 250 V AC/DC, it features LED indicators for power and output status, short-circuit protection, reverse polarity protection, and a maximum operating pressure of 3000 psi. Its compact size and rugged construction make it ideal for industrial environments requiring reliable position detection.
Pepperl+Fuchs NJ2PDUS2062V93 Cylinder Position Sensor Specifications:
- Housing Material: Zinc
- Probe Material: Aluminum
- Sensing Range: 2 mm
- Protection Rating: IP67
- Installation: Flush mount
- Operating Voltage: 20-250 V AC/DC
- Switching Element: NO contact
- Output Polarity: AC/DC NO
- Assured Operating Distance: 0 to 1.62 mm
- Reduction Factor ra: 0.4
- Reduction Factor rgo4: 0.85
- Rated Operating Pressure: 3000 psi
- Switching Frequency: 0-20 Hz
- Hysteresis: 10-20%, typical 15%
- Reverse Polarity Protection: Yes
- Short-Circuit Protection: Yes
- Voltage Drop: 7 V
- Operating Current: 8-3900 mA
- Off-State Current: <1.7 mA
- Magnetic Field Strength, AC: 250 mT
- Magnetic Field Strength, DC: 100 mT
- Ambient Temperature: -25°C to 70°C
- Connector: 7/8"-16 UN, 3-pin
- Dimensions: X = 2.062 in (52.4 mm)
Buy the Pepperl Fuchs Series Cylinder Position Sensor: NJ2-PD-US-2.062-V93
Purchase the Pepperl Fuchs Cylinder Position Sensor NJ2-PD-US-2.062-V93 online today for dependable industrial sensing solutions. Featuring a zinc housing, aluminum probe, and IP67 protection, it offers excellent weld immunity and a sensing range of 2 mm for precise position detection. Operates over a voltage range of 20-250 V AC/DC with status LEDs, short-circuit, and reverse polarity protection for maximum reliability. Its compact design and high-pressure rating of 3000 psi make it ideal for demanding environments requiring accurate and durable sensing performance.
Order your Pepperl Fuchs Series cylinder position sensor NJ2-PD-US-2.062-V93 today and enhance your industrial sensing and automation projects with reliable, weld-immune technology.
