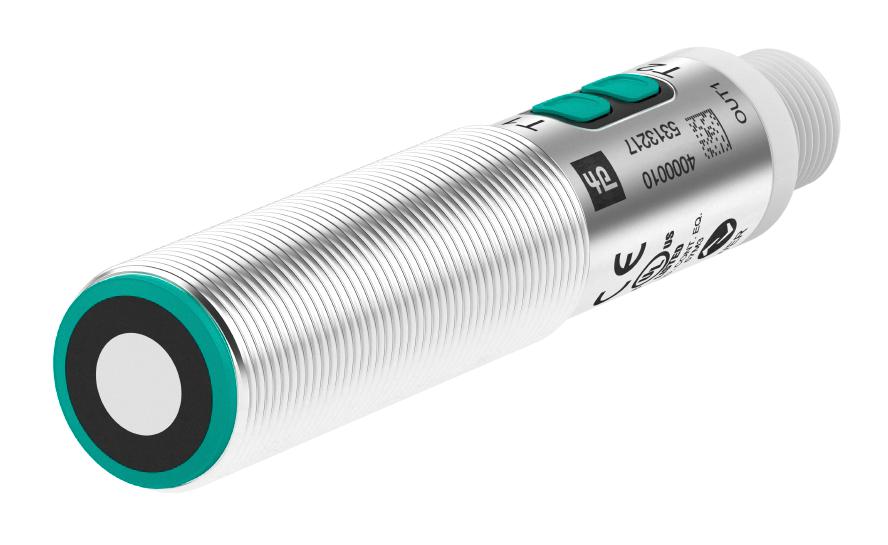

Pepperl+Fuchs UC50018GS2EPIOV15 Ultrasonic Detector
The UC500-18GS-2EP-IO-V15 ultrasonic sensor offers precise detection within a 30 to 500 mm range, featuring adjustable sound lobe width and high temperature stability. Its compact design integrates seamlessly into Industry 4.0 environments, supporting process data transmission via IO-Link for easy diagnosis and parameterization. Programmable via DTM with PACTWARE or infrared interface, it enables optimal adaptation to diverse applications. The sensor provides two push-pull outputs, enhanced temperature compensation, and quick response times, making it ideal for reliable presence and distance measurement in industrial automation.
Pepperl+Fuchs UC50018GS2EPIOV15 Ultrasonic Detector Specifications:
- Sensing Range: 30 to 500 mm
- Adjustment Range: 50 to 500 mm
- Dead Band: 0 to 30 mm
- Target Plate Size: 100 mm x 100 mm
- Transducer Frequency: approx. 300 kHz
- Response Delay: minimum 20 ms, factory setting 40 ms
- Sensor Cycle Time: > 10 ms (factory setting), programmable to 60 s
- Outputs: 2 Push-pull outputs
- Temperature Compensation: Yes, adjustable
- Housing: Compact and versatile
- Interface: IO-Link, IrDA
- Synchronization: Options available
- Installation: Single head system
Buy the Buy Pepperl+Fuchs Ultrasonic Sensor Part Number UC500-18GS-2EP-IO-V15 Online
Order the Pepperl+Fuchs ultrasonic detector online today to ensure reliable distance measurement with adjustable sound beam width, IO-Link connectivity, and quick response for industrial automation. Perfect for applications requiring precise, stable detection in challenging environments. Experience easy parameterization via DTM or IR interface, compact design for versatile installation, and robust temperature compensation. Enhance your process control with a high-performance ultrasonic sensor built for industrial settings, offering long-lasting durability and seamless integration into Industry 4.0 systems, all with a simple online purchase.
Get Pepperl+Fuchs UC500-18GS-2EP-IO-V15 today—designed for precise detection and seamless Industry 4.0 integration.
Frequently Asked Questions
Where can I buy Pepperl+Fuchs UC50018GS2EPIOV15?
You can click on the BUY or RFQ button to purchase UC50018GS2EPIOV15 from an authorized Pepperl+Fuchs distributor.
How do I troubleshoot issues or seek technical support for part UC50018GS2EPIOV15?
You can download the UC50018GS2EPIOV15 datasheet or visit the Pepperl+Fuchs website for support.
Who is the manufacturer of UC50018GS2EPIOV15?
Pepperl+Fuchs
