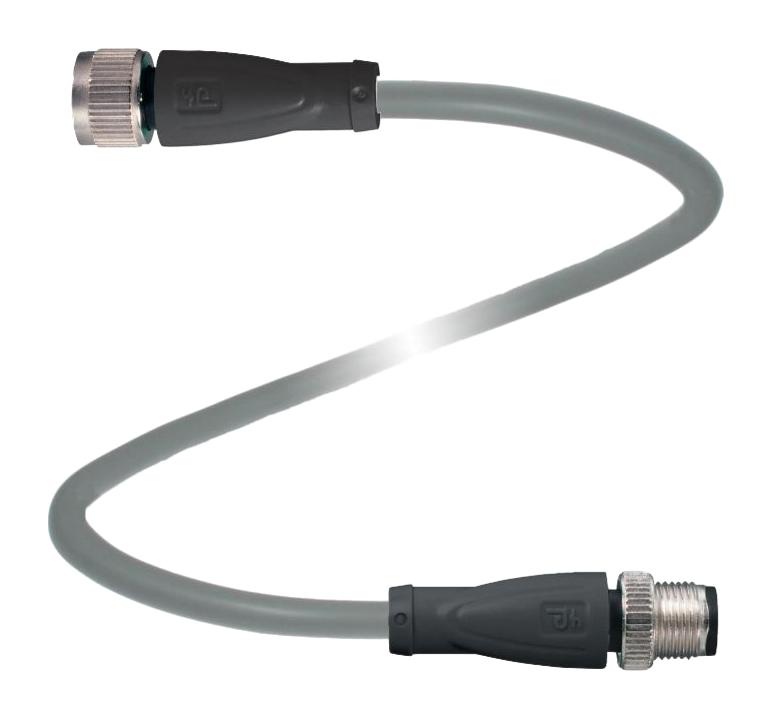

Pepperl+Fuchs V15G2MPURABGV15G Industrial Connection Cable
The V15-G-2M-PUR-ABG-V15-G is a shielded connection cable designed for industrial automation, featuring IP67/IP68/IP69 protection ratings, a 2-meter length, and a PUR sheath suitable for harsh environments. It incorporates a 5-pin M12 connector with screw connection, zinc die-casting, nickel-plated body, and core wires with color coding. This cable supports a maximum operating voltage of 48 V AC / 60 V DC, ensures chemical resistance, halogen-free construction, and mechanical robustness with high mating cycle durability, making it ideal for reliable signal and power transmission in challenging industrial settings.
Pepperl+Fuchs V15G2MPURABGV15G Industrial Connection Cable Specifications:
- Connector Type: M12 straight pin, screw connection, 5-pin, A-coded
- Cable Length: 2 meters
- Sheath Material: PUR, black, halogen-free
- Wire Configuration: 5 cores, color coded (brown, white, blue, black, grey)
- Core Cross-section: 0.34 mm²
- Shielding: Tinned copper braiding, 85% coverage
- Operating Voltage: Max. 48 V AC / 60 V DC
- Current Rating: Max. 4A
- Temperature Range: -40°C to +80°C
- Mechanical Durability: Up to 100 mating cycles
- Protection Class: IP67 / IP68 / IP69
- Bending Radius: >10x cable diameter when moving, >5x when fixed
- Tightening Torque: 0.6 Nm
- Chemical Resistance: Good
- Environmental Resistance: Dust, water, vibration resistant
- Cable Sheathing: TPU
Buy the Pepperl+Fuchs V15-G-2M-PUR-ABG-V15-G – Reliable Industrial Connection Cable for Automation
Purchase the Pepperl+Fuchs V15-G-2M-PUR-ABG-V15-G shielded connection cable now. Designed for industrial automation, it features IP67/IP68/IP69 protection, a durable PUR sheath, and robust screw connections. With a 2-meter length, high mating cycle resistance, halogen-free construction, and excellent chemical resistance, this cable ensures reliable data and power transmission even in harsh environments. Its internal wiring includes five color-coded cores, supporting up to 4A at 48V AC/DC, making it ideal for demanding industrial applications requiring durability and precision in signal transmission.
Get Pepperl+Fuchs V15-G-2M-PUR-ABG-V15-G today—built for durability and reliable industrial signal transmission in challenging environments.
Frequently Asked Questions
Where can I buy Pepperl+Fuchs V15G2MPURABGV15G?
You can click on the BUY or RFQ button to purchase V15G2MPURABGV15G from an authorized Pepperl+Fuchs distributor.
How do I troubleshoot issues or seek technical support for part V15G2MPURABGV15G?
You can download the V15G2MPURABGV15G datasheet or visit the Pepperl+Fuchs website for support.
Who is the manufacturer of V15G2MPURABGV15G?
Pepperl+Fuchs
