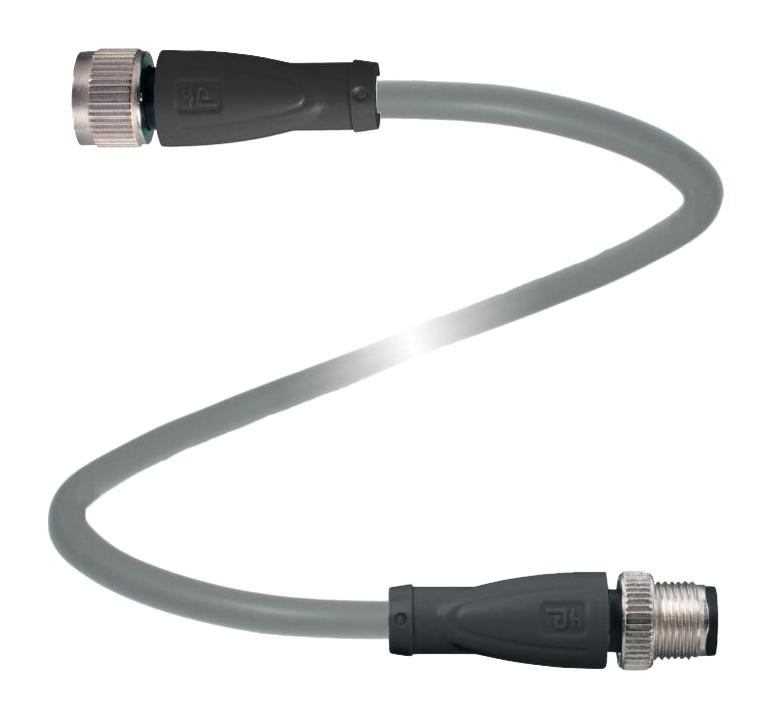

Pepperl+Fuchs V15G5MPURABGV15G Industrial Shielded M12 Cable
This shielded connection cable features a robust M12 straight connector with a 5-pin A-coded configuration, compatible with industrial automation systems. It is designed for reliable signal transmission in harsh environments, with a degree of protection IP67/IP68/IP69, halogen-free cable, and shielded construction connected to screw terminals. The cable is suitable for both fixed and flexible applications, with a 5-meter length, modular design, and excellent chemical resistance. Built for vibration immunity and mechanical latching, it ensures long-lasting performance in demanding industrial settings.
Pepperl+Fuchs V15G5MPURABGV15G Industrial Shielded M12 Cable Specifications:
- Connector: M12 straight, 5-pin, A-coded, screw connection
- Operating voltage: max. 48V AC / 60V DC
- Operating current: max. 4A
- Degree of protection: IP67/IP68/IP69
- Cable length: 5 meters
- Sheath diameter: 6.8mm
- Sheath color: grey (similar to RAL 7001)
- Core cross-section: 0.34 mm²
- Cores: 5 cores (brown, white, blue, black, grey)
- Shield: Tinned copper braiding, 85% coverage
- Material: PUR outer sheath
- Bending radius: >10x cable diameter under moving conditions, >5x cable diameter when fixed
- Mechanical specs: Max. tightening torque 0.6 Nm, 100+ mating cycles
- Temperature range: -40°C to 90°C
- Chemical resistance: Good
- Conformity: IEC 61076-2-101, DIN EN 50267-2-1
- Certification: UL, CE compliant
- Connection: Screw terminal shield connection, suitable for vibration and mechanical latching
- Additional info: Shield connected to screw connection, minimal sheath stripping force, black TPU cable outer
- Certification: UL Listed, IP69 rating
- Application: Suitable for industrial automation, sensors, control systems, and machinery connections
Buy the Pepperl+Fuchs V15G5MPURABGV15G – Reliable Shielded Connection Cable for Industrial Applications
Order the Pepperl+Fuchs V15G5MPURABGV15G shielded connection cable online today. Designed for industrial automation, this 5-meter cable offers IP67/IP68/IP69 protection, reliable screw connection, and excellent chemical and vibration resistance. It features a robust PUR outer sheath, 5-pin A-coded connector, and shielded construction ensuring secure signal transmission under demanding conditions. Ideal for sensors, control systems, and automated machinery, this cable guarantees long-lasting performance, easy installation, and compliance with international standards, making it the perfect choice for industrial applications.
Get Pepperl+Fuchs V15G5MPURABGV15G today—built for industrial automation with durable shielded connection and IP69 protection.
Frequently Asked Questions
Where can I buy Pepperl+Fuchs V15G5MPURABGV15G?
You can click on the BUY or RFQ button to purchase V15G5MPURABGV15G from an authorized Pepperl+Fuchs distributor.
How do I troubleshoot issues or seek technical support for part V15G5MPURABGV15G?
You can download the V15G5MPURABGV15G datasheet or visit the Pepperl+Fuchs website for support.
Who is the manufacturer of V15G5MPURABGV15G?
Pepperl+Fuchs
