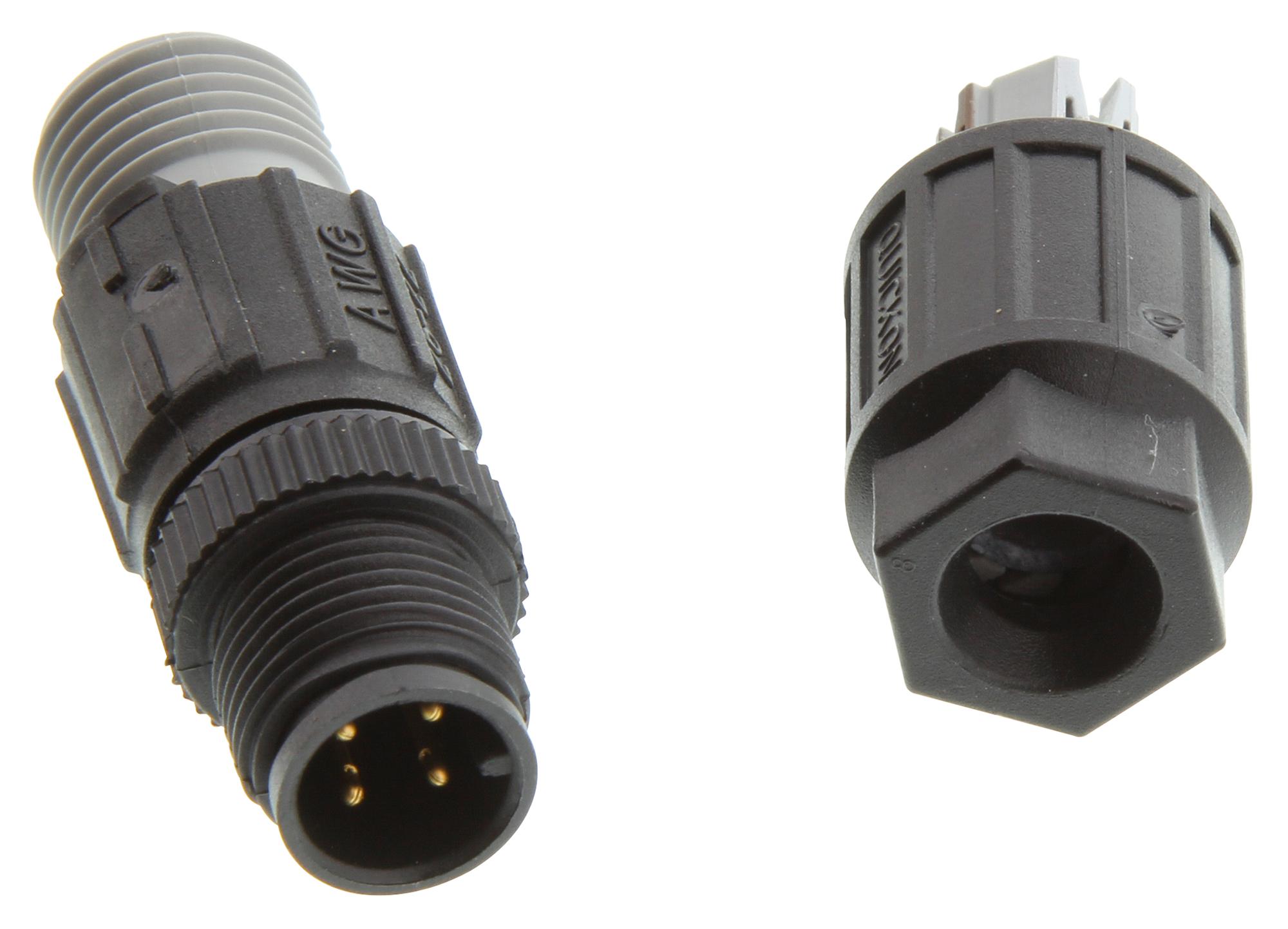

Pepperl+Fuchs V1SGQ3 Industrial Sensor Connector
The V1S-G-Q3 FIELD-ATTACHABLE MALE QUICKON-ONE CONNECTOR by Pepperl-Fuchs is designed for quick, tool-free assembly with a vibration-proof, gas-tight contact. Its innovative blade contact mechanism eliminates the need for wire stripping, saving time during sensor cable connections. Featuring a robust IP65/IP67 protection rating, it supports operating voltages up to 125V and currents up to 4A. Constructed from durable black PA 66 plastic with Ni/Au contacts, it suits industrial automation applications requiring reliable, corrosion-resistant connectivity.
Pepperl+Fuchs V1SGQ3 Industrial Sensor Connector Specifications:
- Number of pins: 4
- Construction type: male connector, straight
- Threading: mi2
- UL File Number: E191152
- Operating voltage: max. 125 V
- Operating current: max. 4A
- Volume resistance: <5mΩ
- Ambient temperature: -25°C to 80°C
- Degree of protection: IP65/IP67
- Material: PA 66, black plastic
- Contacts: Ni/Au plated
- Body: black plastic
- Seal: NBR
- Cable diameter: 3.5 to 6mm
- Core insulation: 0.7 to 1.6mm including insulation
- Max. cable cross-section: 0.14 to 0.34 mm²
- Cable construction: Class 2-6 VDE 0295
- Tightening torque: < 0.8 Nm
Buy the Pepperl-Fuchs Series V1S-G-Q3 M12 Connector: V1S-G-Q3
Purchase the Pepperl-Fuchs V1S-G-Q3 male QUICKON connector online today. This easy-to-assemble, vibration-proof connector ensures quick sensor cable connections with gas-tight contacts. Its durable construction from black PA 66 plastic with Ni/Au plated contacts offers excellent resistance to corrosion and environmental factors. Suitable for industrial automation, it supports up to 125V and 4A, with an IP65/IP67 rating for harsh conditions. Simplify your sensor wiring with this reliable, high-quality connector—order now for fast delivery and seamless integration.
Get Pepperl-Fuchs V1S-G-Q3 today—built for quick, reliable industrial sensor connections with durable, corrosion-resistant design.
Frequently Asked Questions
Where can I buy Pepperl+Fuchs V1SGQ3?
You can click on the BUY or RFQ button to purchase V1SGQ3 from an authorized Pepperl+Fuchs distributor.
How do I troubleshoot issues or seek technical support for part V1SGQ3?
You can download the V1SGQ3 datasheet or visit the Pepperl+Fuchs website for support.
Who is the manufacturer of V1SGQ3?
Pepperl+Fuchs
