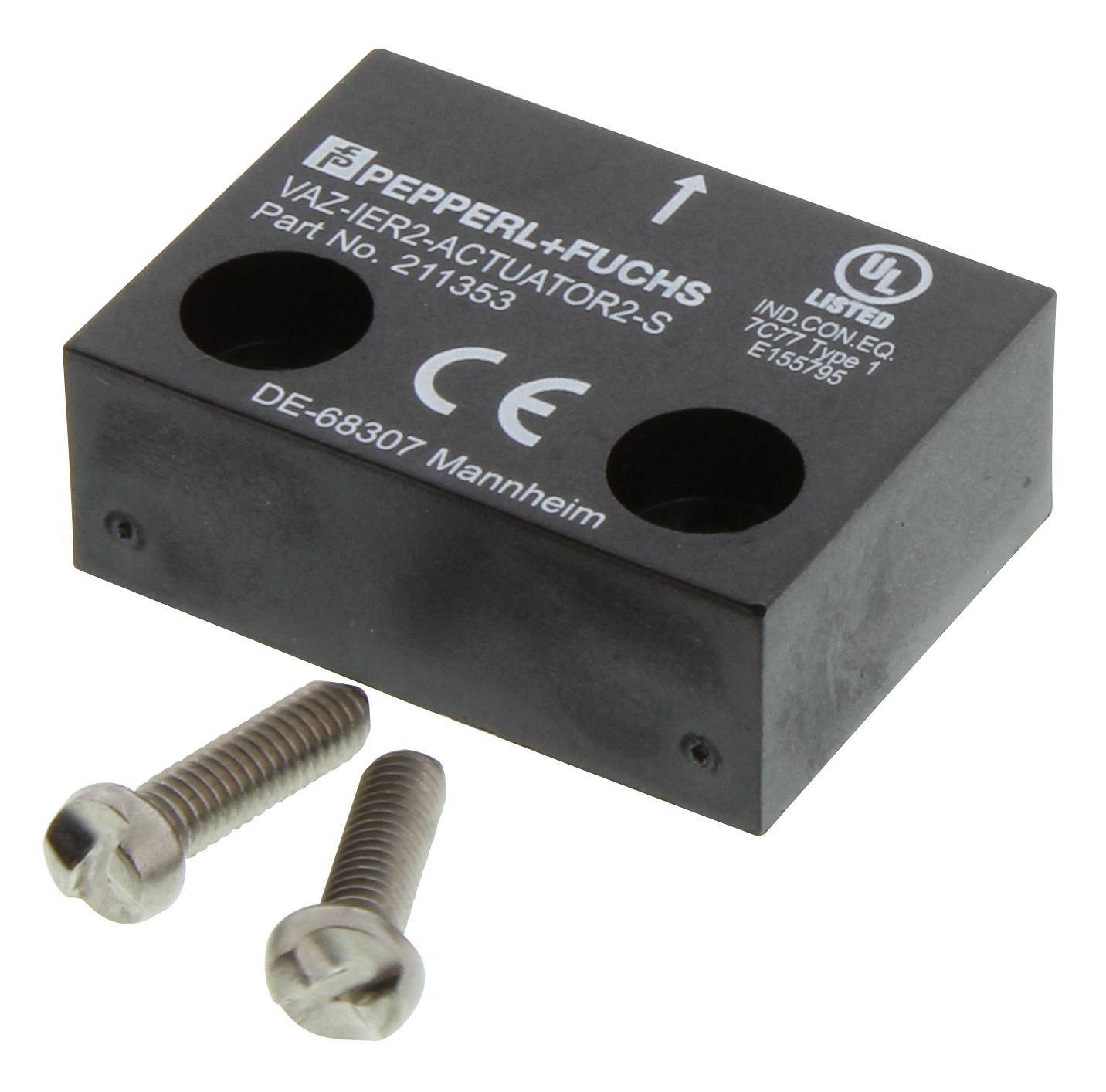

Pepperl+Fuchs VAZIER2ACTUATOR2S Safety Switch
The Safety Switch VAZ-IER2-ACTUATOR2 features a magnetically-coded actuator within a compact plastic housing, optimized for small doors and coverings. It ensures reliable non-contact detection via AS-Interface, with an operating distance of up to 3mm and a magnetic offset of 2.5mm. Compliant with IEC 60947-5-3 and EN 62026-2 standards, it provides robust electromagnetic compatibility and a durable IP67 degree of protection. Suitable for machinery safety applications, it includes safety screws and an active surface facing the read head for secure installation.
Pepperl+Fuchs VAZIER2ACTUATOR2S Safety Switch Specifications:
- Detection type: Reed safety switch with non-contact AS-Interface
- Operating distance: 3mm with magnetic offset of 2.5mm
- Degree of protection: IP67
- Housing material: PPS (Polyphenylene sulfide)
- Ambient temperature: -20°C to +60°C
- Standard conformity: EN 62026-2, IEC 60947-5-3, EN ISO 12100-1/-2
- Electromagnetic compatibility: EN 60529, EN ISO 13849-1 (up to category 3/PL e)
- Active face facing read head, mass approximately 209g
- Installation: Includes 2 safety screws M4x14
- Scope of delivery: 1 actuator, 2 safety screws, M4x14
Buy the Pepperl Fuchs VAZ-IER2-ACTUATOR2-S – Reliable Safety Switch for Industrial Applications
Enhance your safety system with the Pepperl Fuchs Safety Switch featuring magnetically-coded detection for reliable non-contact operation. Its compact design and IP67 protection make it ideal for small doors and coverings in industrial environments. Compliant with international safety standards, this switch offers precise detection distances of up to 3mm with a magnetic offset of 2.5mm. The included safety screws ensure secure installation, and its robust PPS housing guarantees durability. Upgrade your machinery safety with this dependable, easy-to-install safety switch for optimal protection and compliance.
Buy Pepperl Fuchs VAZ-IER2-ACTUATOR2-S now and experience unmatched reliability and performance in machinery safety solutions.
