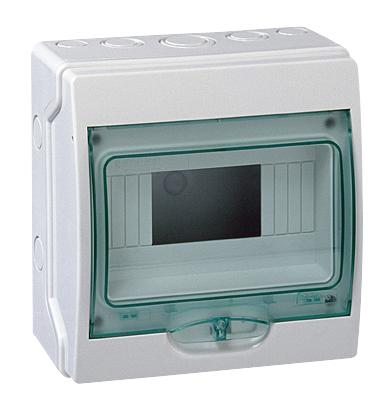

Schneider Electric 13443 Weatherproof Enclosure
The mini Kaedra weatherproof enclosure is designed for modular devices with 1 opening, featuring 8 modules and 4 terminal blocks. Made from self-extinguishing polymer, it ensures high safety and durability for industrial applications. Its IP65 rating provides excellent dust and water resistance, meeting IEC 60529 standards, while the transparent green door allows easy visual inspection. Suitable for surface mounting, the enclosure offers robust protection, double insulation, and a power dissipation of 15W. Designed for environments up to 60°C, it combines reliability with ease of installation for control and automation systems.
Schneider Electric 13443 Weatherproof Enclosure Specifications:
- Enclosure Width: 195 mm
- Height: 200 mm
- Depth: 112 mm
- Material: Self-extinguishing polymer
- Color: Light grey enclosure, transparent green door
- Protection: IP65 conforming to IEC 60529
- IK Degree of Protection: IK09 complying with EN 50102
- Temperature Range: -25°C to +60°C
- Power Dissipation: 15W
- Rated Current: 63 A
- Enclosure type: Mini weatherproof device enclosure
- Number of Modules: 8
- Number of Terminal Blocks: 4 with 4 holes each
- Standards: EN 50102, IEC 60439-3, IEC 60529, IEC 60695-2-1, IEC 670
- Overvoltage Category: Not specified
- UV Resistance: Class 3 according to ISO 4582 2010, conforming to ISO 4892-2 2013
- Mounting: Surface mounting
- Ingress Protection: IP65 according to IEC 60529
- Fire Resistance: Conforming to IEC 60695-2-1 at 650°C
Buy the Buy Schneider Electric Mini Enclosure Part Number 13443 Online
Purchase the Schneider Electric weatherproof mini enclosure online today for your modular control device needs. Featuring IP65 protection, durable self-extinguishing polymer construction, transparent green door, and compatibility with 8 modules and 4 terminal blocks. Easy to install with surface mounting options, this enclosure ensures safety, reliability, and environmental resistance for industrial environments operating between -25°C and 60°C. Enhance your automation projects with trusted protection that adheres to international standards. Shop now for quick delivery and exceptional quality.
Order your Schneider Electric Series13443 weatherproof mini enclosure today and ensure your control systems are protected with reliable, high-quality enclosures.
Frequently Asked Questions
Where can I buy Schneider Electric 13443?
You can click on the BUY or RFQ button to purchase 13443 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part 13443?
You can download the 13443 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of 13443?
Schneider Electric
