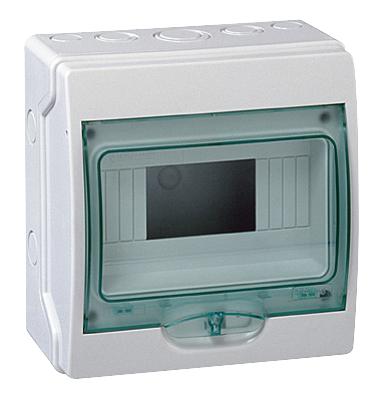

Schneider Electric 13444 Industrial Weatherproof Enclosure
This weatherproof enclosure is designed for modular devices, supporting 12 modules with a single horizontal row, made from UV resistant, self-extinguishing polymer. It features a transparent green front door, light grey enclosure, and includes 2 terminal blocks with 8 outgoers each. With a compact size of 267mm width, 200mm height, and 112mm depth, it offers IP65 protection against dust and water, plus IK09 impact resistance. Suitable for industrial applications, the enclosure complies with standards like IEC 60529 and EN 50102, providing reliable environmental resilience and ease of mounting for electrical installations.
Schneider Electric 13444 Industrial Weatherproof Enclosure Specifications:
- Enclosure type: Mini weatherproof for modular device
- Material: Self-extinguishing polymer
- Color: Door: transparent green, Enclosure: light grey RAL 7035
- Dimensions: Width 267 mm, Height 200 mm, Depth 112 mm
- Modules supported: 12, 1 horizontal row
- Electrical insulation: Double insulation, Class II
- Power dissipation: 19 W
- Rated current: 63 A
- Type of front cover: Transparent
- Mounting: Surface mounted
- Protection degree: IP65 according to IEC 60529
- Impact protection: IK09 according to EN 50102
- Environmental resistance: UV resistant class 3, conforming to ISO 4582 2010, and UV degradation test ISO 4892-2 2013
- Standards: EN 50102, IEC 60695-2-1, IEC 670, IEC 60439-3, EN 50262, IEC 60529
- Fire resistance: 650°C conforming IEC 60695-2-1
- Temperature range: -25°C to +60°C
- Included accessories: 1 marking kit and 2 terminal blocks with 8 holes
- Locking options: Optional keylock
Buy the Weatherproof Enclosure Series 13444 Modular Device: 13444
Secure your electrical installations with this industrial weatherproof enclosure designed for modular devices. Crafted from UV resistant, self-extinguishing polymer, it supports 12 modules in a compact size. Featuring IP65 protection, impact resistance IK09, and compliance with international standards such as IEC 60529 and EN 50102, this enclosure offers outstanding environmental resilience. It includes terminal blocks, a transparent green front door, and optional lock features. Ideal for industrial and outdoor control applications, ensuring safety, durability, and easy mounting for your electrical needs.
Order your Weatherproof Enclosure Series 13444 modular device today and ensure reliable protection and easy mounting for your industrial electrical projects.
Frequently Asked Questions
Where can I buy Schneider Electric 13444?
You can click on the BUY or RFQ button to purchase 13444 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part 13444?
You can download the 13444 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of 13444?
Schneider Electric
