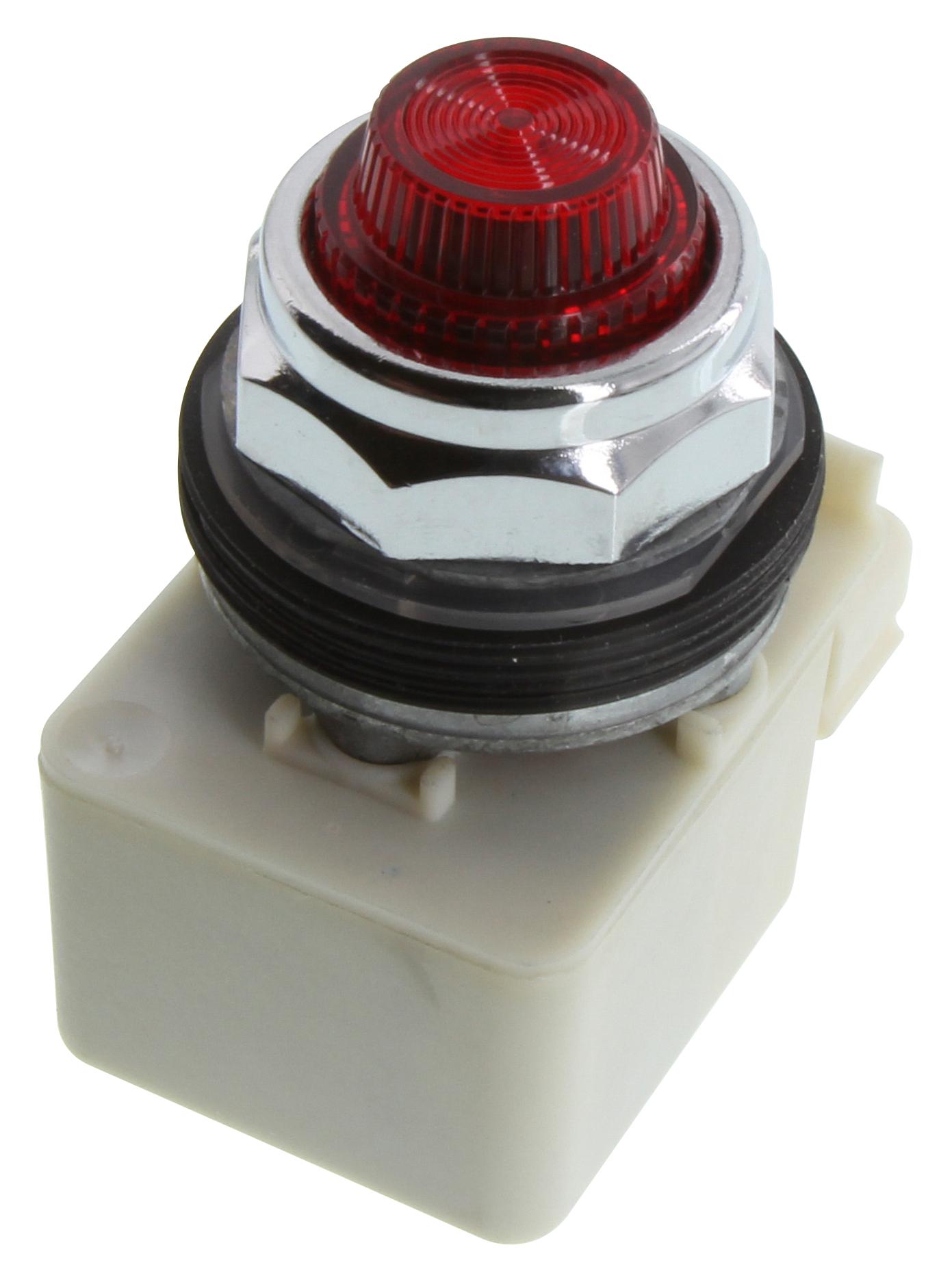

Schneider Electric 9001KP7R31 Pilot Light Indicator
The 9001KP7R31 pilot light is a reliable indicator light designed for industrial control panels and machinery. It features a round, chrome-plated metal bezel, a red Fresnel plastic lens, and an incandescent light source with a BA Qs bulb base. Suitable for mounting with a 30mm diameter, it operates on 220-240 VAC with an integral transformer providing 6 V. The device connects via screw clamp terminals and is protected to IP66, ensuring durability in harsh environments. Certified to multiple standards, it offers dependable visibility and robust construction for industrial applications.
Schneider Electric 9001KP7R31 Pilot Light Indicator Specifications:
- Mounting diameter: 30mm
- Bezel material: Chromium plated metal
- Lens type: Fresnel plastic
- Cap/lens colour: Red
- Light source: Incandescent
- Bulb base: BA Qs
- Supply voltage: 220-240 V AC with integral transformer (6V)
- Connections: Screw clamp terminals, 1 x 0.22-2 x 1.5 mm², IEC 60947-1
- IP degree of protection: IP66
- Operating temperature: -25°C to +70°C
- Vibration resistance: 7 gn
- Shock resistance: 50 gn
- Rated insulation voltage: 250 V
- Impulse withstand voltage: 2.5 kV
- Short-circuit protection: 10A fuse
- Dimensions: Overall width 54mm, height 70mm, depth 42mm
- Weight: 0.21 kg
Buy the Dynapar 9001KP7R31 – Reliable Indicator Light for Industrial Applications
Purchase the Dynapar 9001KP7R31 pilot light online today and enhance your machinery with a reliable, IP66-rated indicator. Its robust construction and metal bezel ensure durability in demanding environments. Ideal for control panels requiring visibility and safety, it operates smoothly on 220-240VAC with an integral transformer. The easy-to-install screw clamp terminals and compact dimensions make it suitable for various industrial setups. Trust the quality and compliance of this certified pilot light to deliver consistent performance and safety in your operations.
Order your Dynapar Series 9001KP7R31 indicator light today and ensure clear signaling in your control panels with durable, high-quality design.
Frequently Asked Questions
Where can I buy Schneider Electric 9001KP7R31?
You can click on the BUY or RFQ button to purchase 9001KP7R31 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part 9001KP7R31?
You can download the 9001KP7R31 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of 9001KP7R31?
Schneider Electric
