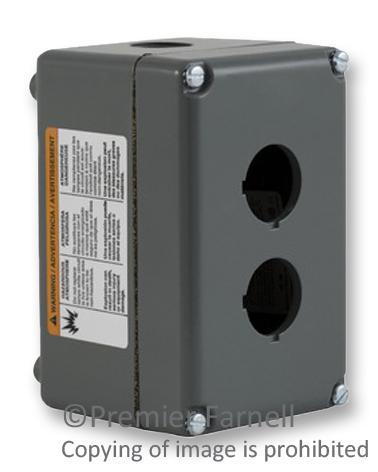

Schneider Electric 9001KY2 Control Station Enclosure
The 9001KY2 is a two-hole control station enclosure crafted from zinc-plated aluminum, designed for 30mm control and signaling units. It features a cast aluminium body, with one tapped cable entry for 3/4-inch gland and two additional cut-outs, suitable for industrial, sensing, instrumentation, and automotive applications. Conforming to IEC 61140 Class II standards, it offers protection against electric shocks and has a NEMA 13 rating, ensuring reliable performance in harsh environments. The enclosure operates in temperatures from -40°C to 70°C, with TH protective treatment enhancing durability and lifespan.
Schneider Electric 9001KY2 Control Station Enclosure Specifications:
- Material: Zinc-plated aluminum
- Typology: Empty control station enclosure
- Number of holes: Two
- Cable entry: Tapped for 3/4-inch gland
- Protection: NEMA 13, IEC 61140 Class II
- Operating temperature: -40°C to 70°C
- Protection treatments: TH protective treatment
- Weight: 1.28 kg (2.82 lb)
- Dimensions: Length 146.1 mm (5.75 in), Width 114.3 mm (4.50 in)
- Enclosure type: Two-hole, conforming to IEC standards
- Environmental resistance: Suitable for industrial environments
Buy the Buy Schneider 9001KY2 Control Station Enclosure Part Number 9001KY2 Online
Secure your automation and control systems with the Schneider 9001KY2 enclosure. Crafted from durable zinc-plated aluminum, it features a two-hole design with tapped cable entry for 3/4-inch glands. Certified NEMA 13, IEC Class II, it offers exceptional protection in harsh industrial environments. Suitable for sensing, instrumentation, and automotive applications, it operates between -40°C and 70°C. Enhance your system’s reliability by purchasing this robust, protective enclosure online today—integrate quality, safety, and long-lasting performance effortlessly.
Get Schneider 9001KY2 today—designed for industrial protection, durability, and reliable control signaling.
Frequently Asked Questions
Where can I buy Schneider Electric 9001KY2?
You can click on the BUY or RFQ button to purchase 9001KY2 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part 9001KY2?
You can download the 9001KY2 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of 9001KY2?
Schneider Electric
