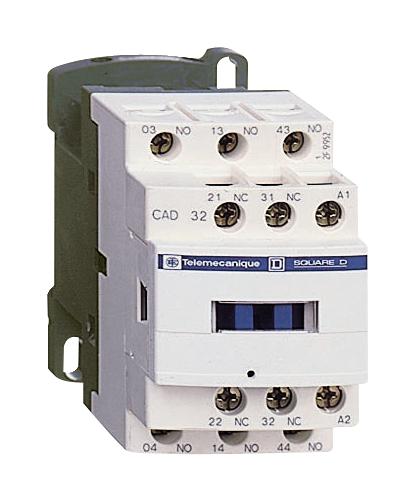

Schneider Electric CAD32T7 Control Relay
The control relay is a versatile square D device rated at 10A, equipped with 3 NO and 2 NC contacts for control circuits. It is designed for operation at 480VAC, supporting diverse applications in automation and control systems. With DIN rail mounting support, the relay ensures easy installation and reliable performance. It complies with multiple standards including UL and CSA, and adheres to environmental regulations such as RoHS. Its robust construction is suitable for demanding industrial environments, making it an essential control component for various industrial control and automation systems.
Schneider Electric CAD32T7 Control Relay Specifications:
- Rated current: 10 A
- Pole contact composition: 3 NO + 2 NC
- Rated operational voltage: <= 690 VAC, 480 V AC standard coil
- Utilisation category: De-13, AC-15, AC-14
- Rated impulse withstand voltage: 6 KV IEC 60947
- Operating time: 12-22 ms (coil energisation and NO closing), 4-12 ms (coil de-energisation and NO opening)
- Mechanical durability: 30 million cycles
- Control circuit voltage: 480 VAC 50/60 Hz
- Insulation resistance: >10 MΩ
- Protection degree: IP2x front face
- Dimensions: Height 3.03 in (77 mm), Width 1.77 in (45 mm), Depth 3.31 in (84 mm)
- Net weight: 1.28 lb (0.58 kg)
- Standards: EN 60947-5, IEC 60947-5-1, UL, CSA
- Environmental: Operates from -40°C to 70°C, altitude up to 3000 m
Buy the Buy Square D Control Relay Part Number CAD32T7 Online
Purchase the Square D control relay CAD32T7 online today to ensure robust performance and seamless integration into your control systems. Rated at 10A, it features 3 normally open and 2 normally closed contacts, designed for operations up to 480VAC. This DIN mount relay offers quick installation, durability for 30 million cycles, and compliance with key industry standards including UL and CSA. Ideal for industrial automation, automation, and control panel applications, it’s the perfect choice for reliable, high-quality control performance.
Buy Square D CAD32T7 control relay now and experience unmatched reliability and performance in industrial automation.
Frequently Asked Questions
Where can I buy Schneider Electric CAD32T7?
You can click on the BUY or RFQ button to purchase CAD32T7 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part CAD32T7?
You can download the CAD32T7 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of CAD32T7?
Schneider Electric
