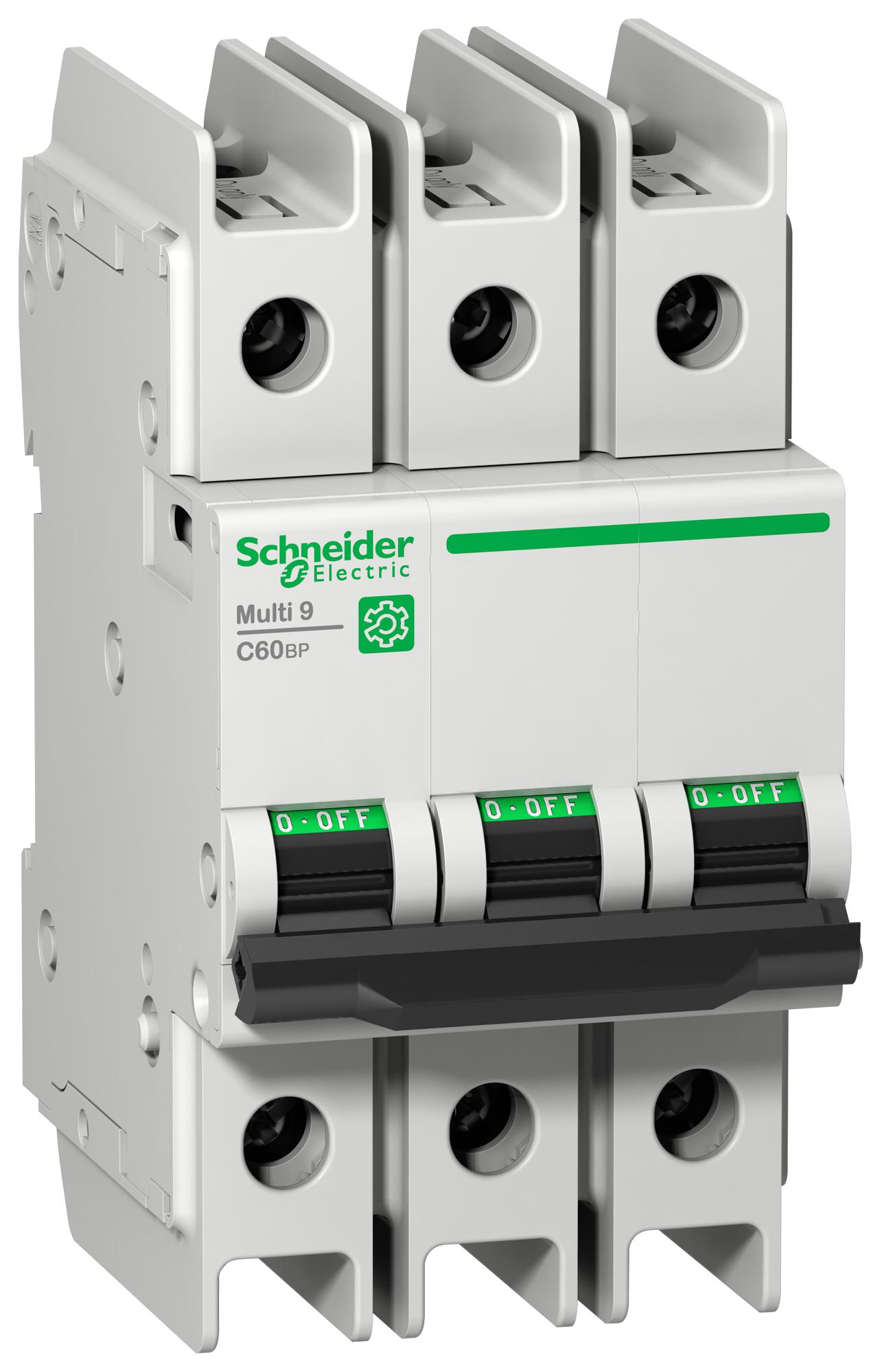

Schneider Electric M9F43330 Circuit Breaker
This is a Schneider Electric thermal magnetic circuit breaker with a 3-pole configuration, rated for 30A current. It is designed for use with 480Y/277VAC and 60VDC systems. The breaker features a lever handle, box lug terminals, and follows a D trip curve. It complies with UL 489 standards and is intended for installation in specified regions, including California, Northern Nevada, and select counties in Oregon and Washington.
Schneider Electric M9F43330 Circuit Breaker Specifications:
- Rated current: 30A
- Number of poles: 3P
- Voltage rating: 480Y/277VAC and 60VDC
- Trip curve: D curve
- Terminals: Box lug terminals
- Operating temperature: -35°C to +70°C
- Endurance: 10,000 electrical cycles, 20,000 mechanical cycles
- Insulation voltage: 500V
- Pollution degree: 3
- Degree of protection: IP20
- Insulation class: I
- Rated impulse withstand voltage: 6kV
- Self-extinguishability: 960°C for 30 seconds
- Standards: UL 489, CSA C22.2 No 5, IEC/EN 60947-2, GB 14048-2
Buy the Schneider Series Circuit Breaker: 3-Pole 30A UL 489
Purchase the Schneider Electric 30A 3-pole circuit breaker online for reliable short-circuit and overload protection. Designed for industrial usage with UL 489 compliance, it features easy-to-use box lug terminals, robust construction, and a D trip curve for precise performance. Perfect for distribution panels requiring durable and safe circuit protection. Order now to ensure your electrical systems are protected with high-quality, UL-listed equipment that guarantees safety, longevity, and easy installation in demanding environments.
Get Schneider Electric 30A 3-pole circuit breaker today—built for precision and long-lasting durability in industrial protection systems.
Frequently Asked Questions
Where can I buy Schneider Electric M9F43330?
You can click on the BUY or RFQ button to purchase M9F43330 from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part M9F43330?
You can download the M9F43330 datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of M9F43330?
Schneider Electric
