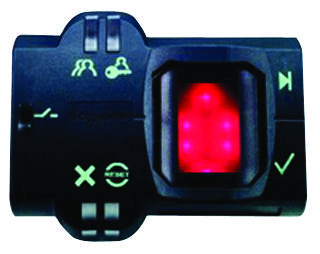

Schneider Electric XB5S2B2L2 Biometric Security Switch

The XB5S2B2L2 is a biometric switch equipped with a fingerprint reader for secure access control in industrial environments. It features a pre-wired cable connection, a rugged polyamide PA66 enclosure with a dark grey plastic bezel, and provides reliable, momentary operation with IP65 front and IP20 rear protection. Suitable for materials handling and automation, it supports up to 200 users, offers reverse polarity and short-circuit protection, and complies with IEC, UL, and CSA standards. Its compact design and robust features make it ideal for demanding security applications.

Authorized Distributors
Source:Newark
Part No:XB5S2B2L2
Stock:7
Inv Date:06-08-2026
Price: Unit price: $461.28
Buy/RFQ:
Source:DigiKey
Part No:XB5S2B2L2
Stock:27
Inv Date:06-08-2026
Price: Unit price: $434.83
Buy/RFQ:
Part No:XB5S2B2L2
Stock:6
Inv Date:06-09-2026
Price: Unit price: $434.82
Buy/RFQ:
Part No:XB5S2B2L2
Stock:13
Inv Date:06-08-2026
Price: Unit price: $465.71
Buy/RFQ:
Part No:XB5S2B2L2
Stock:0
Inv Date:06-08-2026
Price: Unit price: $434.83
Buy/RFQ:
Part No:XB5S2B2L2
Stock:0
Inv Date:06-08-2026
Price: Unit price: $434.83
Buy/RFQ:

Schneider Electric XB5S2B2L2 Biometric Security Switch Specifications:

  • Mounting diameter: 22 mm (0.87 in)
  • Enclosure material: Polyamide PA66
  • Bezel material: Dark grey plastic
  • Connection: Pre-wired cable, 3 x 0.34 mm², 2 m (6.56 ft)
  • Operating voltage: 20-30 V DC, rated 24 V AC/DC
  • Output type: PNP, 200 mA maximum switching current
  • Residual voltage: 1V in closed state
  • Current consumption: <= 70 mA no-load
  • Temperature range: Storage -25°C to 70°C, Operation -5°C to 50°C
  • Protection ratings: IP65 front, IP20 rear
  • Environmental standards: IEC 61000-6-2, IEC 61000-6-4, UL, CSA
  • Vibration resistance: +/- 3mm at 5-9 Hz, IEC 60068-2-6
  • Shock resistance: 50 g for 11 ms, IEC 60068-2-27
  • Weight: 0.37 lbs (0.17 kg)
  • Dimensions: Diameter 22 mm, depth approximately 16 mm

Buy the Schneider Electric XB5S2B2L2 – Reliable Biometric Security Switch for Industrial Applications

Enhance your security setup with this biometric security switch, featuring fingerprint recognition, IP65 protection, and reliable PNP output. Perfect for industrial materials handling, it supports up to 200 users with quick, dependable access control. Its compact polyamide enclosure ensures durability and easy installation on various surfaces. With robust protection against environmental factors, reverse polarity, overload, and short-circuit, this switch provides peace of mind in demanding settings. Easily connect via pre-wired cable and operate within a broad temperature range for versatile use in industrial applications.

Buy Schneider Electric XB5S2B2L2 now and enhance security with a rugged biometric switch featuring fingerprint recognition for industrial environments.

Frequently Asked Questions

Where can I buy Schneider Electric XB5S2B2L2?

You can click on the BUY or RFQ button to purchase XB5S2B2L2 from an authorized Schneider Electric distributor.

How do I troubleshoot issues or seek technical support for part XB5S2B2L2?

You can download the XB5S2B2L2 datasheet or visit the Schneider Electric website for support.

Who is the manufacturer of XB5S2B2L2?

Schneider Electric
