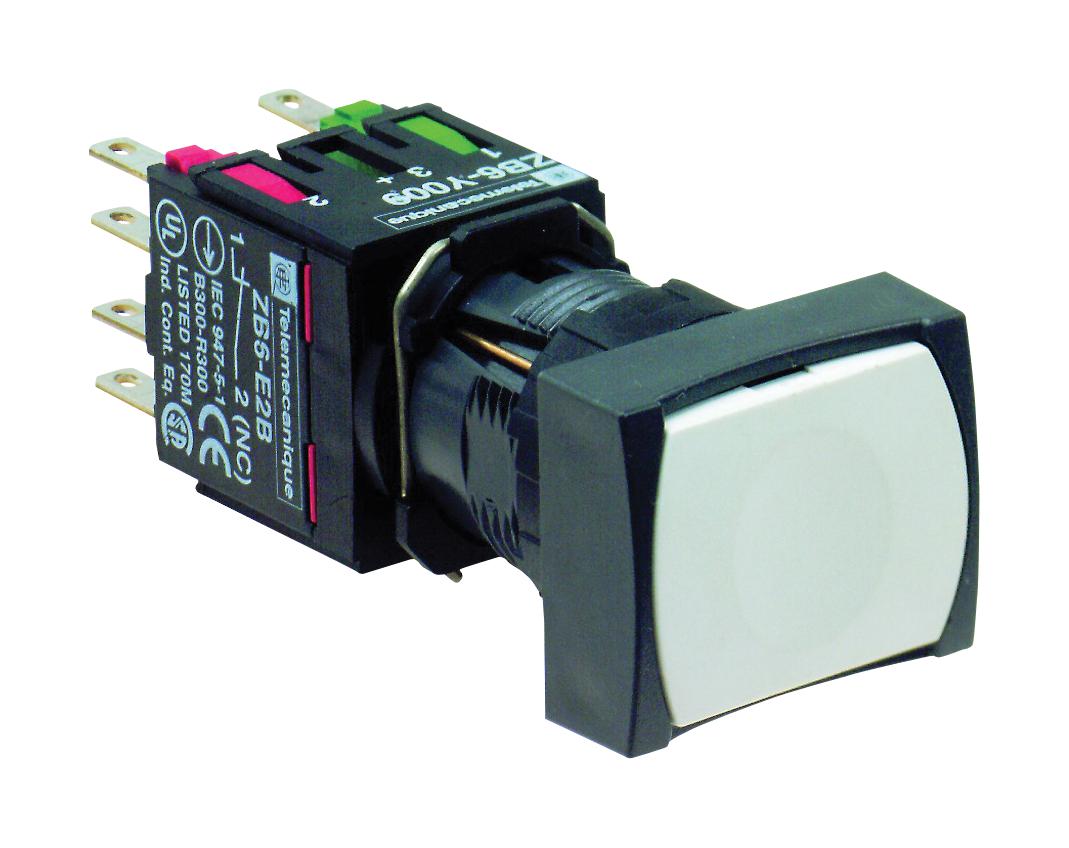

Schneider Electric XB6DA15B Industrial Pushbutton
The XB6DA15B is a white rectangular flush pushbutton designed for industrial control applications. This device features a spring return operator with 1 normally open (NO) and 1 normally closed (NC) contact, supporting both slow-break contact operation. It includes faston connectors for quick connection, a mounting diameter of 16 mm, and an overall size of 24 mm width, 18 mm height, and 57 mm depth. With a rated insulation voltage of 250 V and mechanical durability of 2,000,000 cycles, it is suitable for demanding control panel environments and safety applications.
Schneider Electric XB6DA15B Industrial Pushbutton Specifications:
- Shape of signaling unit: Rectangular
- Head: White flush, unmarked
- Mounting diameter: 16 mm (0.63 in)
- Overall dimensions: Width 24 mm, Height 18 mm, Depth 57 mm
- Contacts: 1NO+1NC, slow-break operation
- Connection: Faston connectors, 2.8 x 0.5 mm
- Operating Travel: 1 mm NO, 2 mm NC, Total 3.5 mm
- Operating Force: 3.5 N NO, 4.5 N NC
- Mechanical Durability: 2,000,000 cycles
- Contact Material: Silver alloy (Ag/Ni)
- Rated Insulation Voltage: 250 V
- Protection Class: IP65, NEMA 13/4X
- Ambient Temperature (operating): -25°C to +70°C
- Shock Resistance: 30g, 18ms, IEC 60068-2-27
- Vibration Resistance: +/- 3mm, 2-500 Hz, IEC 60068-2-6
Buy the Schneider Series XB6 Pushbutton: XB6DA15B
Purchase the Schneider Series XB6DA15B pushbutton online today for your control panels and safety systems. This durable, IP65-rated device offers reliable operation with a sealed design, supporting 1 NO and 1 NC contacts. With faston connectors and a 16 mm mounting diameter, it's suitable for demanding industrial environments. Its long mechanical lifespan of 2 million cycles, combined with a compact rectangular shape, makes it perfect for maintenance-free operation, simplifying panel assembly while ensuring safety and performance.
Order your Schneider Series XB6DA15B safety pushbutton today and ensure reliable industrial control operations with its robust design and quick connections.
Frequently Asked Questions
Where can I buy Schneider Electric XB6DA15B?
You can click on the BUY or RFQ button to purchase XB6DA15B from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part XB6DA15B?
You can download the XB6DA15B datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of XB6DA15B?
Schneider Electric
