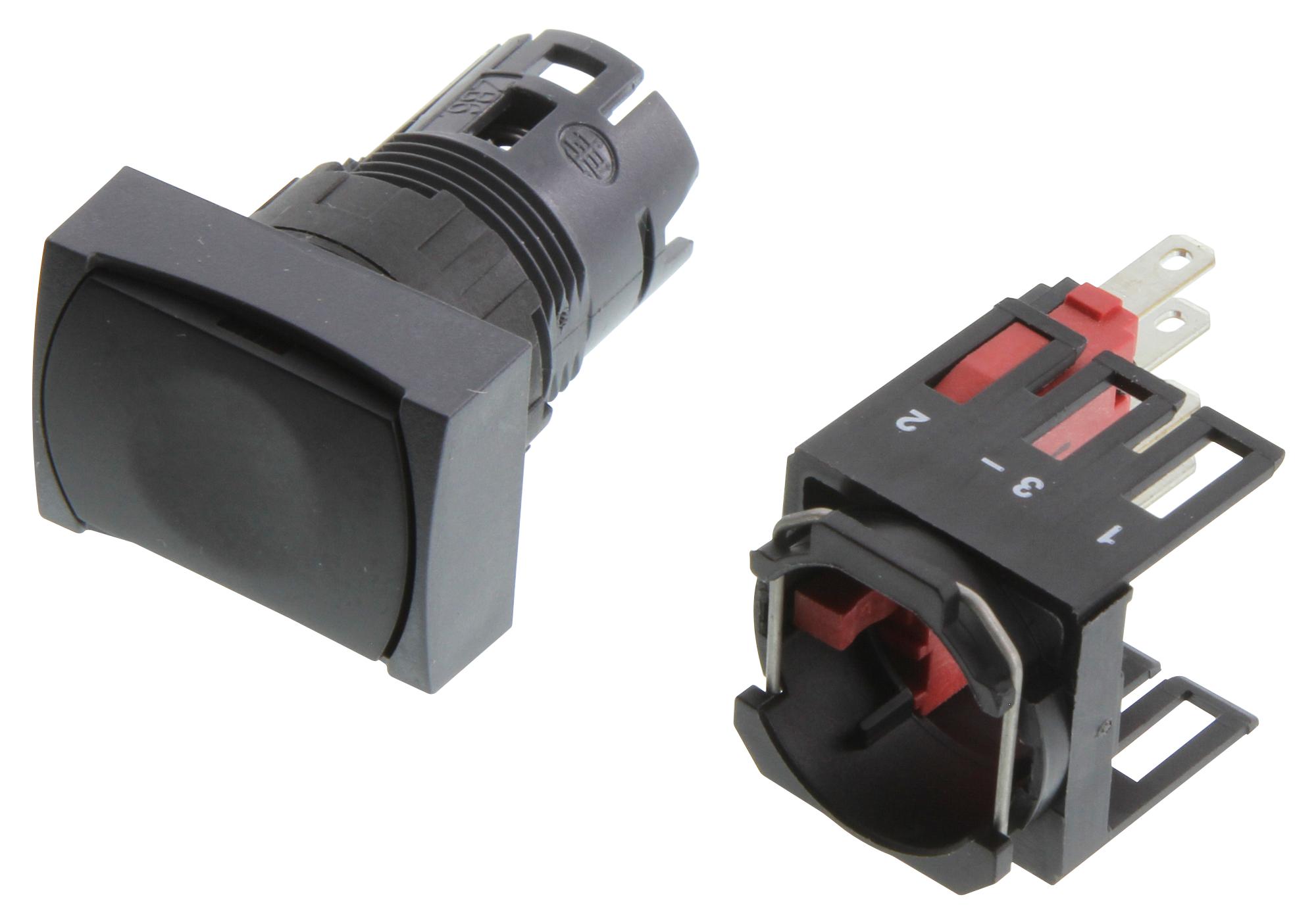

Schneider Electric XB6DA22B Industrial Pushbutton
The XB6DA22B is a black rectangular flush pushbutton with spring return operation, designed for industrial control panels. Featuring a 16 mm mounting diameter, it integrates a crisp, unmarked operator profile with a 1 NC contact configuration and silver alloy contacts for reliable switching. It withstands up to 2 million mechanical cycles and operates within -25°C to 70°C. Certified with IP65 protection and UL, CSA, EN/IEC standards, it offers durability, safety, and ease of installation in various automation and control applications.
Schneider Electric XB6DA22B Industrial Pushbutton Specifications:
- Shape of signaling unit: Rectangular
- Bezel material: Plastic
- Mounting diameter: 0.63 in (16 mm)
- Overall width: 0.94 in (24 mm)
- Overall height: 0.71 in (18 mm)
- Overall depth: 2.24 in (57 mm)
- Connection: Faston connectors, 2.8 x 0.5 mm
- Contact type: 1 NC, silver alloy (Ag/Ni)
- Contact operation: Slow-break
- Operating travel: 0.08 in (2 mm) NC, 0.14 in (3.5 mm) total
- Operating force: 4.5 N NC, 2 million cycles durability
- Rated insulation voltage: 250 V
- Rated impulse withstand voltage: 4 kV
- Rated operational current: 3 A at 120 V AC, 1.5 A at 240 V AC
- Protection class: Class II IEC 61140
- IP degree of protection: IP65
- Temperature range for operation: -25°C to 70°C
- Vibration resistance: ±3 mm at 2-500 Hz
- Shock resistance: 30 g, 18 ms
- Certifications: UL, CSA, IEC, GOST, RoHS, WEEE
Buy the Schneider Electric Series Harmony XB6 Pushbutton: XB6DA22B
Order the Schneider Electric XB6DA22B today for your automation projects. This durable, IP65-rated rectangular pushbutton features silver alloy contacts and a spring return mechanism, perfect for industrial control systems. Its robust design withstands over 2 million cycles, ensuring long-lasting performance. Easy to install with 16 mm mounting, it meets UL, CSA, and IEC standards for safety and reliability. Enhance your control panels with this high-quality, environmentally compliant pushbutton designed for demanding environments.
Get Schneider Electric XB6DA22B today—built for durability and reliable switching in industrial control panels.
Frequently Asked Questions
Where can I buy Schneider Electric XB6DA22B?
You can click on the BUY or RFQ button to purchase XB6DA22B from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part XB6DA22B?
You can download the XB6DA22B datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of XB6DA22B?
Schneider Electric
