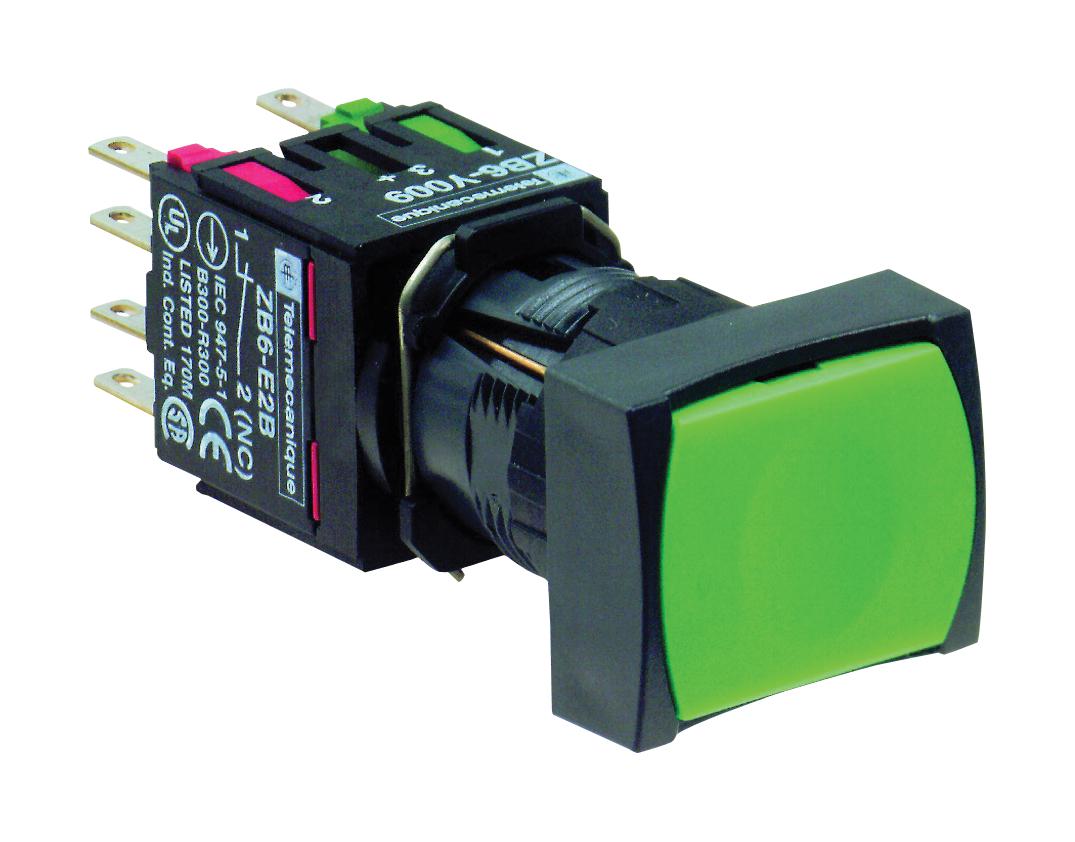

Schneider Electric XB6DA35B Pushbutton
The XB6DA35B is a green rectangular flush pushbutton designed for industrial control panels. It features 1NO + 1NC contacts with a slow-break operation, faston terminals, and a 16 mm mounting diameter. Suitable for any operating position, it offers high durability with up to 2 million mechanical cycles, and is compliant with international standards including IEC 60947-1 and UL. The pushbutton provides reliable electrical performance with a rated insulation voltage of 250 V and a rated operational current of 3 A. Its IP65 rating ensures protection against dust and water, making it ideal for harsh environments.
Schneider Electric XB6DA35B Pushbutton Specifications:
- Shape of signaling unit: Rectangular
- Bezel material: Plastic
- Mounting diameter: 0.63 in (16 mm)
- Overall width: 0.94 in (24 mm)
- Overall height: 0.71 in (18 mm)
- Overall depth: 2.24 in (57 mm)
- Contacts type: 1NO+1NC, Slow-break operation
- Contact material: Silver alloy (Ag/Ni)
- Connection terminals: Faston connectors, 2.8 x 0.5 mm
- Operating position: Any position
- Operating travel: 0.14 in (3.5 mm)
- Operating force: 3.5 N (NO), 4.5 N (NC)
- Mechanical durability: 2,000,000 cycles
- Rated insulation voltage: 250 V
- Rated operational current: 3 A at 120 V AC, 1.5 A at 240 V AC
- Electrical durability: 1,000,000 cycles at 230 V
- Protection class: IP65
- Ambient operating temperature: -25°C to +70°C
- Standards: IEC 60947-1, UL 508, CSA, JIS
- Certification: UL, CSA, CCC, GOST
Buy the Schneider Series XB6 Pushbutton: XB6DA35B
Order the Schneider XB6DA35B pushbutton online today for reliable operation in industrial environments. Its IP65 protection ensures durability against dust and water, while its high mechanical and electrical cycle ratings offer long service life. Ideal for control panels requiring quick, safe activation. With a compact 16 mm mounting diameter and easy connection terminals, this pushbutton is suitable for a wide range of applications. Enhance your control system with this robust, high-performance pushbutton available for direct purchase online, ensuring prompt delivery and consistent quality.
Get Schneider XB6DA35B today—built for industrial control and long-lasting durability.
Frequently Asked Questions
Where can I buy Schneider Electric XB6DA35B?
You can click on the BUY or RFQ button to purchase XB6DA35B from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part XB6DA35B?
You can download the XB6DA35B datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of XB6DA35B?
Schneider Electric
