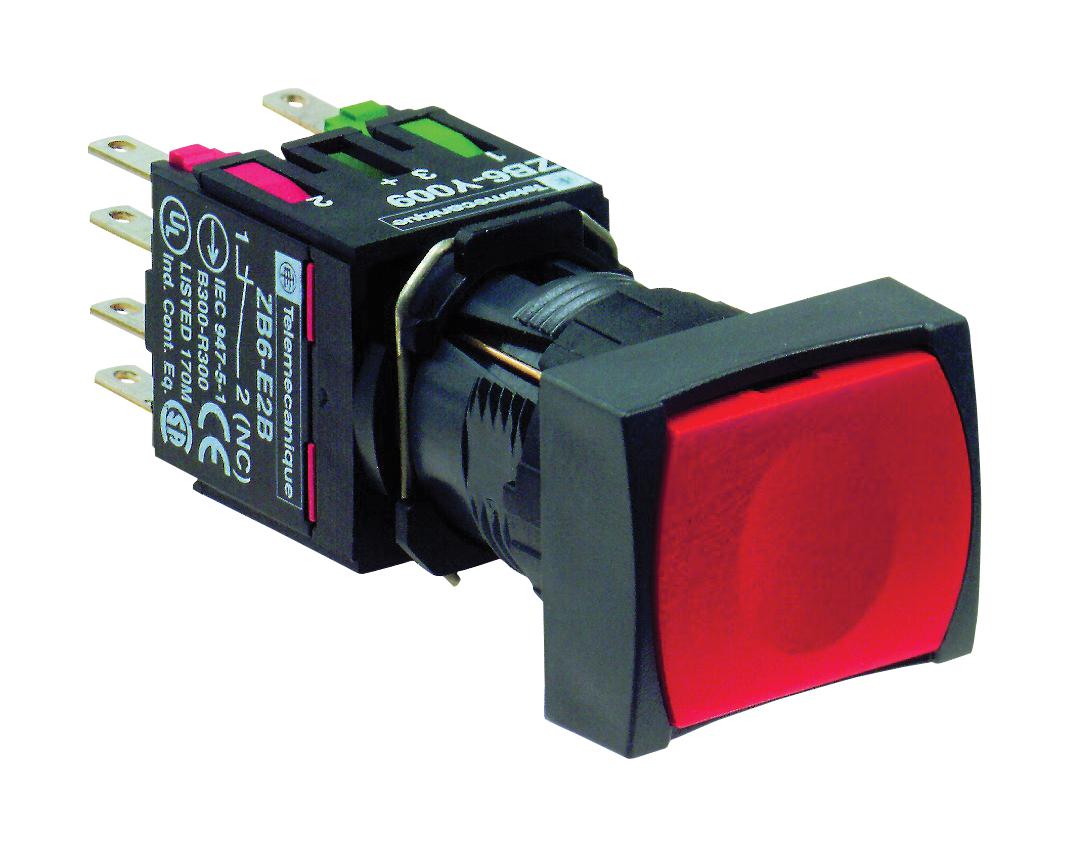

Schneider Electric XB6DA45B Pushbutton Control Switch
The XB6DA45B is a red rectangular flush pushbutton with spring return, featuring 1NO+1NC contacts with slow-break operation. Suitable for control panels, it has a mounting diameter of 16 mm and IP65 protection for durability in industrial environments. The pushbutton is designed with a plastic bezel, measures approximately 24 mm wide, 18 mm high, and 57 mm deep. It operates reliably in temperature ranges from -25°C to 70°C, with a mechanical durability of 2,000,000 cycles, making it ideal for demanding automation and control applications. Certifications include UL, CSA, GOST, and compliance with IEC standards.
Schneider Electric XB6DA45B Pushbutton Control Switch Specifications:
- Shape of signaling unit: Rectangular
- Mounting diameter: 16 mm (0.63 in)
- Overall width: 24 mm (0.94 in)
- Overall height: 18 mm (0.71 in)
- Overall depth: 57 mm (2.24 in)
- Bezel material: Plastic
- Contacts: 1NO+1NC, slow-break
- Contact material: Silver alloy (Ag/Ni)
- Operating force: 3.5 N NO, 4.5 N NC
- Mechanical durability: 2,000,000 cycles
- Operating temperature: -25°C to 70°C (-13°F to 158°F)
- Ingress Protection: IP65 according to IEC 60529
- Standards: IEC 60947-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14
- Rated insulation voltage: 250 V
- Electrical durability: 1,000,000 cycles
- Vibration resistance: +/- 3 mm, 2-500 Hz
- Shock resistance: 30 g for 18 ms, 50 g for 11 ms
Buy the Buy Schneider XB6DA45B Part Number XB6DA45B Online
Purchase the Schneider XB6DA45B pushbutton online today and enhance your control system with this reliable, durable, and IP65-rated rectangular pushbutton switch. Designed for industrial use, it features a 16 mm mounting diameter, silver alloy contacts, and a spring return mechanism for dependable operation. Its robust construction ensures long-lasting performance, withstanding over 2 million cycles and operating efficiently in temperature ranges from -25°C to 70°C. Easy to install, certified for safety, and compliant with international standards, this pushbutton is an excellent choice for automation projects.
Order your Schneider XB6DA45B Series pushbutton today and give your control panels the reliable operation they deserve, with robust IP65 protection and long-lasting durability.
Frequently Asked Questions
Where can I buy Schneider Electric XB6DA45B?
You can click on the BUY or RFQ button to purchase XB6DA45B from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part XB6DA45B?
You can download the XB6DA45B datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of XB6DA45B?
Schneider Electric
