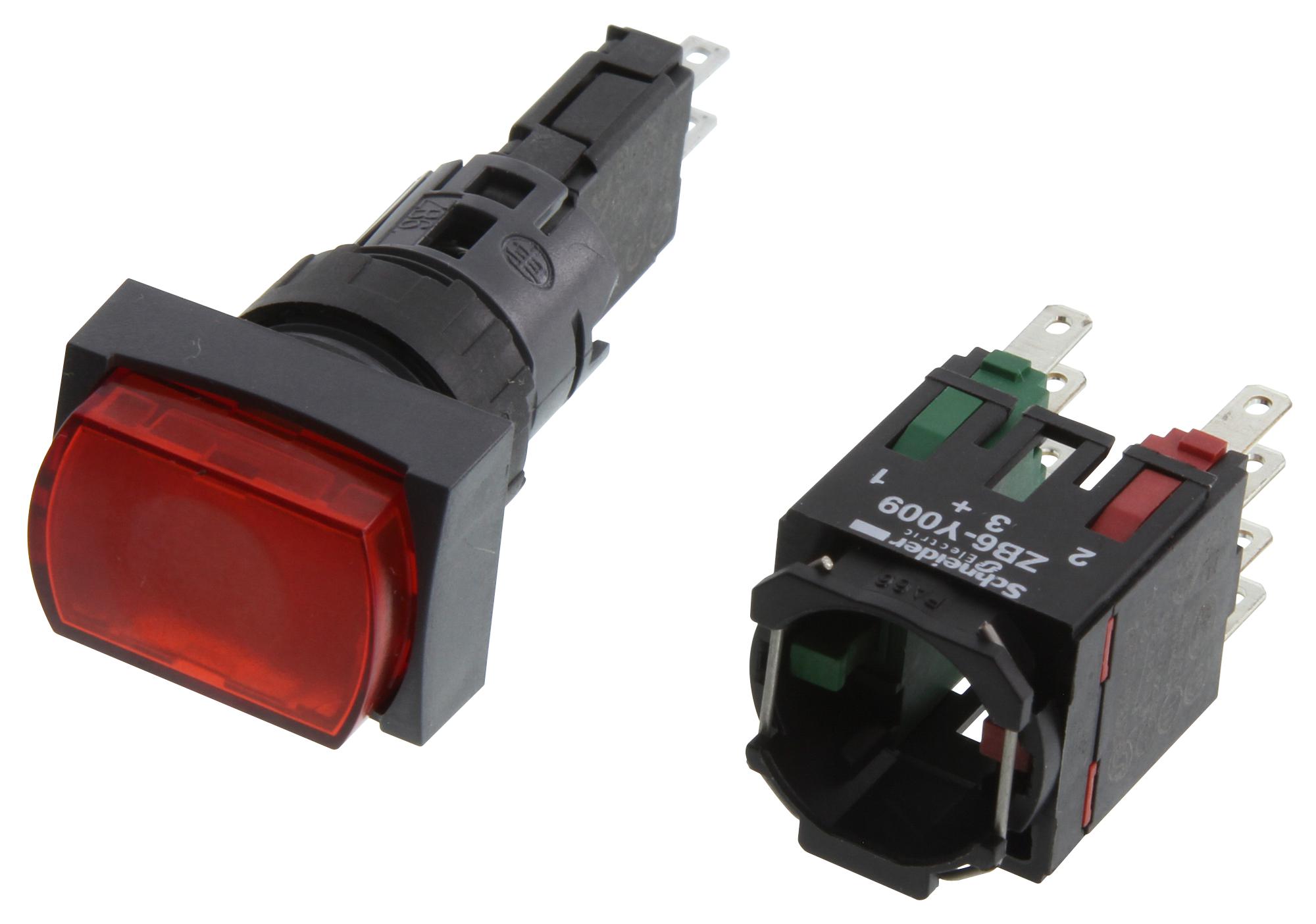

Schneider Electric XB6DE4B5B Industrial Control Push-Button
This complete illuminated push-button features a red projecting operator head with a spring return type, designed for industrial control systems. It includes 1 normally open and 1 normally closed contact with slow-break operation, integral LED light source, and faston connectors for quick wiring. Rated for 12-24 V AC/DC, it offers reliable performance with high durability of 1,000,000 cycles, making it suitable for demanding applications. The device complies with international standards and certifications, including UL, CSA, and IEC, and features robust IP65 protection for environmental resilience.
Schneider Electric XB6DE4B5B Industrial Control Push-Button Specifications:
- Range of product: Harmony XB6
- Device short name: XB6
- Bezel material: Plastic
- Mounting diameter: 0.63 in (16 mm)
- Shape of signaling unit head: Rectangular
- Type of operator: spring return
- Operator profile: Red projecting, unmarked
- Contacts type and composition: 1NO+1NC
- Contact operation: Slow-break
- Connections - terminals: Faston connectors 2.8 x 0.5 mm
- Light source: LED, Integral LED
- [Us] rated supply voltage: 12…24 V AC/DC
- CAD overall width: 0.94 in (24 mm)
- CAD overall height: 0.71 in (18 mm)
- CAD overall depth: 2.40 in (61 mm)
- Operating position: Any position
- Positive opening: With EN/IEC 60947-5-1 appendix K
- Operating travel: 0.04 in (1 mm)
- Operating force: 3.5 N NO, 4.5 N NC
- Contacts material: Silver alloy (Ag/Ni)
- Short-circuit protection: 6 A cartridge fuse gG
- [Ui] rated insulation voltage: 250 V
- [Uimp] rated impulse withstand voltage: 4 kV
- Electrical durability: 1,000,000 cycles
- Electrical reliability: IEC 60947-5-4 compliant
- Signaling type: Steady
- Supply voltage limits: 6...30 VAC/DC
- Current consumption: 15 mA
- IP degree of protection: IP65
- NEMA degree of protection: NEMA 13, 4, 4X
- Standards: IEC 60947-1, IEC 60947-5-5, EN/IEC 61000-4-2, 4-3, 4-4, 4-5
- Certifications: CSA, UL, GOST
- Vibration resistance: +/- 3 mm 2…500 Hz
- Shock resistance: 30 gn (18 ms), 50 gn (11 ms)
- Resistance to fast transients: 2 kV IEC 61000-4-4
- Environmental conditions: -40 to +70°C storage, -25 to +70°C operating
- Material: Plastic bezel, silver alloy contacts
- Weight: 0.06 lb (0.025 kg)
- Standards compliance: IEC, EN, CSA, UL
- Disposal: Waste management per European Union regulations
Buy the Harmony XB6 – Reliable Control Button for Industrial Applications
Secure your operations with this industrial control push-button, rated for 12-24 V AC/DC, with LED illumination, IP65 protection, and high durability of 1 million cycles. Designed for demanding environments, it features a red projecting operator, 1NO+1NC contacts with slow-break operation, integral LED light source, and faston connectors for quick wiring. Certified by UL, CSA, IEC, and suitable for any mounting position. Perfect for automation, process control, and machinery control with robust environmental resilience.
Order your Harmony XB6 series XB6DE4B5B today and give your projects the dependable quality they deserve in control systems.
