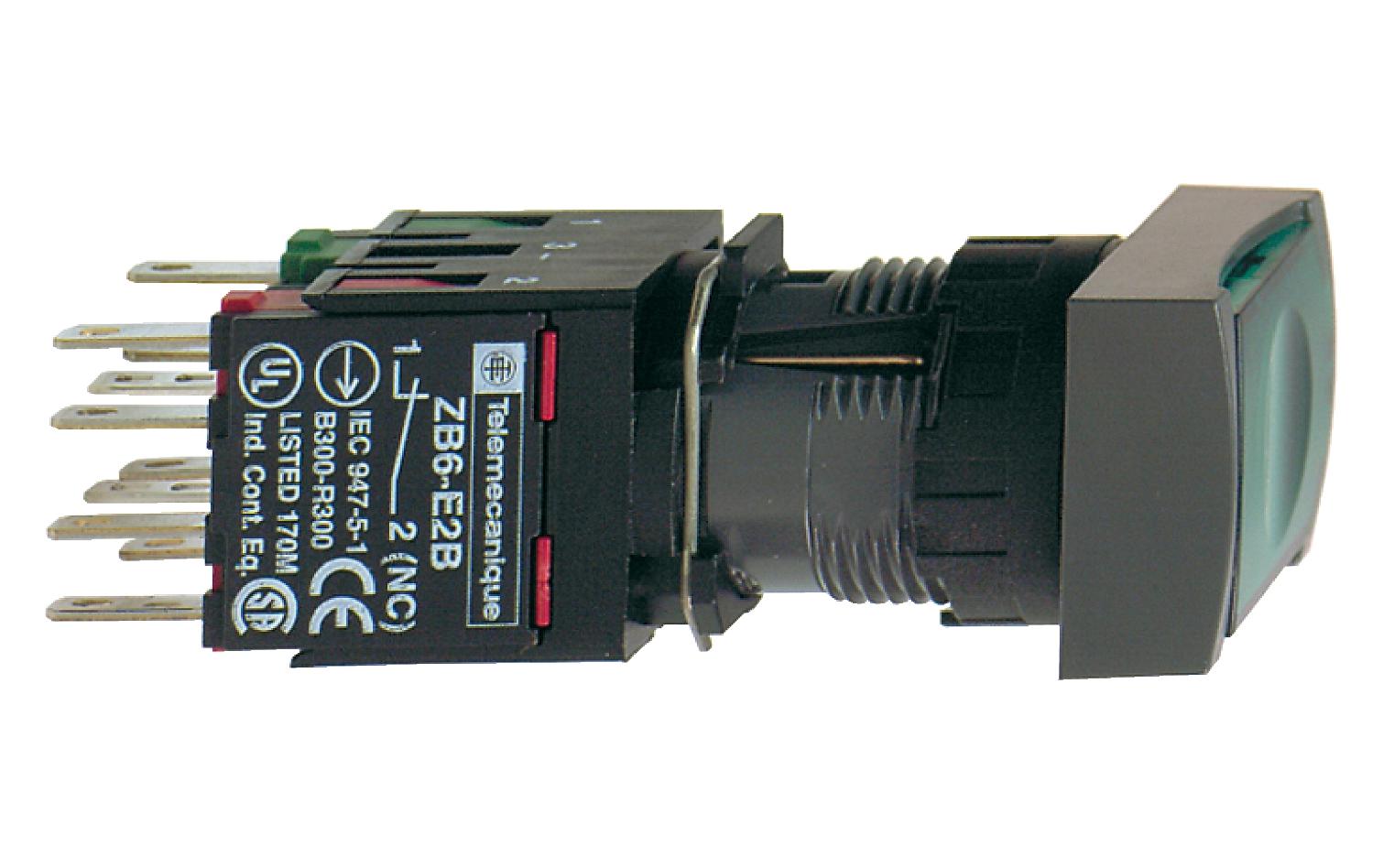

Schneider Electric XB6DF3B1B Rectangular Pushbutton
The XB6DF3B1B is a green rectangular flush illuminated pushbutton with a 16 mm mounting diameter, featuring a latching operator profile, LED light source, and faston connectors. It offers reliable operation with a contact operation of slow-break, silver alloy contacts, and a rated supply voltage of 12-24 V AC/DC. Designed for industrial control panels, it has an IP65 protection rating, NEMA 4X/13 compliance, and can withstand over a million cycles. Certified by CSA, UL, and GOST standards, it resists vibration, shocks, and electromagnetic disturbances, ensuring durability in harsh environments.
Schneider Electric XB6DF3B1B Rectangular Pushbutton Specifications:
- Mounting Diameter: 16 mm (0.63 in)
- Height: 18 mm (0.71 in)
- Maximum Width: 24 mm (0.94 in)
- Depth: 57 mm (2.24 in)
- Bezel Material: Plastic
- Shape: Rectangular
- Contacts: 1NO, silver alloy (Ag/Ni), slow-break operation
- Light Source: Integral LED
- Rated Supply Voltage: 12-24 V AC/DC
- Electrical Durability: 1,000,000 cycles
- Ingress Protection: IP65
- Standards: UL, CSA, EN/IEC 60947-5-1 and 5-5, JIS C 4520
- Shock Resistance: 30 gn, 50 gn
- Vibration Resistance: +/- 3 mm 2-500 Hz
- Operating Temperature: -25°C to 70°C (-13°F to 158°F)
- NEMA Ratings: 13, 4, 4X
- Environmental Certifications: RoHS, REACH, WEEE
Buy the Buy Schneider Electric XB6DF3B1B Part Number XB6DF3B1B Online
Purchase the Schneider Electric XB6DF3B1B rectangular pushbutton online today and ensure robust, reliable control for your industrial applications. Featuring a 16 mm mounting diameter, this illuminated pushbutton includes integral LED lighting, a latching operator profile, and faston connectors. It’s rated for 12-24 V AC/DC, offers IP65 protection, and withstands over a million cycles for long-lasting performance. Certified by UL, CSA, and other standards, it resists shocks, vibrations, and electromagnetic interference, making it ideal for demanding environments. Secure your control panel needs with this high-quality component now.
Order your Schneider Electric Series XB6 XB6DF3B1B today and enhance your control panels with this durable, LED-lit pushbutton for reliable operation.
Frequently Asked Questions
Where can I buy Schneider Electric XB6DF3B1B?
You can click on the BUY or RFQ button to purchase XB6DF3B1B from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part XB6DF3B1B?
You can download the XB6DF3B1B datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of XB6DF3B1B?
Schneider Electric
