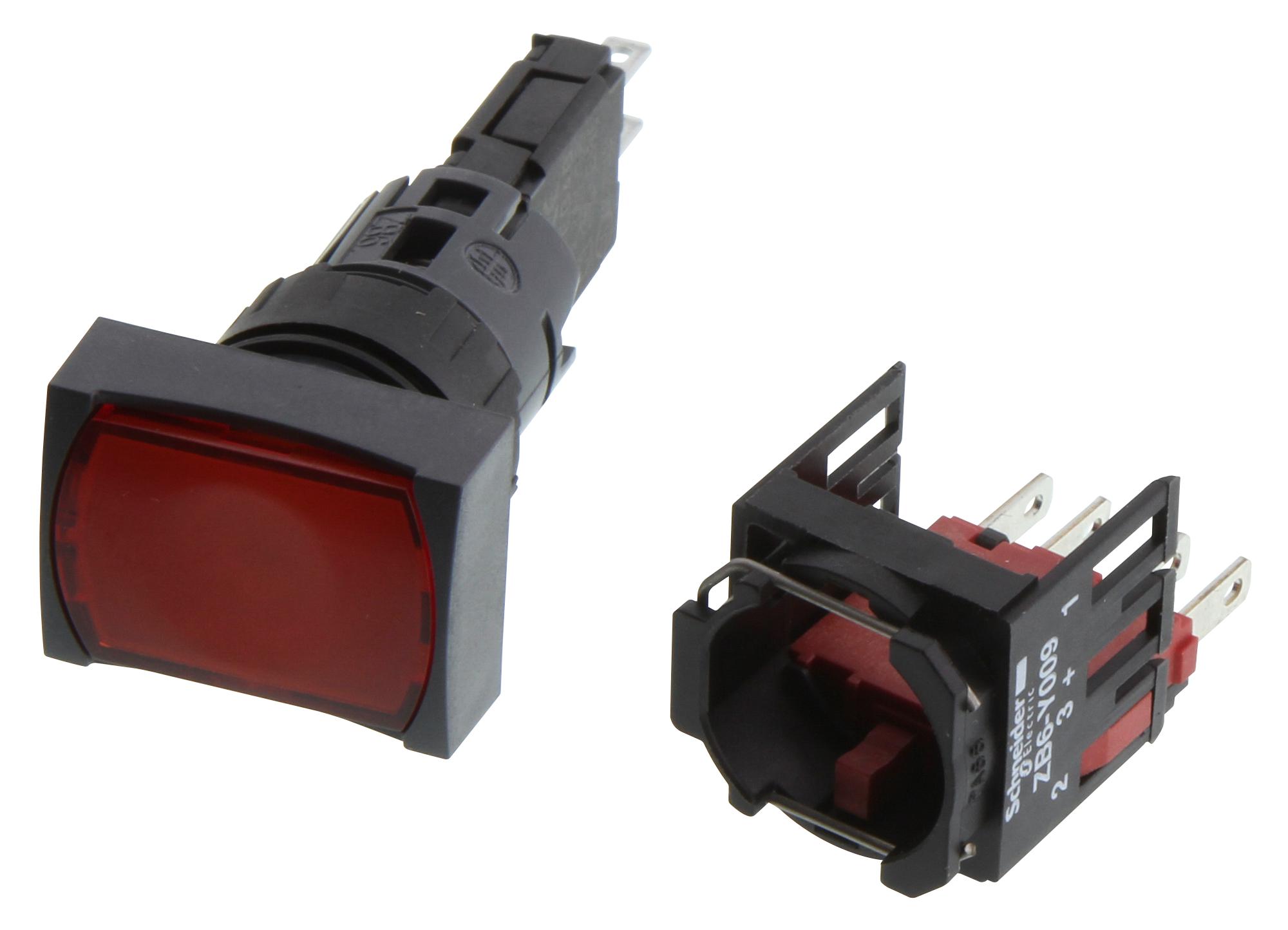

Schneider Electric XB6DW4B2B Industrial Pushbutton
The XB6DW4B2B is a high-quality, illuminated rectangular pushbutton designed for control panels requiring reliable switching with LED lighting. It features a spring-return operator with a red flush head, 1 NC contact, and faston connectors for quick wiring. Suitable for industrial applications, it offers IP65 protection, operating within -25°C to 70°C, and complies with IEC standards. Its robust construction ensures durability with a life cycle of 1 million cycles, making it ideal for automation and machinery control systems that demand visibility and dependable performance.
Schneider Electric XB6DW4B2B Industrial Pushbutton Specifications:
- Type: Complete illuminated push-button
- Shape of signaling unit: Rectangular
- Bezel material: Plastic
- Mounting diameter: 16 mm (0.63 in)
- Head profile: Red flush, unmarked
- Contacts type: 1 NC, slow-break, silver alloy (Ag/Ni)
- Connection terminals: Faston connectors, 2.8 x 0.5 mm
- Light source: Integral LED
- Rated supply voltage: 12...24 V AC/DC
- Overall width: 24 mm (0.94 in)
- Overall height: 18 mm (0.71 in)
- Overall depth: 57 mm (2.24 in)
- Operating position: Any
- Protection class: IP65, NEMA 13, 4, 4X
- Temperature range for operation: -25°C to 70°C
- Vibration resistance: +/-3 mm (2-500 Hz)
- Shock resistance: 30-50 g depending on test
- Electrical durability: 1,000,000 cycles
- Standards: EN/IEC 60947-5-5, 1, 14; JIS C 4520; CSA C22.2 No 14
- Certifications: UL, CSA, CCC, GOST
- Environmental: IP65, NEMA 13/4/4X, RoHS, WEEE compliant
- Maximum operating temperature: 70°C
- Minimum operating temperature: -25°C
Buy the Schneider Electric Series Harmony XB6 Illuminated Pushbutton: XB6DW4B2B
Discover the Schneider Electric Harmony XB6 series illuminated pushbutton, a durable, IP65-rated control device featuring LED lighting, a spring return, and a 1 NC contact. Its robust construction withstands harsh environments, providing reliable operation with a lifecycle of 1 million cycles. Easy to install with faston connectors and designed for panel mounting through a 16 mm diameter hole. Ideal for automation systems, machinery control, and panel applications requiring visibility, durability, and compliance with international standards. Order online and enhance your control system today.
Buy Schneider Electric XB6DW4B2B now and experience unmatched reliability and performance with durable LED illumination for industrial controls.
Frequently Asked Questions
Where can I buy Schneider Electric XB6DW4B2B?
You can click on the BUY or RFQ button to purchase XB6DW4B2B from an authorized Schneider Electric distributor.
How do I troubleshoot issues or seek technical support for part XB6DW4B2B?
You can download the XB6DW4B2B datasheet or visit the Schneider Electric website for support.
Who is the manufacturer of XB6DW4B2B?
Schneider Electric
