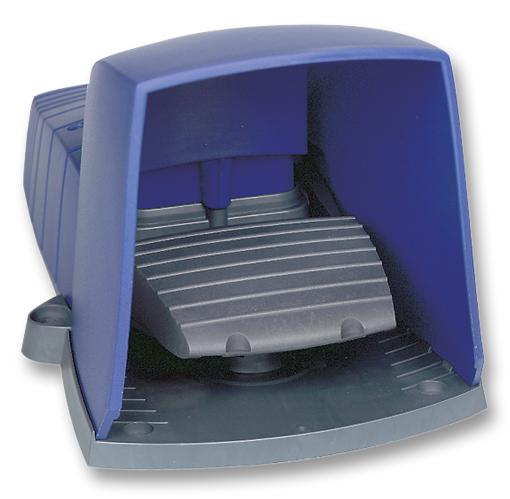

Schneider-Electric XPEB311 Industrial Foot Switch
The plastic foot switch XPEB311 features a durable single foot operation with IP66 protection, making it suitable for harsh industrial environments. Equipped with a protective cover, it has two normally closed and two normally open contacts, rated for 3 A at 240 V AC-15 and 0.27 A at 250 V DC-13. It withstands up to 10 million mechanical cycles, incorporates screw clamp terminals, and conforms to multiple international standards. Designed for reliability and long-term use, it is ideal for industrial control and automation applications.
Schneider-Electric XPEB311 Industrial Foot Switch Specifications:
- Material: Plastic
- Protection Degree: IP66 conforming to IEC 60529
- Contacts: 2NC + 2NO, 1 step operation
- Rated Current: 3 A at 240 V AC-15, 0.27 A at 250 V DC-13
- Mechanical Durability: 10,000,000 cycles
- Terminal Type: Screw clamp, <= 1 x 2.5 mm² or <= 2 x 1.5 mm²
- Rated Insulation Voltage: 300 V conforming to CSA, 500 V conforming to EN/IEC
- Impulse Withstand Voltage: 6 kV
- Vibration Resistance: 5 gn (10-500 Hz)
- Shock Resistance: 30 gn
- Ambient Temperature: -25°C to +70°C operational, -40°C to +70°C storage
- Product Weight: 0.69 kg
- Standards: NF E 09-031, UL, CSA
- Warranty: 18 months
Buy the Industrial Switch Corp XPEB311 – Reliable Foot Switch for Industrial Applications
Enhance your industrial control setup with the durable and reliable foot switch. The XPEB311 features a robust plastic construction with IP66 protection, ensuring excellent performance in tough environments. It has two NC and two NO contacts rated for 3 A at 240 V, capable of enduring over 10 million cycles. Easy to install with screw clamp terminals, this switch complies with international standards for safety and durability. Perfect for automation, machinery, and safety applications. Purchase online today for seamless integration into your system.
Buy Industrial Switch Corp XPEB311 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Schneider-Electric XPEB311?
You can click on the BUY or RFQ button to purchase XPEB311 from an authorized Schneider-Electric distributor.
How do I troubleshoot issues or seek technical support for part XPEB311?
You can download the XPEB311 datasheet or visit the Schneider-Electric website for support.
Who is the manufacturer of XPEB311?
Schneider-Electric
